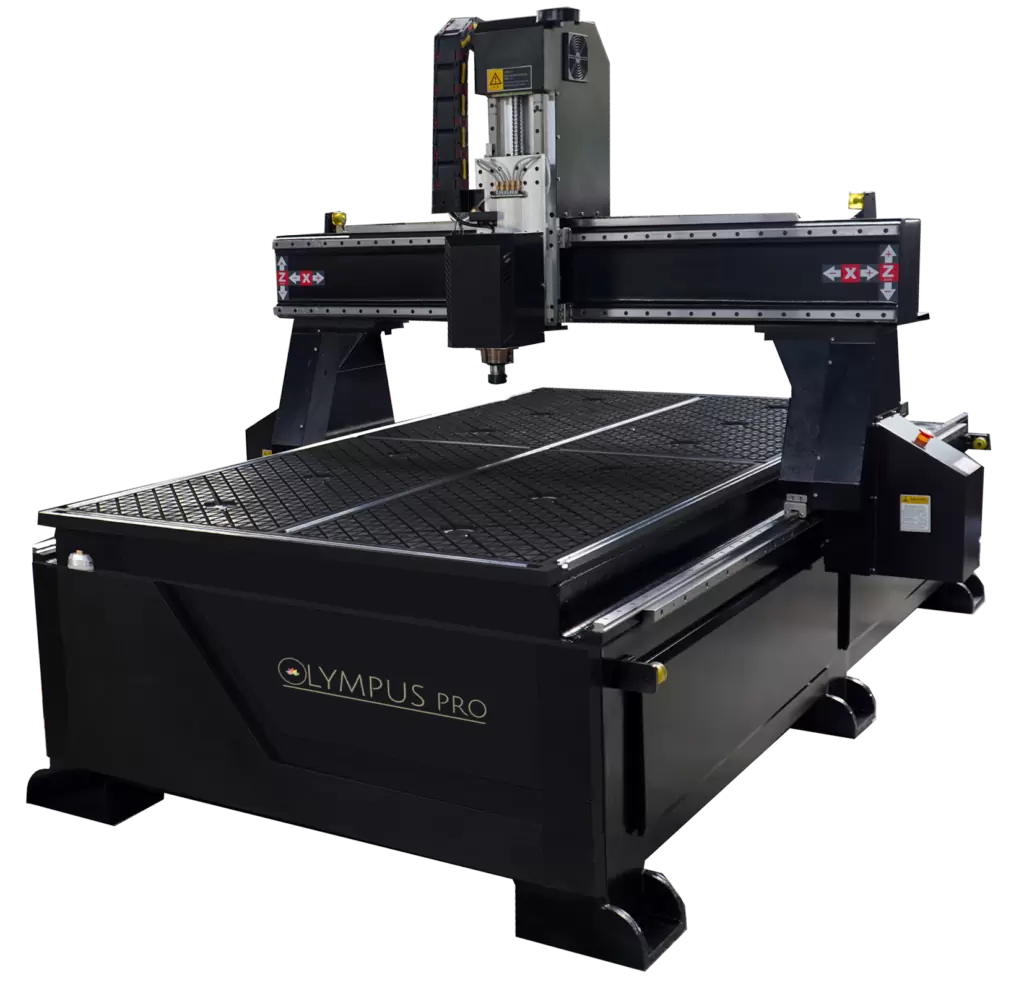

Olympus PRO CNC Router
We are pleased to introduce the NEW Olympus PRO CNC router. The Olympus PRO CNC router is a powerful manual tool change CNC machine which can be upgraded at a later date with an automatic tool change function.
Features
- 9kW Manual Tool Change
- Delta Servo Motors and Drives
- Robust and Strong
- Designed in the UK
- Easy-to-use Control System
- Powerful Suction
- Industrial
- Affordable
Expect
- 9kW Quick-Release Air-Cooled Spindle
- Full Extraction System
- Opus PRO Control System​
- Enhanced Vacuum Matrix Bed
- Standard and Bespoke Sizes
- Delivery, Installation and Training
Want to see the Olympus PRO CNC machine in action?
To see the Olympus PRO CNC machine in action, let us know and we can organise a demo on a day that works for you.
Specifications
| Models | Bed Size | Machine Size | Weight |
| Olympus PRO 1313 | 1300 x 1300 mm | W2222 x L2310 x H2000 mm | 2,200kg |
| Olympus PRO 1325 | 1300 x 2500 mm | W2222 x L3410 x H2000 mm | 2,400kg |
| Olympus PRO 1530 | 1525 x 3050 mm | W2422 x L3910 x H2000 mm | 2,600kg |
| Olympus PRO 2030 | 2100 x 3050 mm | W2892 x L3910 x H2000 mm | 2,700kg |
| Olympus PRO 2040 | 2000 x 4000 mm | W2892 x L4910 x H2000 mm | 2,800kg |
| Olympus PRO 2060 | 2000 x 6000 mm | W2892 x L6910 x H2000 mm | 3,000kg |
| Bespoke Sizes | Available on request | Â | |
| Tool Change | Manual - Quick Release | Â | Â | ||
| Spindle | 9.0kW HQD | Â | Â | Â | Â |
| Spindle Speed | 24,000 rpm | Â | Â | Â | Â |
| Gantry Clearance | 300mm | Â | Â | Â | Â |
| Â | Â | Â | Â | Â | Â |
| Vacuum Bed | Olympus PRO 1313: | 5.5kW | Olympus PRO 2030: | 5.5kW x 2 | Â |
| Â | Olympus PRO 1325: | 5.5kW | Olympus PRO 2040: | 7.5kW x 2 | Â |
| Â | Olympus PRO 1530: | 7.5kW | Olympus PRO 2060: | 7.5kW x 2 | Â |
| Â | Â | Â | Â | Â | Â |
| Drives & Motors | Servo | Â | Â | Â | Â |
| Control System | Opus PRO | Â | Â | Â | Â |
| Extraction | 5.5kW | Â | Â | Â | Â |
| Inverter | Rexroth | Â | Â | Â | Â |
| Working Voltage | 3 Phase | Single Phase also available on request | ||||
Â
| Additional Attachments: | Additional Upgrades: | Â | Â | |
| Â | Â | Â | Â | Â |
| Oscillating Blade | Safety Features: | Light Barriers | Â | |
| Tangential Knife | Lubrication: | Automatic Lubrication | ||
| Creasing Wheel | Metal Cutting: | Mist Spray | Â | |
| CCD Camera System | Vacuum Pumps: | Upgrades Available | ||
| Rotary Device | Position Setting: | Laser Pointer | Â | |
| Drill Head | Â | Â | Â | Â |
| Â | Â | Â | Â | Â |
| **Please note, attachments must be ordered at the point of order and cannot be retrofitted. | ||||
The Olympus PRO comes with an upgraded 9kW HQD quick-release spindle, Servo motors and drives. More importantly, the linear automatic tool change can be fitted to the Olympus PRO CNC machine later. Therefore, the Olympus PRO CNC router is a future-proof CNC router with longevity in mind. It is also a very easy-to-use CNC router that caters to beginners and experienced users.
We appreciate each user has a different level of CNC routing experience; therefore, we organise the training program to suit each individual and their capabilities. In addition, our engineers professionally work with our customers giving precise and clear instructions.
Delivery, installation and training are inclusive with all of the Olympus PRO CNC routers. Additionally, extended warranties are also available, as well as annual servicing.
Finally, the Olympus PRO CNC router is an affordable CNC machine suitable for those who don’t want to break the bank without compromising quality, with prices starting at £16,000 plus vat.
As Standard
Driving technology
The Olympus PRO grows as your business needs grow, with the function to add the automatic tool change at a later date.
All Olympus PRO CNC machines come with the strong and accurate quick-release 9kW HQD for reliability and precision.
pricing
Would you like a full quotation for an Olympus PRO CNC Router?
Don't want to wait? Contact 0800 0560404
Routing and Cutting MDF
Cutting diBond
Routing Foamex
Our gallery

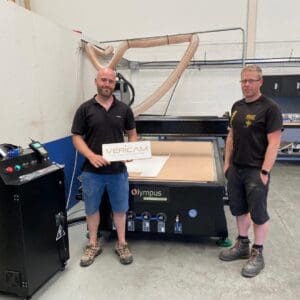

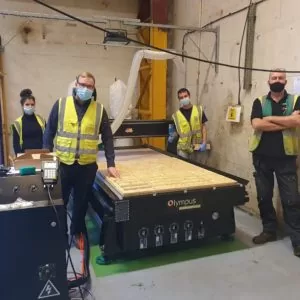

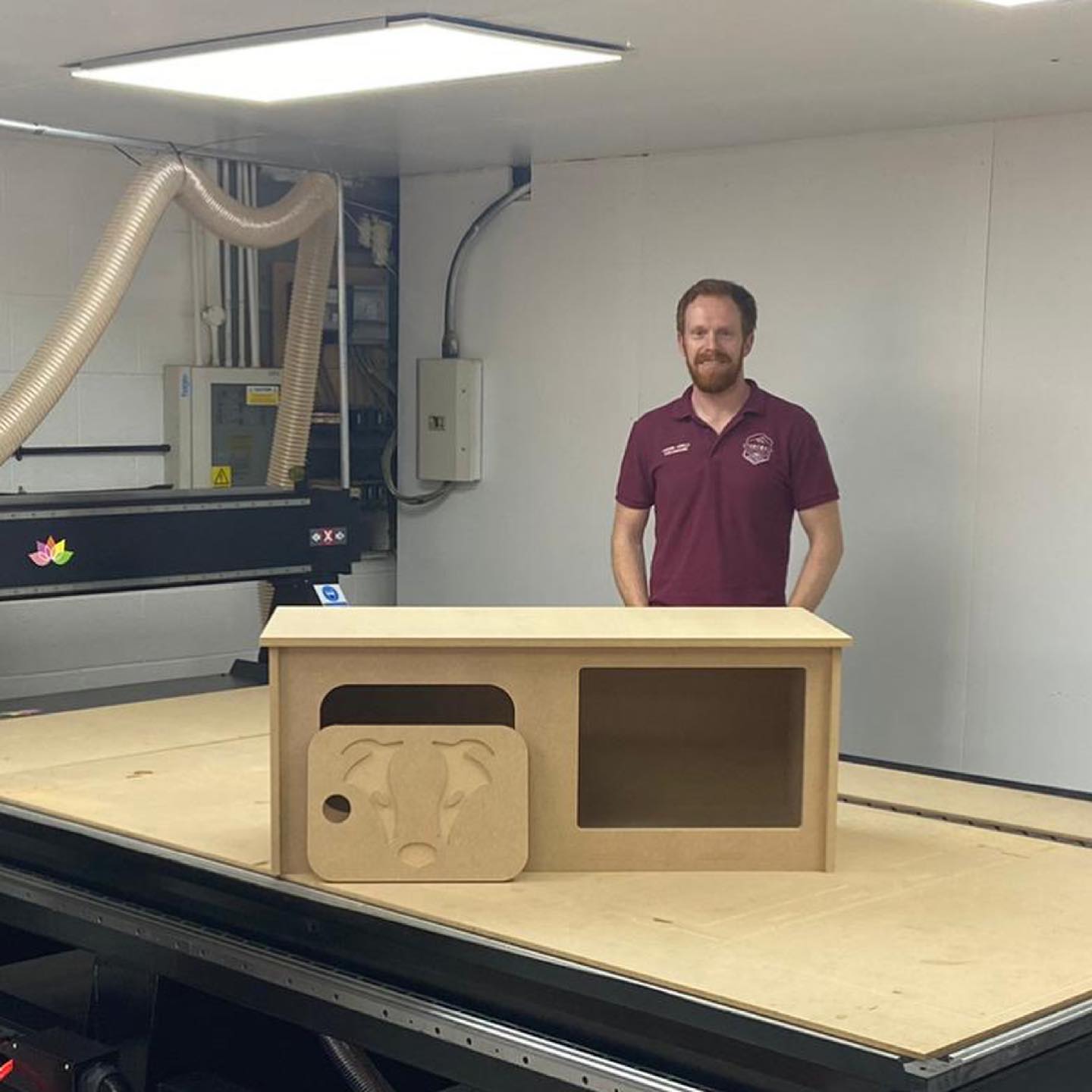

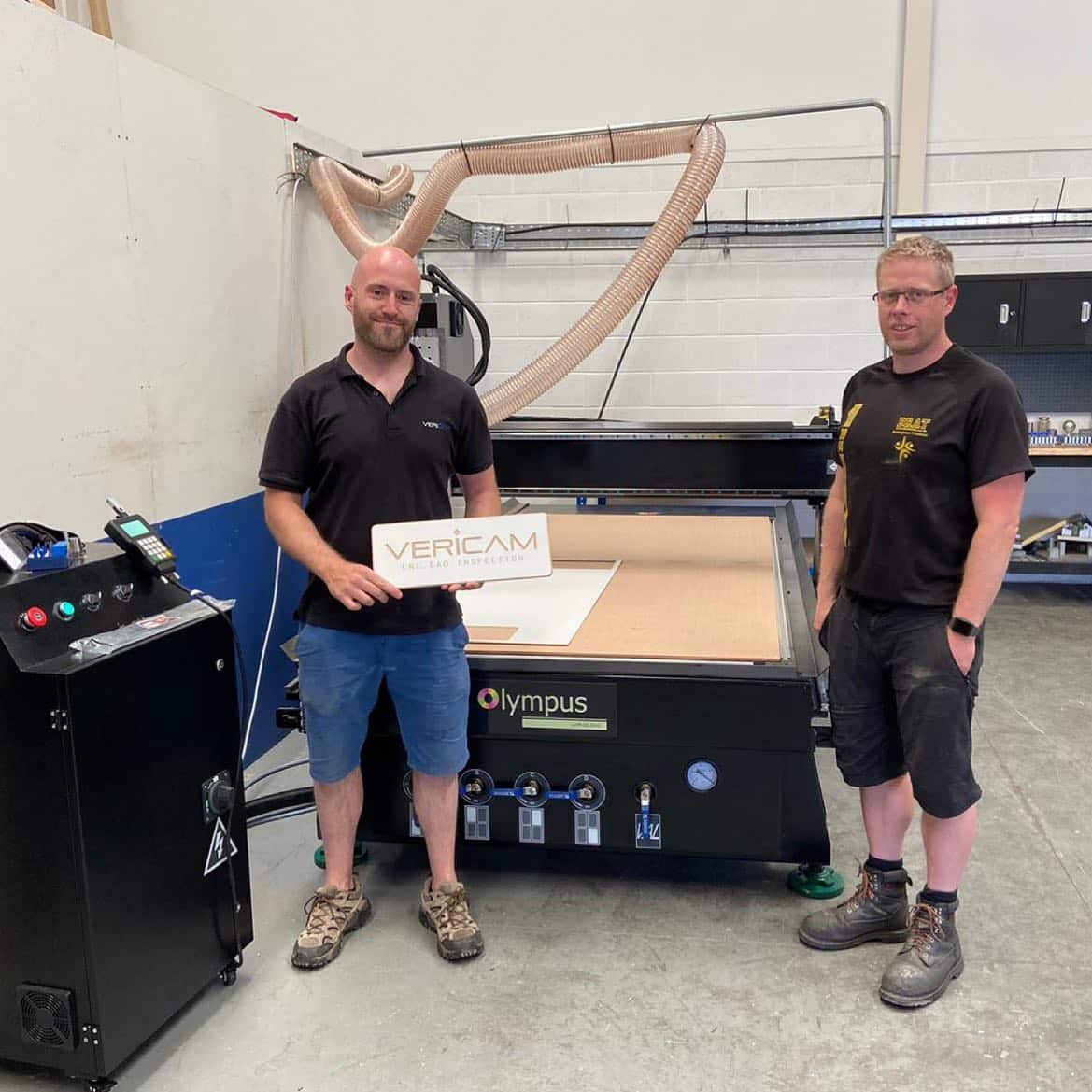

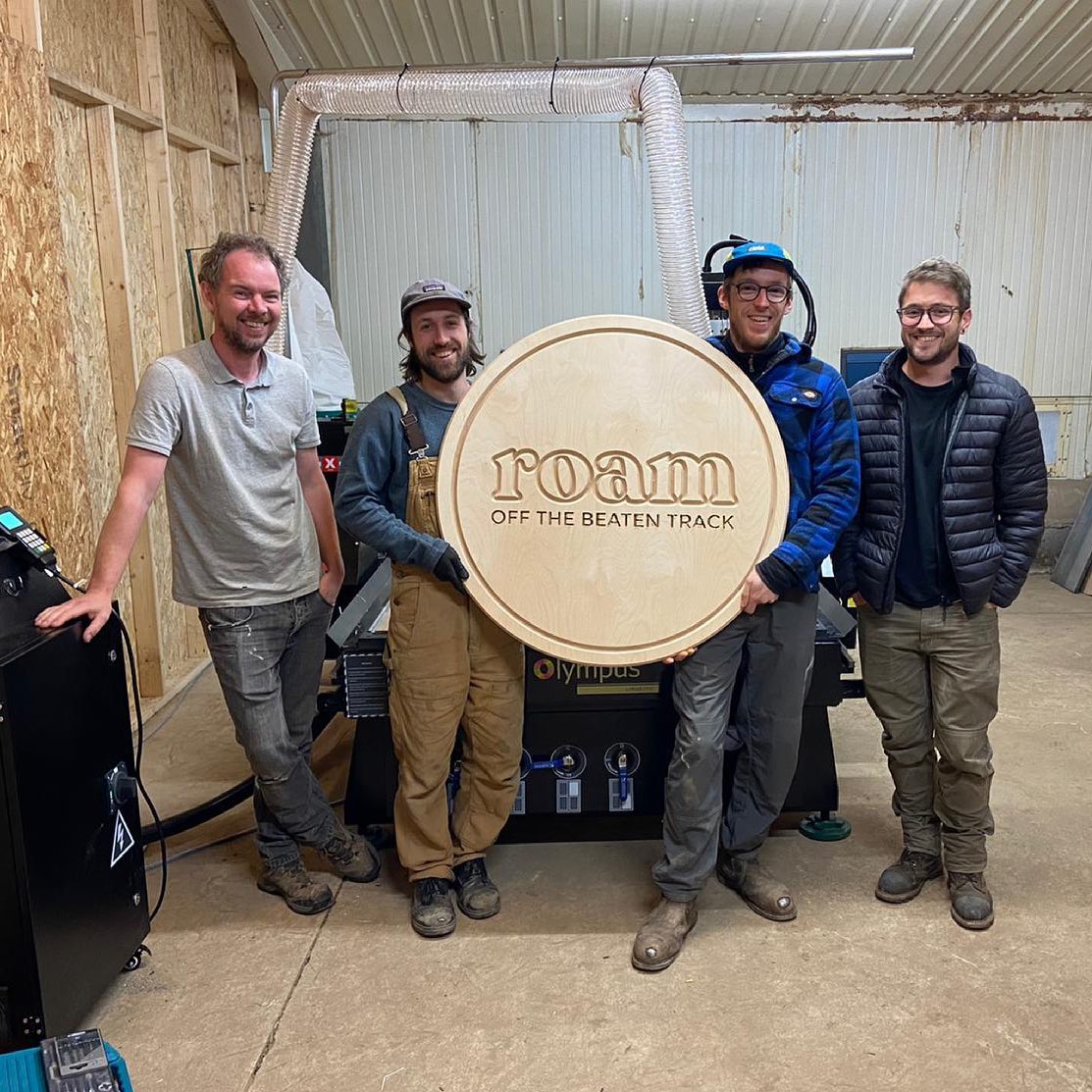

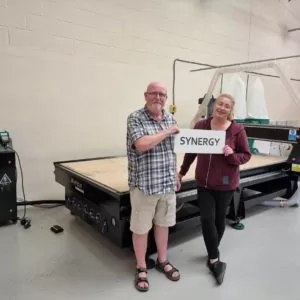

Recent Installs
The Olympus PRO CNC router is popular in many industries such as personalised gifts, foam, packaging, bespoke furniture, wooden garden furniture, plastic fabrication and many more.
