Olympus Select CNC Routers

Industrial bespoke CNC router for specialised industries

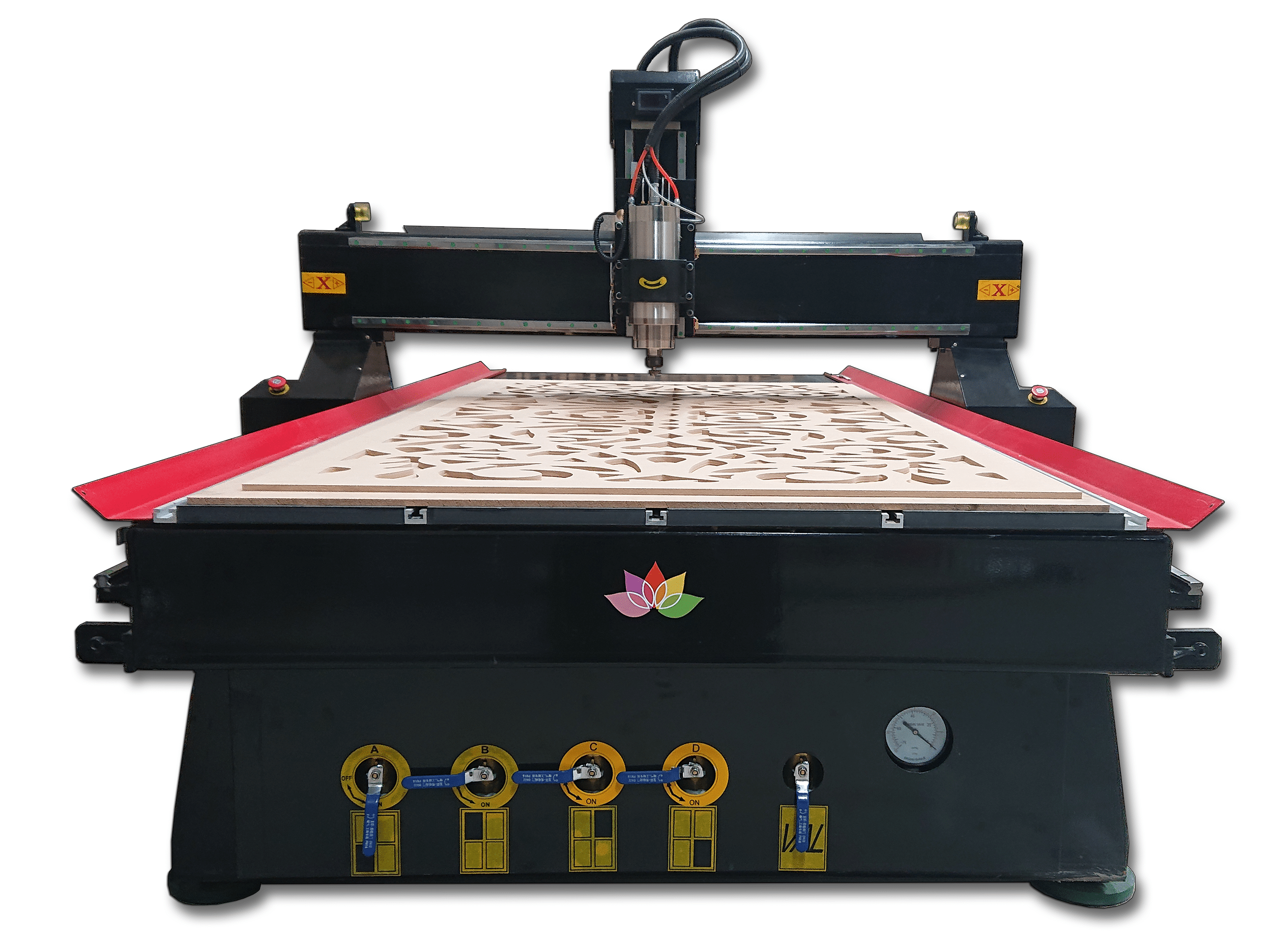

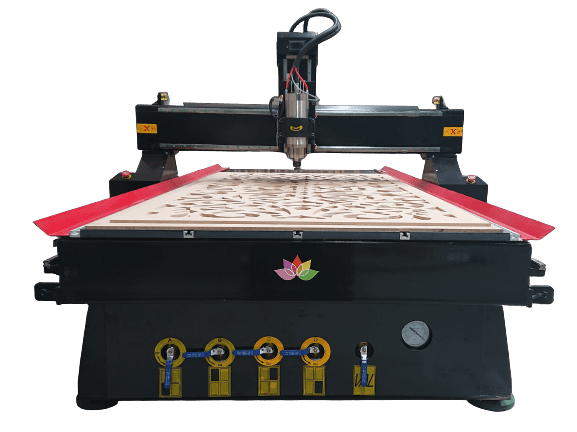

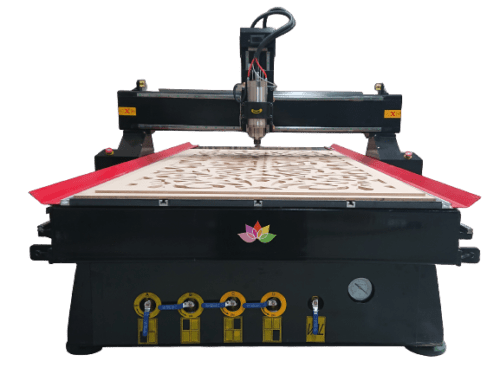

Olympus CNC Router

Available in bespoke sizes, along with our popular sizes:

1300×1300 | 1300×2500 | 1525×3050 | 2100×3050 | 2000×4000 | 2000×6000

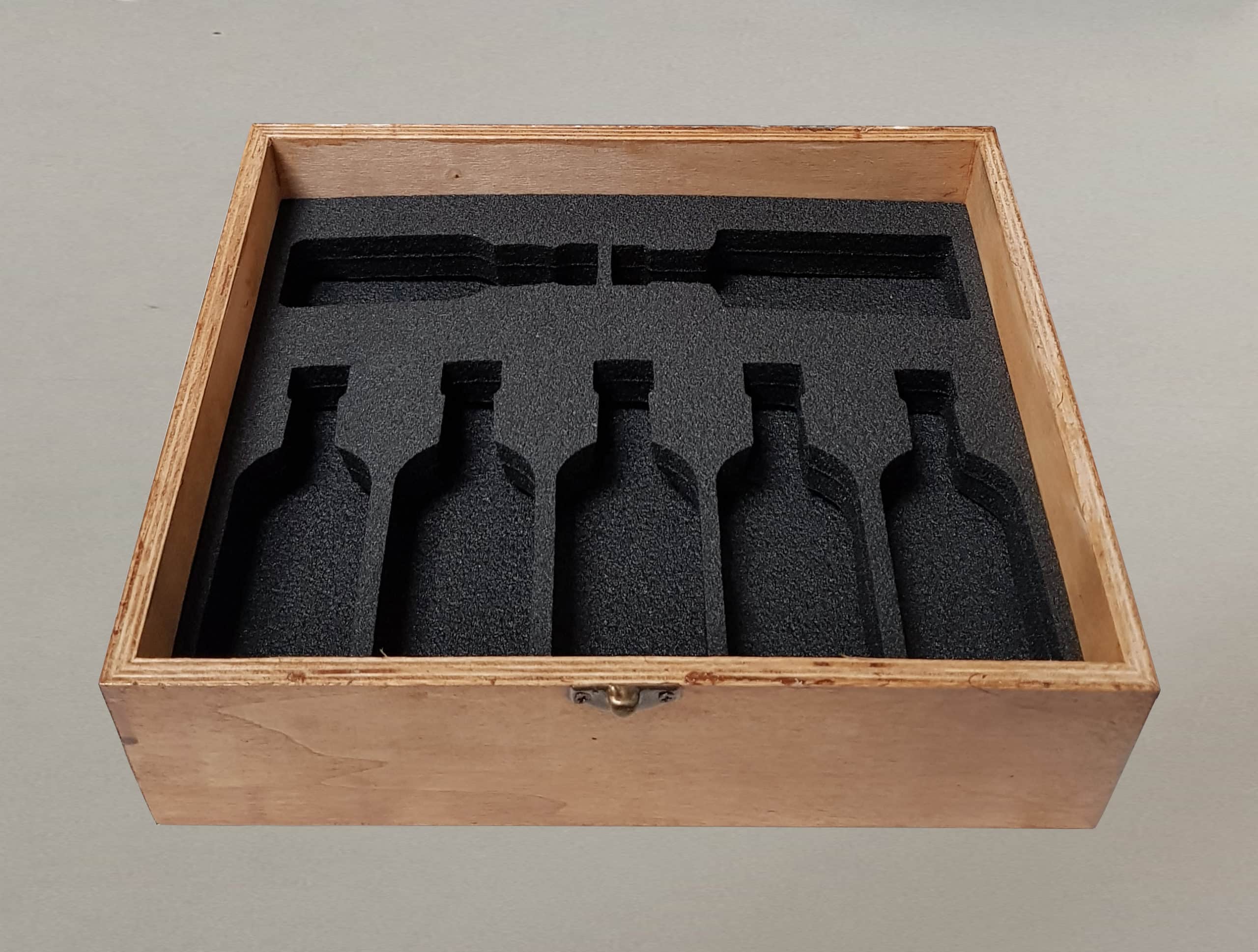

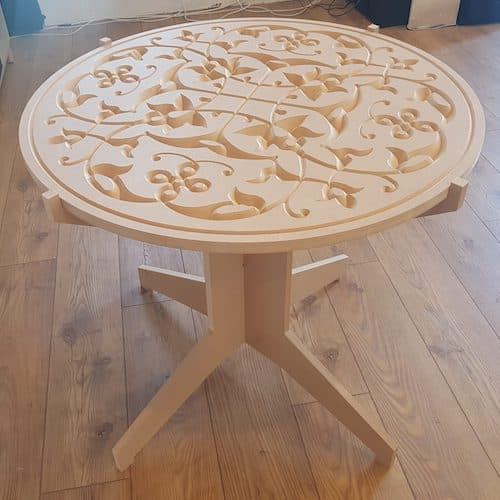

Table Router Sample

OVERVIEW

Gantry Height:  200mm as standard, with upgrades up to 900mm

Spindle Information:  24000rpm | 6kW water-cooled

Extraction System:  3kW twin bag extraction included

Control System:  Digit Signal Processor – DSP Controller

Inverter:  Taiwan DELTA

Drives & Motors:  Stepper drives and motors

XY Structure:  Helical rack and HIWIN linear bearing

Z Structure:  TBI MOTION ball screw and HIWIN linear bearing

Working Voltage: 415v three phase (single phase available)

Software: VCarve Pro | Aphacam

Inclusive:  Delivery, installation & full training

Warranty: 2 years full parts and labour – extended warranty available



OVERVIEW

Gantry Height:  200mm as standard, with upgrades up to 900mm

Spindle Information:  24000rpm | 6kW water-cooled

Extraction System:  3kW twin bag extraction included

Control System:  Digit Signal Processor – DSP Controller

Inverter:  Taiwan DELTA

Drives & Motors:  Stepper drives and motors

XY Structure:  Helical rack and HIWIN linear bearing

Z Structure:  TBI MOTION ball screw and HIWIN linear bearing

Working Voltage: 415v three phase (single phase available)

Software: VCarve Pro | Aphacam

Inclusive:  Delivery, installation & full training

Warranty: 2 years full parts and labour – extended warranty available



Choice of Select Specialist Attachment:

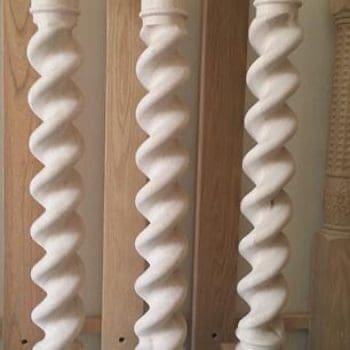

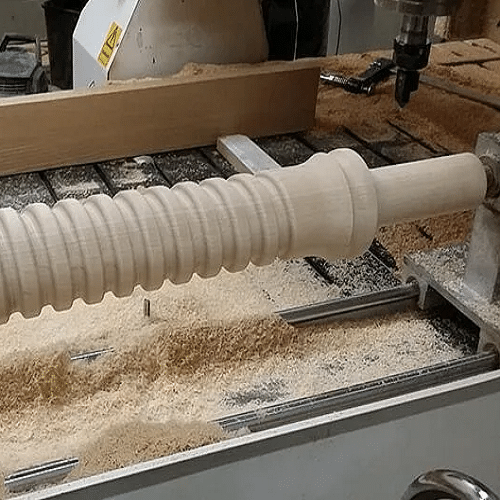

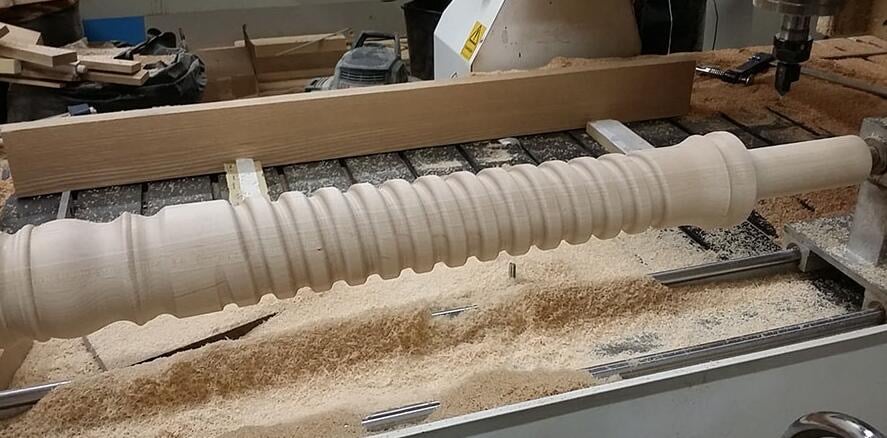

CCD camera | Oscillating blade | Tangential knife | Creasing wheel | Drill head | Rotary device

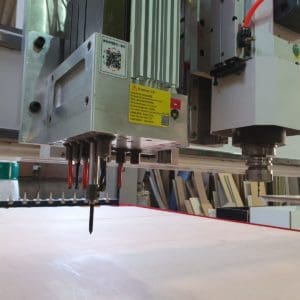

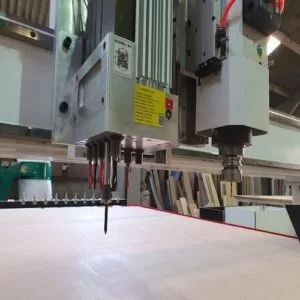

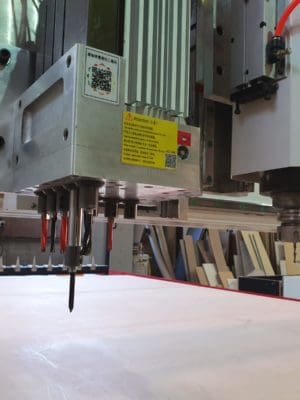

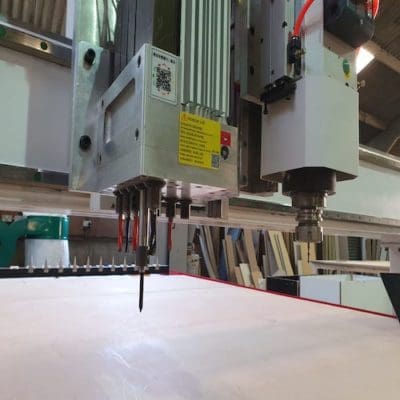

Drill Head

Drill Head – Multiple Drilling

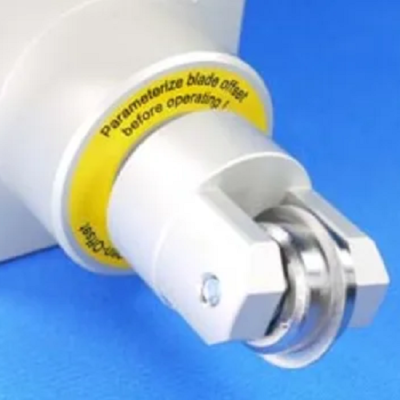

Creasing Wheel

Creasing Wheel – Packaging Creasing

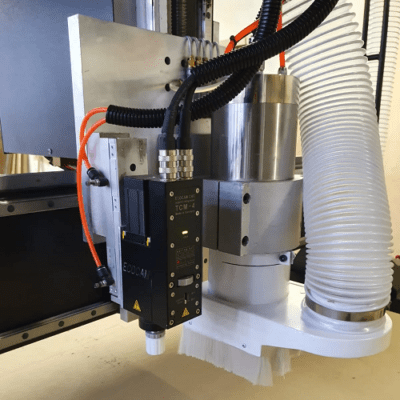

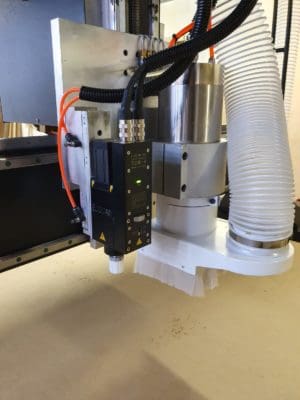

Tangential Knife

Tangential Knife

Tangential Knife

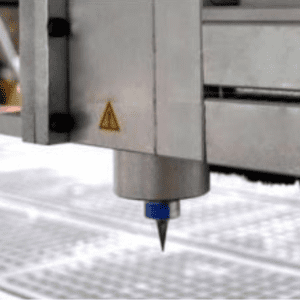

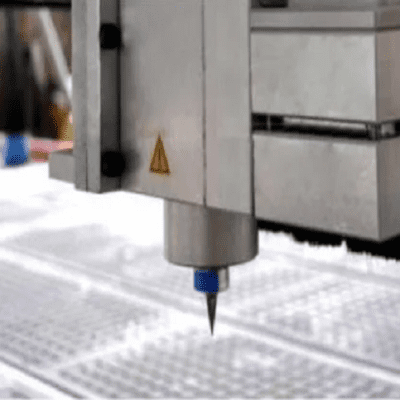

Oscillating Blade

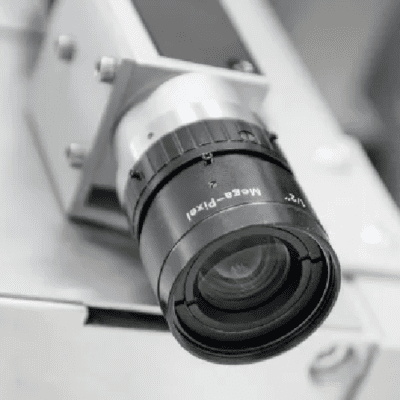

CCD Camera

CCD Camera System – Registration Marks

Oscillating blade

Perfect for:

MDF  ply   OSB   WOOD   Laminate  acrylic DiBond   rubber   flexiteek LEAD   Aluminium   foam

Corian  flexiglass    brass   VINYL Card   formica    Bakelite TRESPA   polycarbonate   UPVC

corrugated plastic    FOAMBOARD Leather   Polypropylene    ModelBoard VERMICULITE

polystyrene   Hard PVC   SOFT PVC   Fibreboard    Nylon Textiles

SUMMARY

The Olympus Select CNC router offers the same specification as the Olympus CNC, but with the ability to have one of the bespoke tool attachments, such as an oscillating blade, tangential knife, creasing wheel, drill head, rotary device or CCD camera system to sit next to the spindle.

The specialist attachments are suitable for cutting materials such as foam, gasket, mylar, leather, cardboard, card, rubber, silicon and textiles. Woodworkers can benefit from the drill head, which allows for various holes to be drilled in one process.

The Olympus Select CNC router can be fully tailored to best suit you and your individual machining needs.
