Laser Cutters
Introduction to Laser cutting & engraving machines
What is a laser cutting machine? A laser cutter is a way of cutting and engraving many materials by transmitting a beam through a series of mirrors and a lens.
Due to their affordability and ease of use, the Oculus laser cutters are ideal for many industries and many materials. With a range of sizes to choose from, the Oculus laser is suitable for the personalised gift market, through to aerospace engineering.
The Oculus laser cutters have excellent cutting and engraving techniques that allow designs in Photoshop, Illustrator, and CorelDraw to come to life. They also include a built-in database of pre-set parameters and settings for different materials and processes to encourage ease of use. The entire range is also compatible with Lightburn software.
All Oculus lasers include an extraction system and hose. The extraction hose is placed externally when the laser is in operation through a door, window or vent. However, we can also supply BOFA filtration units to extract directly should extraction outside not be suitable.

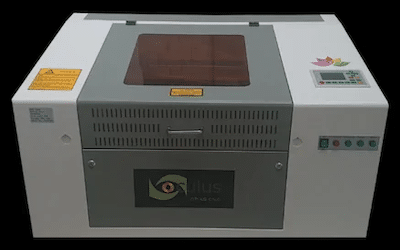

Oculus Benchtop Laser
The Oculus Benchtop Laser is a space-saving laser cutting machine perfect for education and the personalised gift market.
Oculus Free-Standing Laser
The Oculus Free-Standing Laser is the medium sized cutting and engraving laser suitable of cutting up to 20mm MDF, Acrylic and many more.

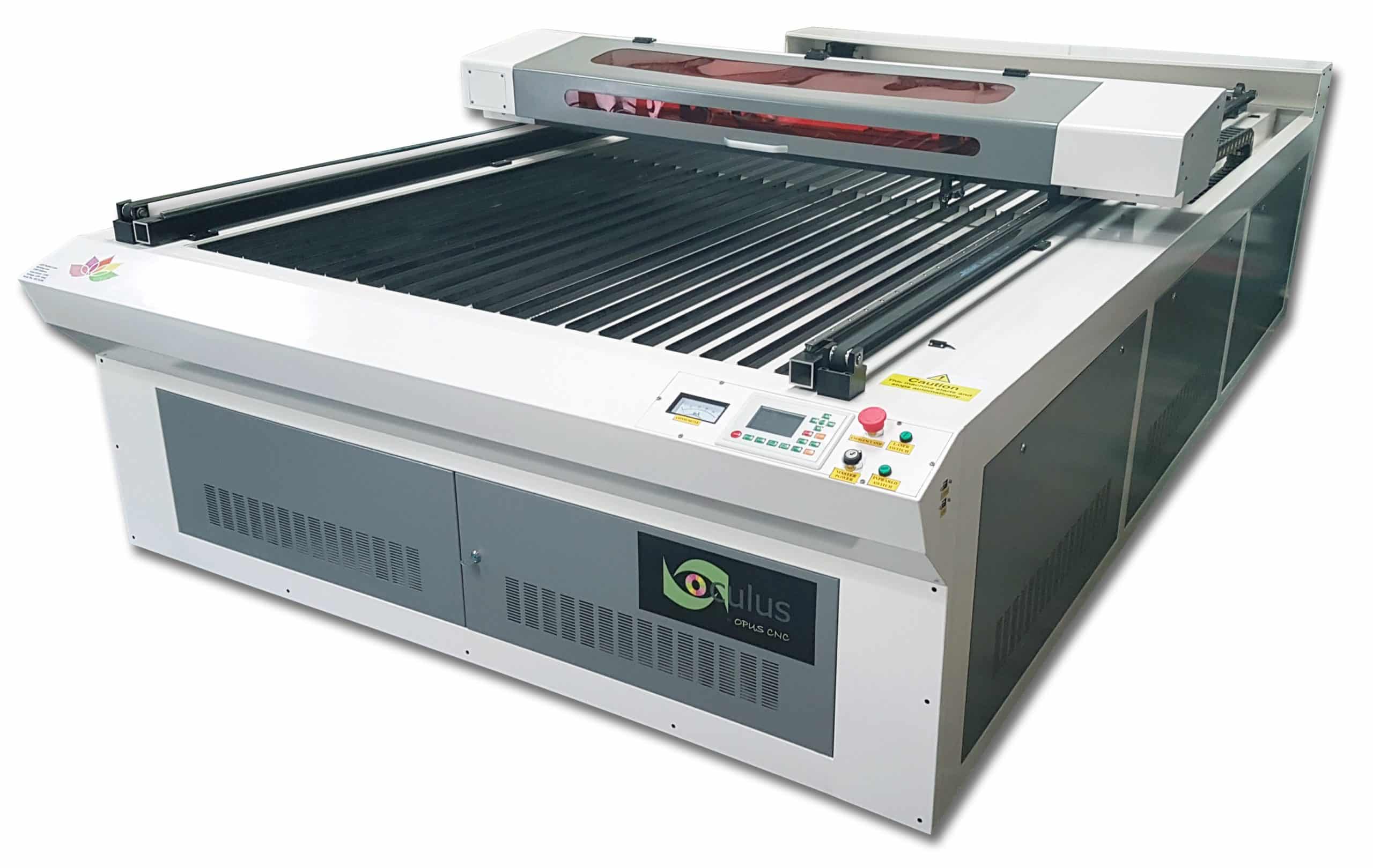

Oculus Flatbed Laser
The Oculus Flatbed range of laser cutters are suitable for many industries with the need to process larger sheet materials at least 8′ x 4′ in size.

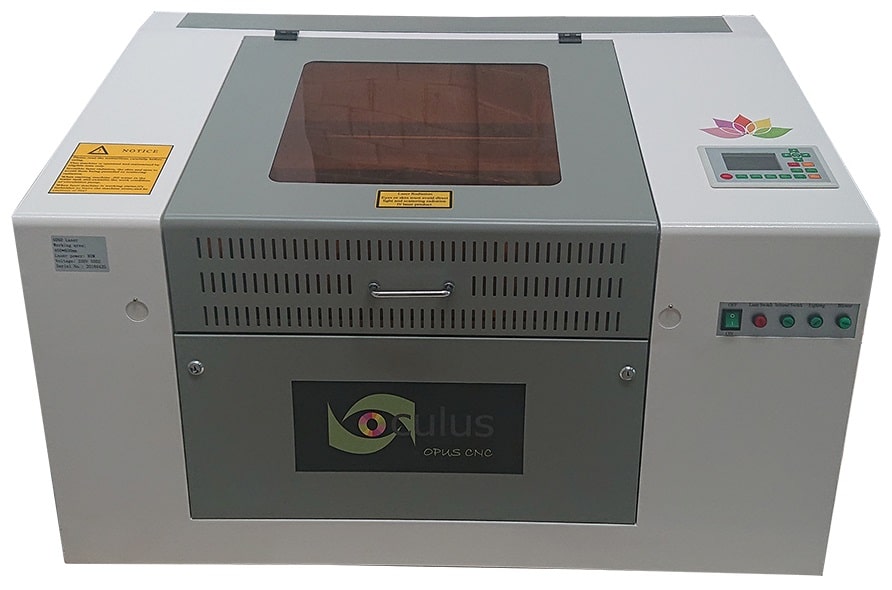

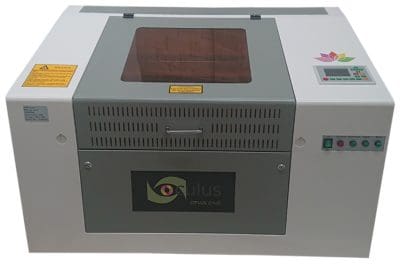

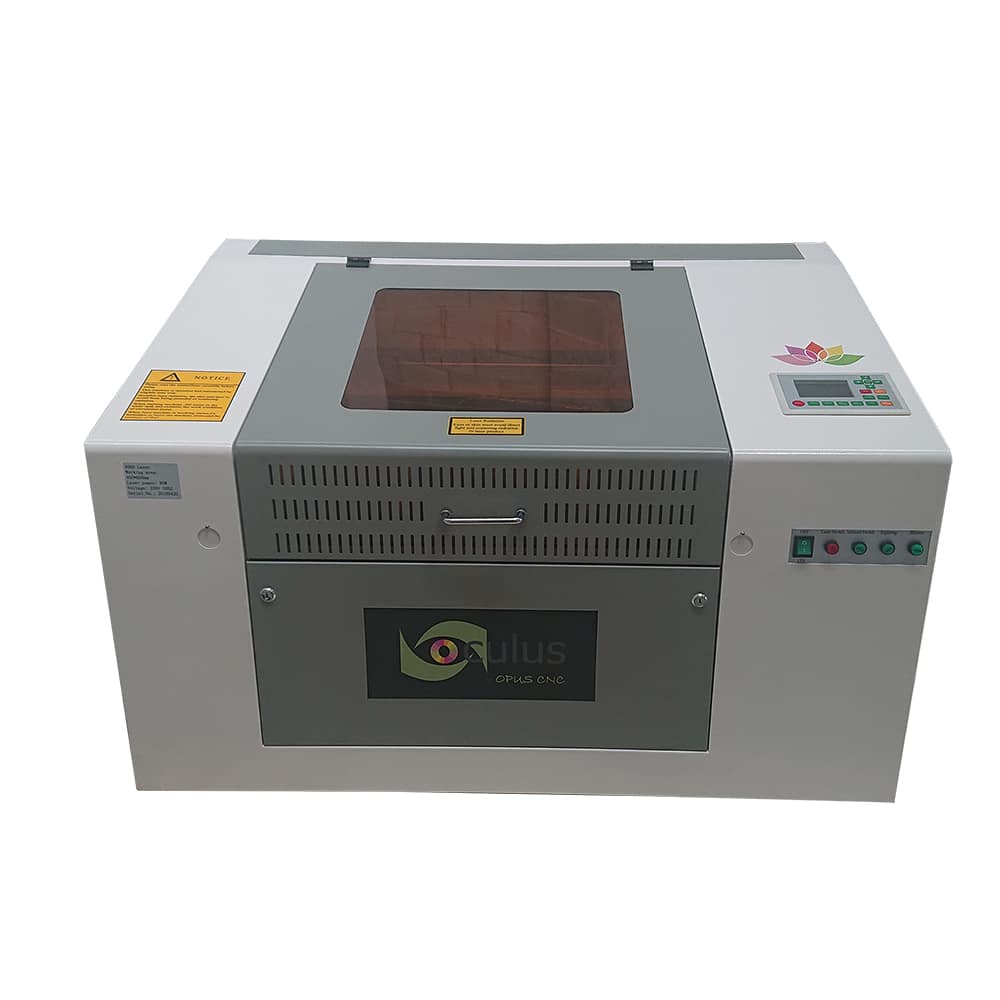

Oculus Benchtop Laser
The Oculus Benchtop Laser is a space-saving laser cutting machine perfect for education and the personalised gift market. It is ideal when space is limited and perfect for fitting through a standard doorway.
Do you want to start up a new business in personalised gifts? The Oculus benchtop is the perfect starter machine and is available in sizes 500x300mm and 600x400mm. The Oculus benchtop is the most popular size amongst hobbyists, education and personalised gifts. Additionally, this CO2 laser is capable of intricate cutting and engraving with precision and accuracy.
It is suitable for cutting up to 9mm MDF, acrylic and plies and with the motorised up/down and honeycomb bed, this laser cutter can take materials up to 200mm in thickness.
The rotary device is optional but will allow engraving onto cylindrical items such as glasses and flasks.

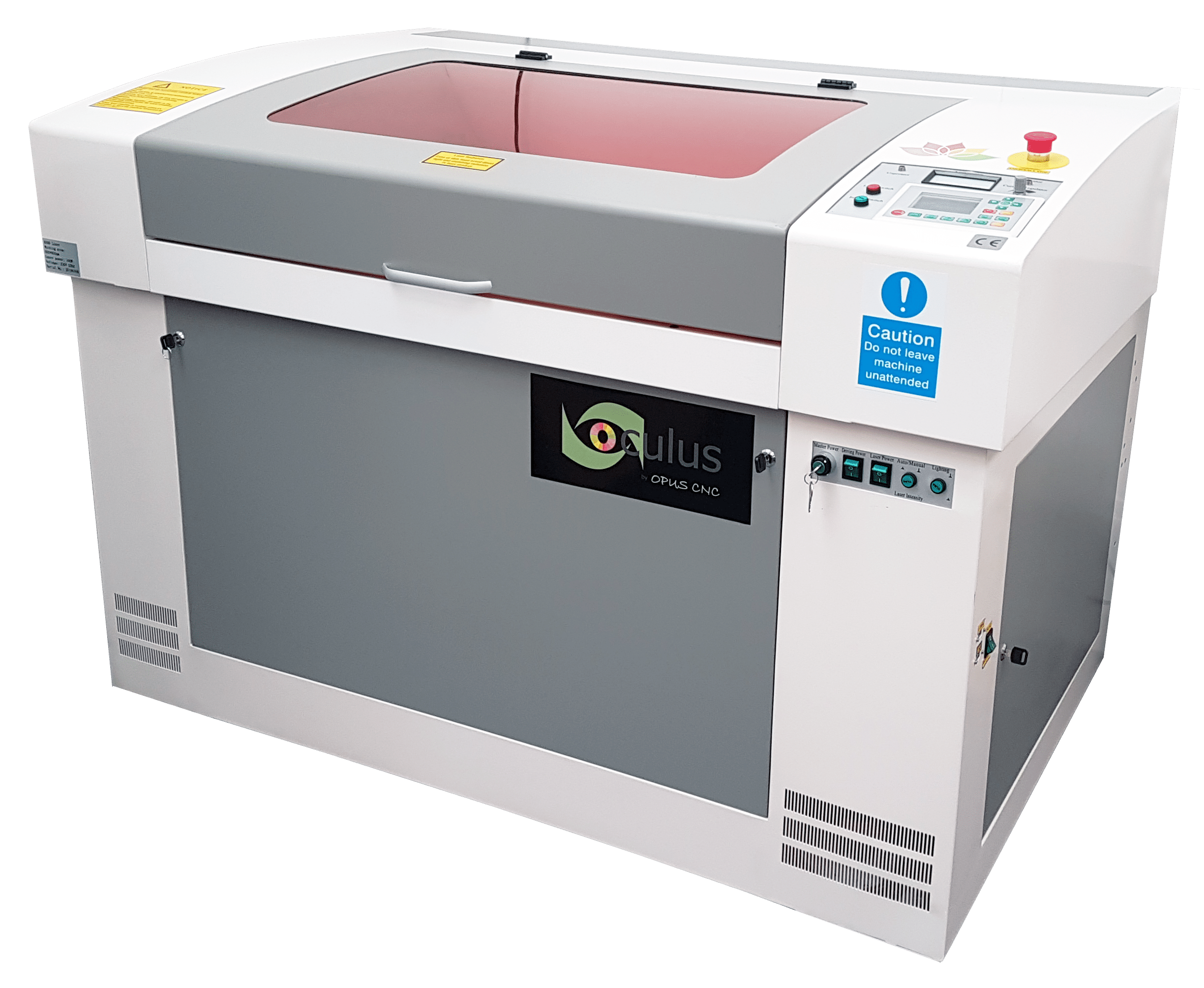

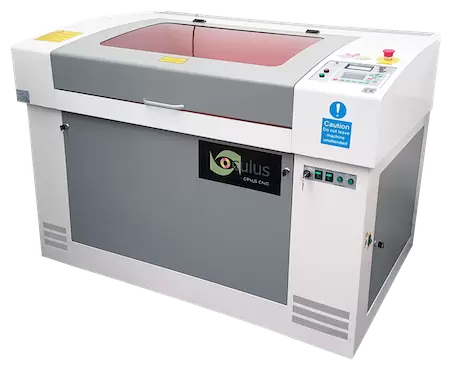

Oculus Free-Standing Laser
The Oculus Free-Standing Laser is the medium sized cutting and engraving laser suitable of cutting up to 20mm MDF, Acrylic and many more.
Available with either 100w, 130w or 150w power and are capable of cutting between 12mm and 20mm MDF, Ply and acrylic depending on power.
The easy to use software allows usability for even the most inexperienced of users. The Oculus free-standing range is popular amongst signage, modelmaking, PPE manufacturers, personalised gifts and many more.
Additionally, the rotary device is suitable for engraving intricately onto cylindrical items.
Available sizes:
600x900mm | 1300x900mm | 1600x900mm | 1500×1200

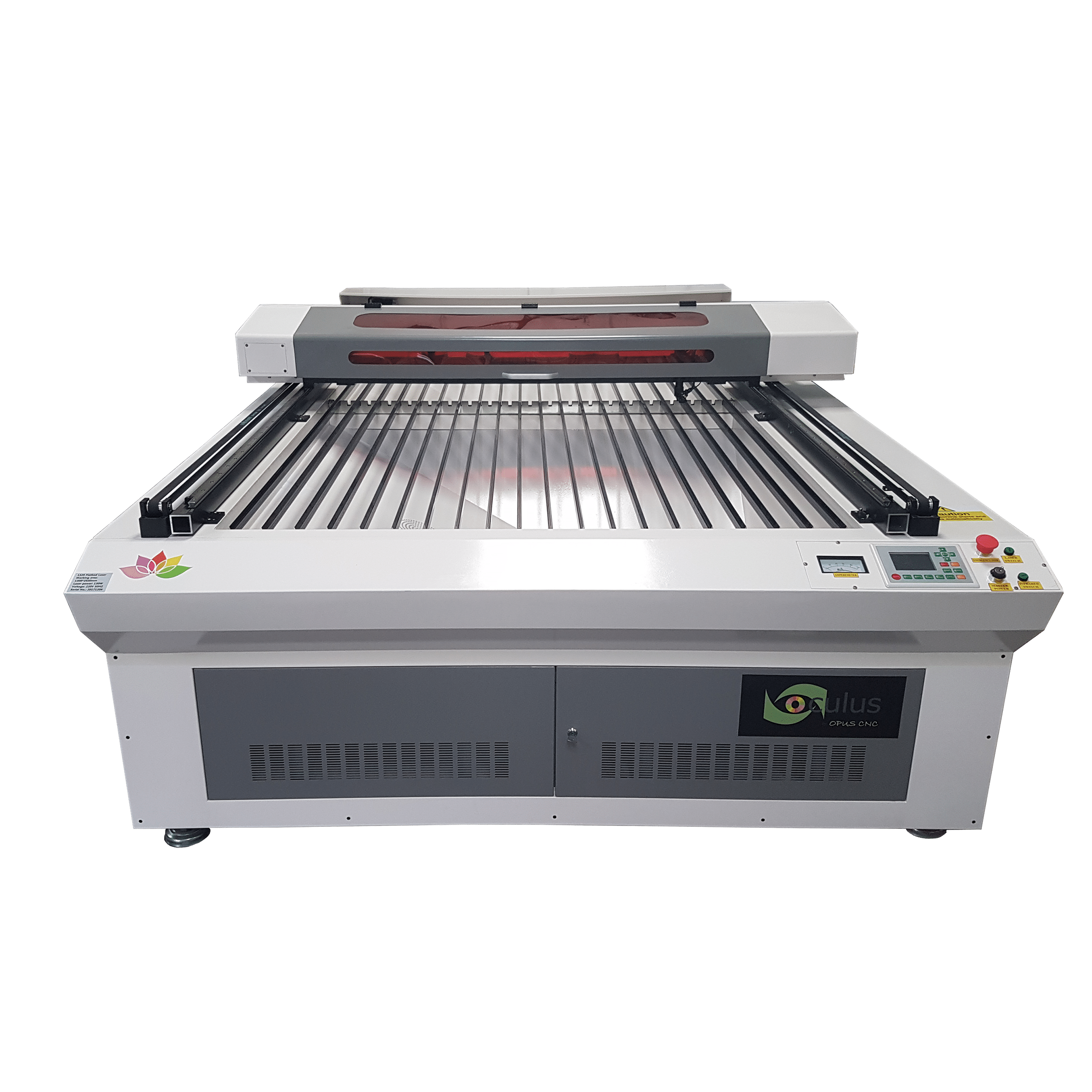

Oculus Flatbed Laser
The Oculus Flatbed range of laser cutters are suitable for many industries with the need to process larger sheet materials at least 8′ x 4′ and up to 2m x 3m in size.
Its large bed size and high power makes it a favourite in many industries such as signage and plastic fabrication.
All Oculus flatbed lasers are available with either 130w or 150w power and take standard 240 voltage.
Available sizes:
1300x2500mm | 1500x2500mm | 2000x3000mm
Need Impartial & Specialist Advice ?
Introduction to Laser cutting & engraving machines
What is a laser cutting machine? A laser cutter is a way of cutting and engraving many materials by transmitting a beam through a series of mirrors and a lens.
Due to their affordability and ease of use, the Oculus laser cutters are ideal for many industries and many materials. With a range of sizes to choose from, the Oculus laser is suitable for the personalised gift market, through to aerospace engineering.
The Oculus laser cutters have excellent cutting and engraving techniques that allow designs in Photoshop, Illustrator, and CorelDraw to come to life. They also include a built-in database of pre-set parameters and settings for different materials and processes to encourage ease of use. The entire range is also compatible with Lightburn software.
All Oculus lasers include an extraction system and hose. The extraction hose is placed externally when the laser is in operation through a door, window or vent. However, we can also supply BOFA filtration units to extract directly should extraction outside not be suitable.

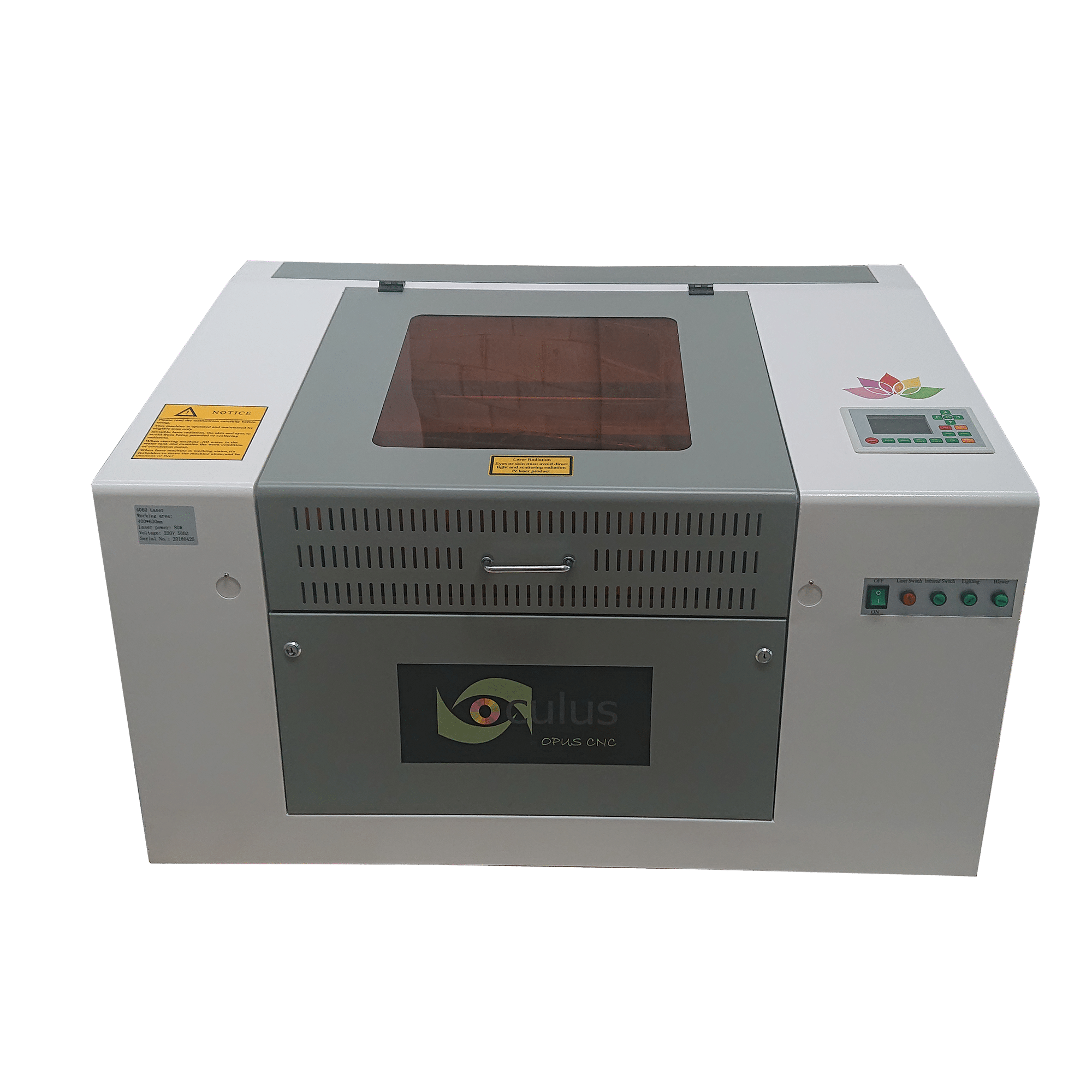

Oculus Benchtop Laser
The Oculus benchtop laser machine is our smallest laser cutter. Therefore, making it ideal when space is limited and perfect for fitting through a standard doorway.
Do you want to start up a new business in personalised gifts? The Oculus benchtop is the perfect starter machine and is available in sizes 500x300mm and 600x400mm. The Oculus benchtop is the most popular size amongst hobbyists, education and personalised gifts. Additionally, this CO2 laser is capable of intricate cutting and engraving with precision and accuracy.
It is suitable for cutting up to 9mm MDF, acrylic and plies and with the motorised up/down and honeycomb bed, this laser cutter can take materials up to 200mm in thickness.
The rotary device is optional but will allow engraving onto cylindrical items such as glasses and flasks.

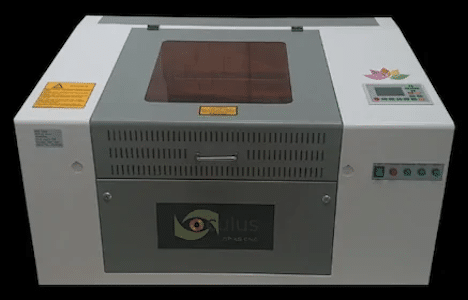

Oculus Benchtop Laser
The Oculus benchtop laser machine is our smallest laser cutter. Therefore, making it ideal when space is limited and perfect for fitting through a standard doorway.
Do you want to start up a new business in personalised gifts? The Oculus benchtop is the perfect starter machine and is available in sizes 500x300mm and 600x400mm. The Oculus benchtop is the most popular size amongst hobbyists, education and personalised gifts. Additionally, this CO2 laser is capable of intricate cutting and engraving with precision and accuracy.
It is suitable for cutting up to 9mm MDF, acrylic and plies and with the motorised up/down and honeycomb bed, this laser cutter can take materials up to 200mm in thickness.
The rotary device is optional but will allow engraving onto cylindrical items such as glasses and flasks.

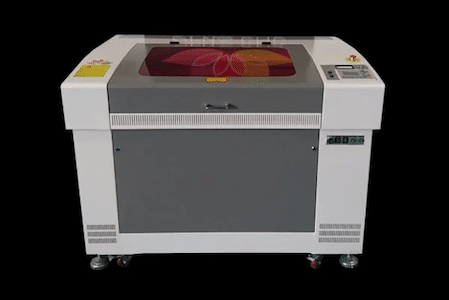

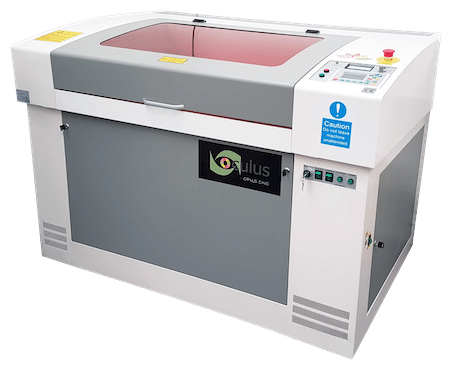

Oculus Free-Standing Laser
The Oculus free-standing laser cutter machine is the medium size of the Oculus laser engraving and cutting machines.
Available with either 100w, 130w or 150w power and are capable of cutting between 12mm and 20mm MDF, Ply and acrylic depending on power.
The easy to use software allows usability for even the most inexperienced of users. The Oculus free-standing range is popular amongst signage, modelmaking, PPE manufacturers, personalised gifts and many more.
Additionally, the rotary device is suitable for engraving intricately onto cylindrical items.
Available sizes:
600x900mm | 1300x900mm | 1600x900mm | 1500×1200

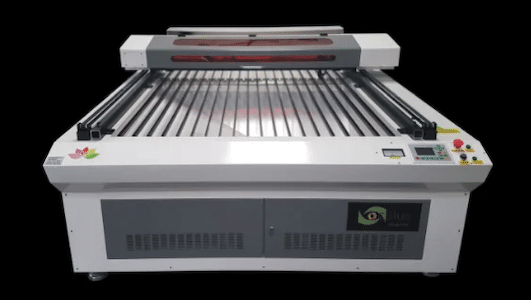

Oculus Flatbed Laser
The Oculus flatbed laser machines have larger bed sizes and are available to take up to 2m x 3m sheets.
Its large bed size and high power makes it a favourite in many industries such as signage and plastic fabrication.
All Oculus flatbed lasers are available with either 130w or 150w power and take standard 240 voltage.
Available sizes:
1300x2500mm | 1500x2500mm | 2000x3000mm

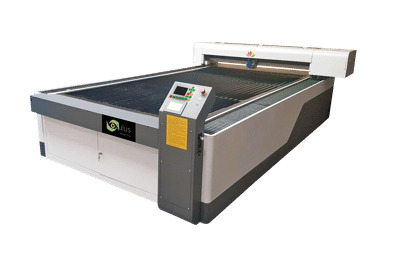

Oculus Metal/Non-Metal Laser
The Oculus metal/non-metal lasers are ideal for cutting both metallic and non-metallic materials.

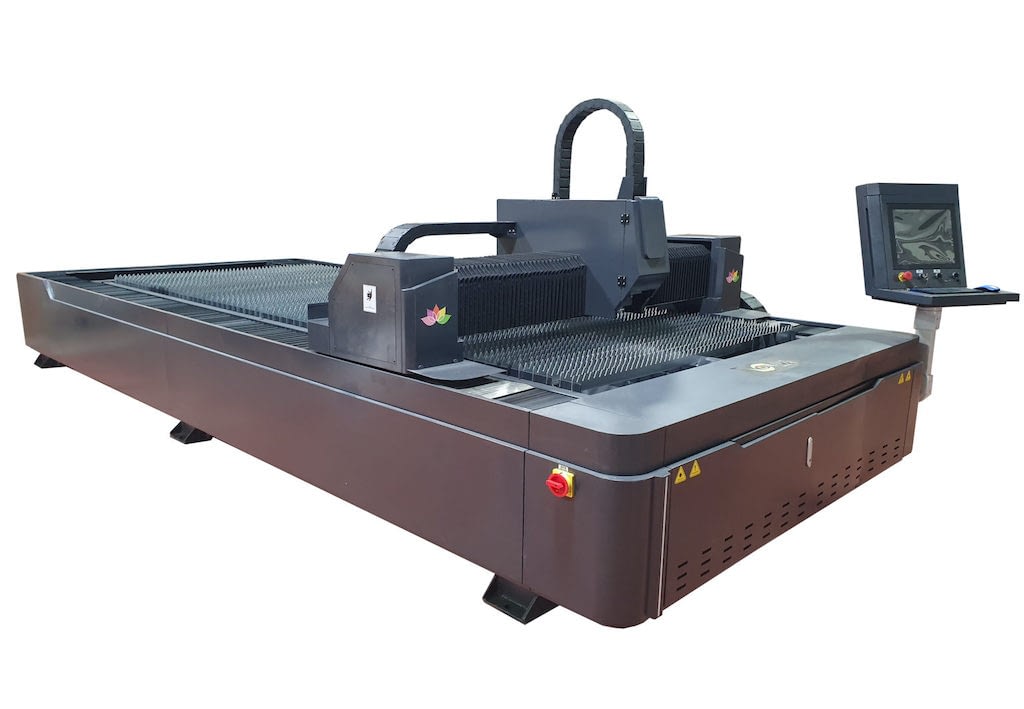

Oculus Fibre Laser
The Oculus fibre laser is a strong and mighty machine and is suitable for metal cutting only.
Oculus Metal/Non-Metal Laser
The Oculus metal/non-metal lasers are ideal for cutting both metallic and non-metallic materials.
The versatility of being able to cut acrylic and stainless steel within one machine makes this Oculus metal/non-metal suitable for many sectors.
The Oculus metal/non-metal laser cutter is a firm favourite with engineering firms, sets and props, and exhibition builders due to the flexibility of being able to cut some metals as well as acrylic, MDF, ply and foam.
Available in larger sizes starting at 1300x2500mm up to 2000x3000mm.

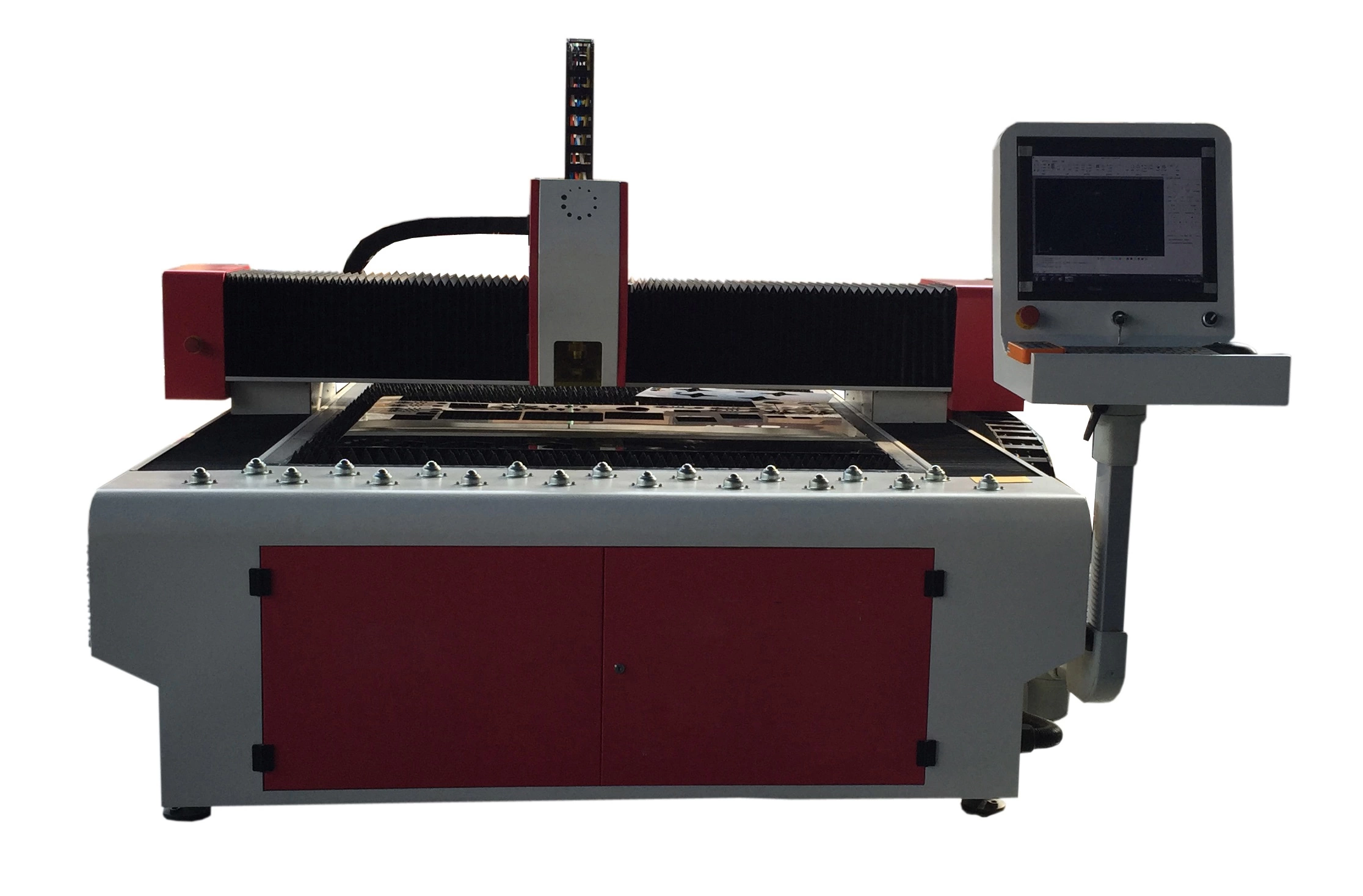

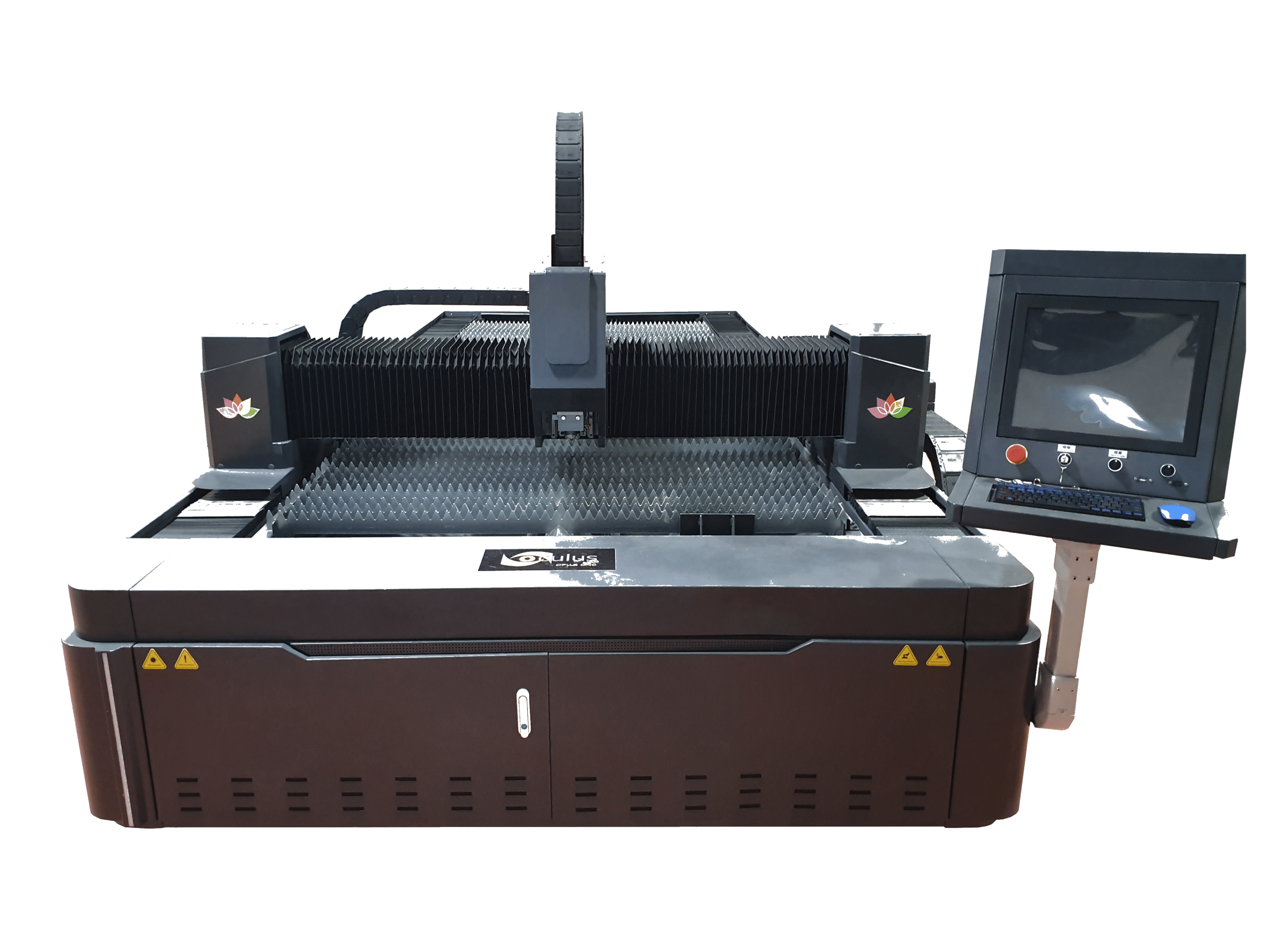

Oculus Fibre Laser
The Oculus fibre laser is a strong and mighty machine and is suitable for metal cutting only.
The Oculus fibre lasers are suitable for cutting and engraving mild steel, aluminium and stainless steel with precision and accuracy.
Available up to 8 metres in size, these metal cutting laser machines are robust and built to last as well as having the power to cut intricately when needed.
Inclusive of an integrated computer control system, this powerful machine can cut through metal with ease and is popular in many industries, such as shop fitting, metal components and aerospace engineering.
Oculus Metal/Non-Metal Laser
The versatility of being able to cut acrylic and stainless steel within one machine makes this Oculus metal/non-metal suitable for many sectors.
The Oculus metal/non-metal laser cutter is a firm favourite with engineering firms, sets and props, and exhibition builders due to the flexibility of being able to cut some metals as well as acrylic, MDF, ply and foam.
Available in larger sizes starting at 1300x2500mm up to 2000x3000mm.
Oculus Fibre Laser
The Oculus fibre lasers are suitable for cutting and engraving mild steel, aluminium and stainless steel with precision and accuracy.
Available up to 8 metres in size, these metal cutting laser machines are robust and built to last as well as having the power to cut intricately when needed.
Inclusive of an integrated computer control system, this powerful machine can cut through metal with ease and is popular in many industries, such as shop fitting, metal components and aerospace engineering.
Oculus
Benchtop Laser
Available Sizes – 500×300 & 600×400
80w Power
CO2
Honeycomb Bed
Bed drop – 200mm
Chiller – CW3000
Air Assist
Household Socket
Cuts MDF, Acrylic etc – Yes
Cuts Metal – No
Warranty – 1 Year Parts & Labour
Oculus
Free-Standing
600×900 900×1300 900×1600 1500×1200
100w | 130w | 150w Power
CO2
Honeycomb and Blade Bed
Bed drop – 400mm
Chiller – CW5000
Air Assist
Household Socket
Cuts MDF, Acrylic etc – Yes
Cuts Metal – No
Warranty – 1 Year Parts & Labour
Oculus
Flatbed Laser
1300×2500 | 1500×2500 | 2000×3000
130w | 150w Power
CO2
Blade Bed
Bed drop – 25mm
Chiller – CW5000
Air Assist
Household Socket
Cuts MDF, Acrylic etc – Yes
Cuts Metal – No
Warranty – 1 Year Parts & Labour
Oculus
Metal/Non-Metal
1300×2500 | 1500×2500 | 2000×3000
130w | 150w Power
CO2
Blade Bed
Bed drop – 25mm
Chiller – CW5200
Air Assist
Household Socket
Cuts MDF, Acrylic etc – Yes
Cuts Metal – Yes
Warranty – 2 Years Parts & Labour
Oculus
Fibre Laser
1300×2500 | 1500×2500 | 2000×3000
1kW to 6kW Power
CypCut Power Source
Blade Bed
Bed drop – 25mm
Chiller – CW6100
Oxygen and Nitrogen
3 Phase
Cuts MDF, Acrylic etc – No
Cuts Metal – Yes
Warranty – 2 Years Parts & Labour
BOFA Filtration Units
We know the fumes from laser cutters are not toxic, merely unpleasant. Therefore, we have partnered with BOFA International, who design, develop and manufacture fume and dust extraction systems. Suitable for a wide range of industrial sectors and applications.
These filtration units are suitable where normal external extraction is not practical. We would always recommend the addition of a filtration unit for all education sectors.
BOFA Filtration Units
We know the fumes from laser cutters are not toxic, merely unpleasant. Therefore, we have partnered with BOFA International, who design, develop and manufacture fume and dust extraction systems. Suitable for a wide range of industrial sectors and applications.
These filtration units are suitable where normal external extraction is not practical. We would always recommend the addition of a filtration unit for all education sectors.
BOFA Filtration Units
We know the fumes from laser cutters are not toxic, merely unpleasant. Therefore, we have partnered with BOFA International, who design, develop and manufacture fume and dust extraction systems. Suitable for a wide range of industrial sectors and applications.
These filtration units are suitable where normal external extraction is not practical. We would always recommend the addition of a filtration unit for all education sectors.
Operating in the UK, we continue to test all Oculus lasers at our Durham head office prior to all machines leaving. We ensure the full process of delivery, installation and training is included with all Oculus lasers. Inexperienced customers will have full confidence in their new machine once training has been completed on-site.
We take safety serious and all of the Oculus laser machines are CE certified and conform to EU directives.
Operating in the UK, we continue to test all Oculus lasers at our Durham head office prior to all machines leaving. We ensure the full process of delivery, installation and training is included with all Oculus lasers. Inexperienced customers will have full confidence in their new machine once training has been completed on-site.
We take safety serious and all of the Oculus laser machines are CE certified and conform to EU directives.
The correct maintenance, and proper use of your Oculus laser machine is paramount to ensuring your Oculus laser machine operates safely and optimally.
What are the benefits of owning a laser cutter?
An Oculus laser cutting machine can bring new dimensions to existing businesses or open new avenues for start-ups. A laser cutter allows intricate engraving and cutting to be carried out with minimum effort. Therefore, no previous experience is necessary, and with our training program, you will be able to bring ideas to life immediately.
The Oculus laser cutters are much more powerful than most branded laser cutters and include the complete delivery, installation, and training package. They also come with one year’s parts and labour warranty, and we also offer annual servicing to ensure the longevity of your laser machine.
