Oculus Free-Standing Lasers

Professional laser cutting machines

Professional laser cutting machines

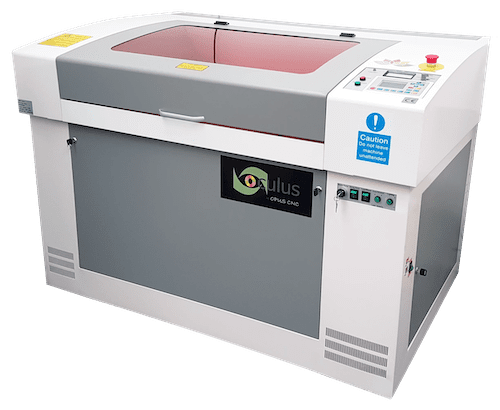

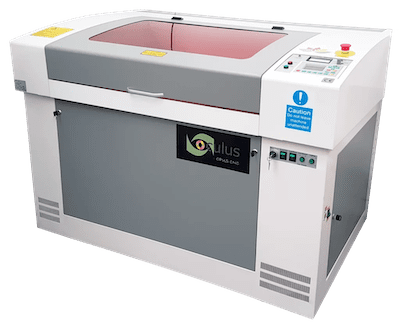

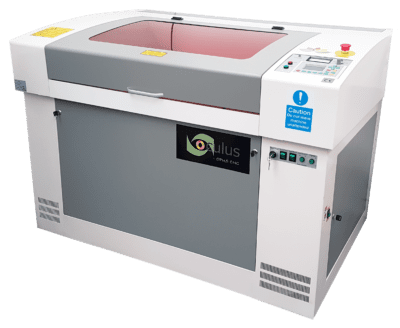

Laser Cutter - Free-Standing Model
Laser Cutter - Free-Standing Model

Available in the following sizes:

600×900 | 1300×900 | 1600×900 | 1500×1200

Overview

The Oculus free-standing lasers are available in four sizes and come with up to 150w CO2 power. They can handle the most intricate designs as well as straight cuts and engraves.

This laser cutting machine is perfect for a large variety of industries, from education and arts and crafts, to sign making and exhibition stand builders.

The Oculus free-standing laser cutter is also incredibly easy to use and requires no previous user experience. We provide both machine and software training as part of the package as well as delivery and installation.

All Oculus laser cutters come with extraction and hose. The extraction hose is placed externally through a window or a door when it is in use. We can also supply filtration units should the option to extract outside not be possible.

We take safety and well-being seriously with all Oculus laser cutters. Therefore, we have ensured all of the Oculus laser cutters include a safety shutoff feature. This feature activates once the lid opens and subsequently ceases the laser from continuing. Also, within the training, we explain how to use the Oculus laser safely and how to get the best out of it.

Furthermore, finance is available and are also available between two and five years, subject to status.

Overview

The Oculus free-standing lasers are available in four sizes and come with up to 150w CO2 power. They can handle the most intricate designs as well as straight cuts and engraves.

This laser cutting machine is perfect for a large variety of industries, from education and arts and crafts, to sign making and exhibition stand builders.

The Oculus free-standing laser cutter is also incredibly easy to use and requires no previous user experience. We provide both machine and software training as part of the package as well as delivery and installation.

All Oculus laser cutters come with extraction and hose. The extraction hose is placed externally through a window or a door when it is in use. We can also supply filtration units should the option to extract outside not be possible.

We take safety and well-being seriously with all Oculus laser cutters. Therefore, we have ensured all of the Oculus laser cutters include a safety shutoff feature. This feature activates once the lid opens and subsequently ceases the laser from continuing. Also, within the training, we explain how to use the Oculus laser safely and how to get the best out of it.

Furthermore, finance is available and are also available between two and five years, subject to status.

Features

Tube Power: Water Cooled CO2 100w | 130w | 150w

Bed Type:  Honeycomb and Motorised up/down bed to 400mm

Extraction System:  Fan Blower

Accuracy: ±0.01mm

Cutting Speed:  0-36,000mm/min

Engraving Systems:  0-60,000mm/min

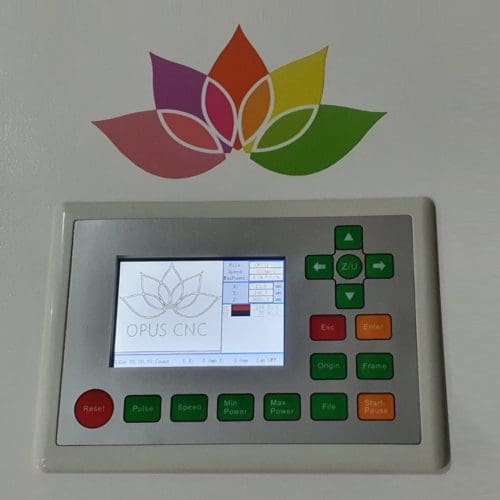

Control System:  RDWorks v8

Software Supported:  Lightburn, CorelDraw, Photoshop, Illustrator and AutoCAD

Working Voltage:  240v

Inclusive:  Delivery, installation and full training

Warranty: 1 year full parts and labour

Additional Extras: Rotary Device | BOFA 500 or 1000 Filter Unit

Please note, the control software also has a database with different material cutting and engraving settings built-in. Therefore, this feature not only provides user confidence but allows jobs to be processed efficiently and quickly.

Features

Tube Power: Water Cooled CO2 100w | 130w | 150w

Bed Type:  Honeycomb and Motorised up/down bed to 400mm

Extraction System:  Fan Blower

Accuracy: ±0.01mm

Cutting Speed:  0-36,000mm/min

Engraving Systems:  0-60,000mm/min

Control System:  RDWorks v8

Software Supported:  Lightburn, CorelDraw, Photoshop, Illustrator and AutoCAD

Working Voltage:  240v

Inclusive:  Delivery, installation and full training

Warranty: 1 year full parts and labour

Additional Extras: Rotary Device | BOFA 500 or 1000 Filter Unit

Please note, the control software also has a database with different material cutting and engraving settings built-in. Therefore, this feature not only provides user confidence but allows jobs to be processed efficiently and quickly.

Entry-Level CNC
Entry-Level CNC
Entry-Level CNC
Entry-Level CNC
Entry-Level CNC
Entry-Level CNC

Perfect for

The Oculus free-standing laser cutter machines are ideal for cutting and engraving intricately, cleanly and on a larger scale. Powers are available to choose from 100w, 130w and 150w; the higher the power, the thicker the materials you can cut. The 100w allows cuts of MDF and acrylic, up to 12mm, and the 130w allows 18mm and the 150w 20mm.

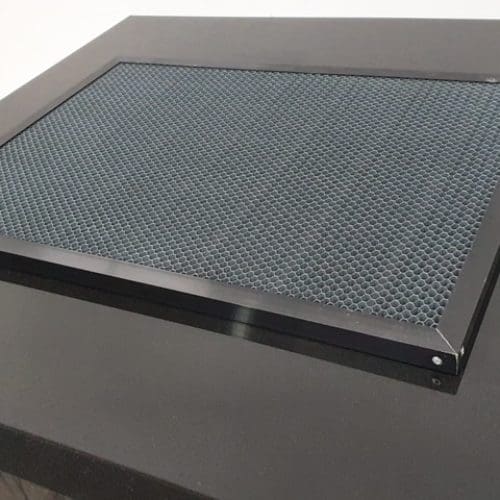

The Oculus free-standing range has a slatted bed as standard, with the option of an additional honeycomb table. The slatted bed is suitable for those larger pieces, and the honeycomb table is preferable for those smaller pieces to prevent them from falling to the bottom of the laser machine.

The rotary device is compatible with all of the Oculus free-standing laser cutting machines.

Furthermore, many materials are suitable for cutting and engraving on the Oculus laser cutter. Materials such as Ply, MDF, Laserply, laminate, plexiglass, wood, acrylic and two-tone acrylic. As well as vinyl, mylar, stainless steel*, cork,  marble*, stone*, tile*, card and glass*.

*Engrave only

Perfect for

The Oculus free-standing laser cutter machines are ideal for cutting and engraving intricately, cleanly and on a larger scale. Powers are available to choose from 100w, 130w and 150w; the higher the power, the thicker the materials you can cut. The 100w allows cuts of MDF and acrylic, up to 12mm, and the 130w allows 18mm and the 150w 20mm.

The Oculus free-standing range has a slatted bed as standard, with the option of an additional honeycomb table. The slatted bed is suitable for those larger pieces, and the honeycomb table is preferable for those smaller pieces to prevent them from falling to the bottom of the laser machine.

The rotary device is compatible with all of the Oculus free-standing laser cutting machines.

Furthermore, many materials are suitable for cutting and engraving on the Oculus laser cutter. Materials such as Ply, MDF, Laserply, laminate, plexiglass, wood, acrylic and two-tone acrylic. As well as vinyl, mylar, stainless steel*, cork,  marble*, stone*, tile*, card and glass*.

*Engrave only

Thermark spray allows you to engrave easily onto metals and then this will leave a black engrave onto the material.

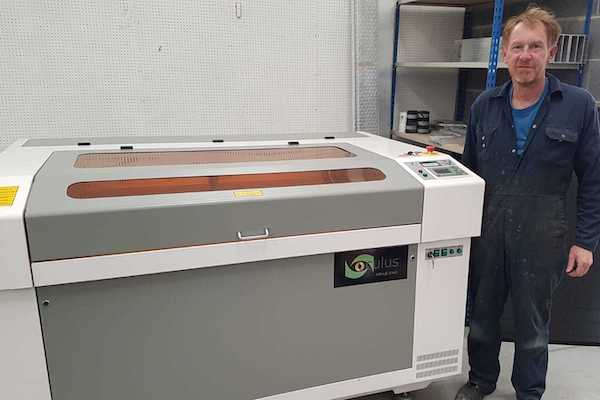

Engineering

Thermark spray allows you to engrave easily onto metals and then this will leave a black engrave onto the material.
Perfect for materials such as MDF, ply, laserply, acrylic, mylar, paper and card.

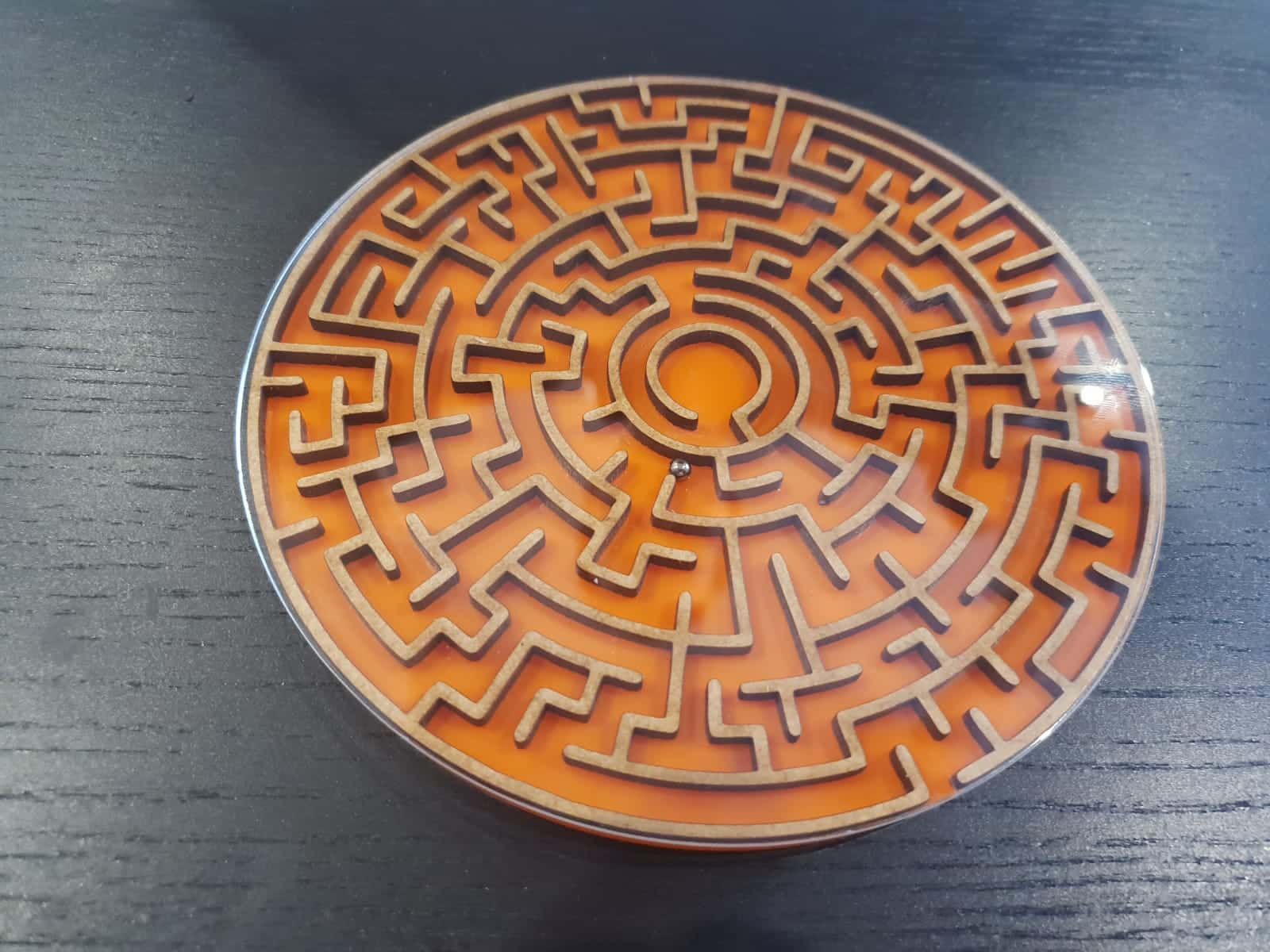

Crafts

Perfect for materials such as MDF, ply, laserply, acrylic, mylar, paper and card.
Engraving onto components can be carried out easily and with speed with the inclusive  RDWorks software.

Electronics

Engraving onto components can be carried out easily and with speed with the inclusive RDWorks software.

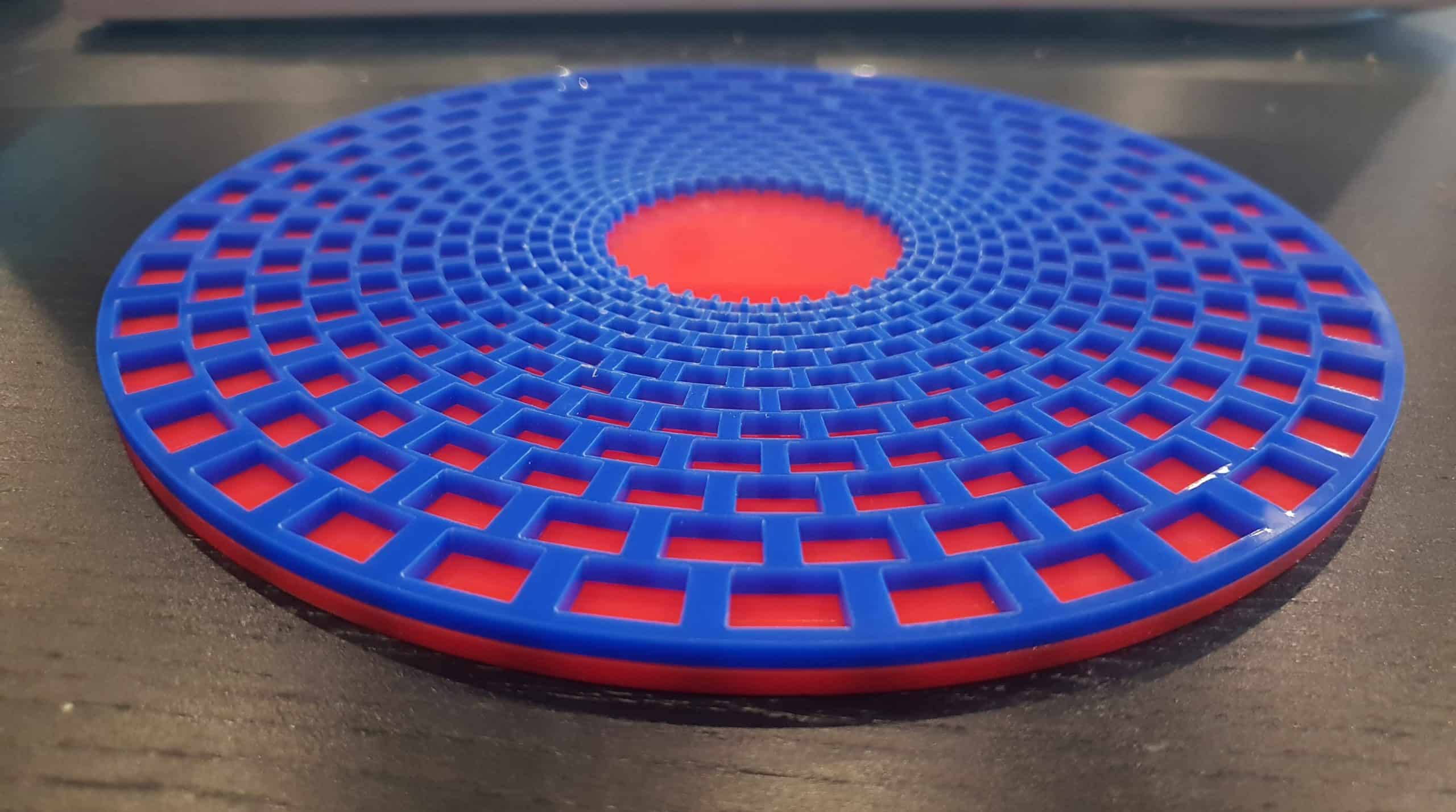

Acrylic and MDF and up to 20mm are the favoured materials used on the Oculus free-standing laser cutter machines.

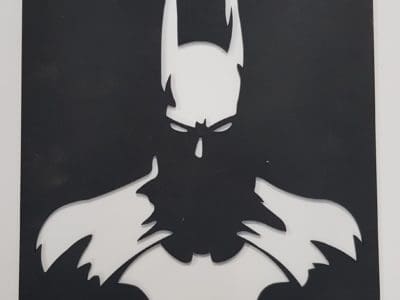

Signage

Acrylic and MDF and up to 20mm are the favoured materials used on the Oculus free-standing laser cutter machines.
Prototypes have been produced within research departments on the Oculus free-standing laser cutter.

Prototypes

Prototypes have been produced within research departments on the Oculus free-standing laser cutter.
Design and Technology department favour the Oculus laser machine for ease of use.

Education

Design and Technology department favour the Oculus laser machine for ease of use.
Laser Cutter - Free-Standing Model

Finance

Length

Finance can be taken out over two to five years

Cost

From £23 per week

Information

Subject to status | No deposit needed | Tax Advantage

Laser Cutter - Free-Standing Model

Finance

Length

Finance can be taken out over two to five years

Cost

From £23 per week

Information

Subject to status | No deposit needed | Tax Advantage

5mm ply board

Cutting cardboard

Cutting and engraving 9mm MDF

Want to book a demo or request more info?

We’re available 7 days a week – 8:30am to 6pm

Summary

Oculus Free-Standing Laser

Medium sized laser with up to 150w power. Perfect for cutting and engraving many materials.

Warranty

The Oculus free-standing laser includes 1 year parts and labour warranty, with the option to extend to up to 5 years.

Software

RDWorks v8 comes as standard with all Oculus free-standing laser cutters. It can also be used as a design package.

Aftercare Support

We understand the importance of customer service and it is just as important as the machine purchase.

Delivery, Installation & Training

Delivery, installation and training is included with all Oculus laser cutters at no additional cost.

Finance

Working in partnership with Anglo Scottish Finance we can offer some of the best rates up to five years.

Summary

Oculus Free-Standing Laser

Medium sized laser with up to 150w power. Perfect for cutting and engraving many materials.

Software

RDWorks v8 comes as standard with all Oculus free-standing laser cutters. It can also be used as a design package.

Delivery, Installation & Training

Delivery, installation and training is included with all Oculus laser cutters at no additional cost.

Warranty

The Oculus free-standing laser includes 1 year parts and labour warranty, with the option to extend to up to 5 years.

Aftercare Support

We understand the importance of customer service and it is just as important as the machine purchase.

Finance

Working in partnership with Anglo Scottish Finance we can offer some of the best rates up to five years.
