CNC Routers for Cabinet Makers & Joiners

Kitchen Cabinets, Wardrobes, Vanities, Cupboards, and Shelving Units.

Designed for Cabinet Makers Who Take Craftsmanship Seriously

When it comes to the construction and installation of built-in or freestanding furniture and whether you’re manufacturing bespoke kitchens, high-end wardrobes, or complete commercial fit-outs, an Opus CNC router transforms your workshop into a precision production hub.

With cabinet makers, we understand that cutting performance, the quality of finish and reliability are paramount as your business relies on fast, accurate, and clean panel processing.

From single-piece production to full-scale batch nesting, our CNC routers offer speed, accuracy, repeatability, and the professional finish your customers demand.

When working with solid timber, birch, plywood, hardwoods, MDF or even laminated chipboard, Opus heavy-duty CNC routers are designed with these materials in mind. The 9kW spindle delivers the torque and RPM for clean and precise cuts, every time.

Why Do Cabinet Makers Choose Opus CNC?

High-Precision Cutting for Fitted Furniture

Cut carcasses, doors, fascias, drawer fronts, and panels with exact dimensions and millimetre-perfect alignment. Our machines eliminate human error and manual rework.

Increase Output Without Increasing Labour

Cut complex parts with rebates, holes, pockets, and edge profiles in a single run. Produce more in less time — without the need for additional staff.

Ready for Edge-Banding and Final Assembly

Our routers leave smooth, chip-free edges that are ready for finishing — saving hours of post-processing.

Perfect for Batch Work and Custom Projects

Switch seamlessly between small custom jobs and larger production runs with stored toolpaths, nesting templates, and project libraries.

Smarter Material Use with Nesting

Save on material costs by nesting multiple parts efficiently within a single sheet. Reduce offcuts and increase yield.

Why modern cabinet makers are making the switch

Aspect	Manual Build (Traditional Method)	CNC Router Production (e.g. Olympus/Pegasus)
Accuracy	Dependent on hand measurement & skill	Digitally driven — exact measurements every time
Speed	Slow – time-consuming layout, cutting, drilling	Entire sheet processed in minutes with cut-outs, grooves & hinge holes done in one run
Repeatability	Variations common between units	Perfect replication across every cabinet
Waste	Higher material waste from cutting errors	Optimised sheet nesting = minimal offcuts
Labour Dependence	Relies heavily on experienced tradespeople	One trained operator can run full production
Complex Designs	Time-consuming and error-prone	Easily handles curves, pockets, dados, joinery
Scalability	Hard to scale up production	Seamless batch processing or one-offs with speed
Tooling Changes	Manual saw/blade change between operations	Automatic tool change for profiling, drilling, cutting – all in one job file
Drilling Hinge Holes / Shelf Pegs	Requires jigs and setups	Precision drilled automatically via programmed coordinates
Lead Times	Longer turnaround per kitchen or project	Shorter lead times, higher throughput

Our Most popular asked questions

FAQs for Cabinet Makers & Joiners

Can it handle solid timber, MDF, and laminated chipboard?

Yes, absolutely. At Opus, our CNC routers are designed by experienced engineers who understand the components required for materials such as MDF, birch plywood, laminated boards, and hardwoods. The 9kW spindle delivers superior torque and RPM, providing clean and accurate cuts whether you’re shaping solid timber doors or nesting flat-pack cabinets.

Will the edges be clean straight off the machine, or will we need to sand them?

You’ll get a very clean finish straight from the machine, especially on MDF and laminate. Using the right compression or spiral tooling, many of our cabinet-making customers go straight to assembly without needing additional sanding—saving time on every job.

Can it cut full 8x4 sheets accurately?

Yes. The Olympus 1325 and 1530 models are built specifically for 8×4 and 5×10 sheet sizes, with a robust frame and a matrix-zoned vacuum bed that gives consistent hold across the whole sheet, even when nesting smaller parts.

How strong is the vacuum bed hold-down?

We’ve designed our own matrix vacuum system in-house. It offers far better hold than typical grid beds, especially when cutting smaller cabinet parts. Each machine includes powerful vacuum pumps to ensure your material doesn’t move mid-cut—even on slick laminated boards.

Will the machine slow us down with tool changes?

Not at all. The automatic tool changer switches tools in seconds without stopping the program. Whether you’re switching from a roughing tool to a finishing bit, or to a drill for hinge holes, it keeps your workflow fast and efficient.

What software does it come with? Is it easy to use?

We include VCarve Pro with every machine, which is very intuitive and ideal for cabinetry. It allows you to import DXFs, nest parts, assign tools, and simulate your cuts. We also provide full software training to ensure you’re confident from day one.

Can it handle cabinet joinery operations—like dados, rabbets, and hinge holes?

Yes. With the right tooling and setup in your software, you can run operations like dado grooves, rabbets, and even drill hinge holes in the same job file using different tools from the tool carousel.

Is this machine suitable for making custom and batch furniture?

It’s ideal for both. Whether you’re batch-cutting kitchen carcasses or producing custom one-offs, the machine gives you repeatable accuracy, fast changeovers with the ATC, and full control over your designs.

Is it futureproof—can we add more automation later?

Definitely. Many of our customers start with the ATC model and later add a side-drilling machine or even additonal machines to increase throughput. Our machines are built with industry-standard components, so they’re ready for integration with downstream processes.

What kind of support do you offer after installation?

You get full UK-based support—by phone, email, and through our customer portal. Our engineers are on-hand to assist with setup, tooling advice, or troubleshooting. You also get 2 years warranty on parts and labour, and lifetime access to updates and support.

Tool Type	Use Case	Benefit
Compression Spiral Bit	Double-faced MFC and veneered boards	No chipping top or bottom
Down-Cut Bit	Clean surface cuts on birch ply / MDF	Smooth top edge
Slotting Bit	Back panel grooves, shelving rebates	Fast accurate joinery
35mm Boring Bit	Hinge cups (Blum, Hettich, etc.)	Precise hole size and positioning
V-Bit / Chamfer Bit	Decorative door detailing and branding	Adds bespoke character
Engraving Bit	Part IDs, labels, routing diagrams	Useful for batching and flat-pack kits

Recommended CNC Routers for Cabinet Makers

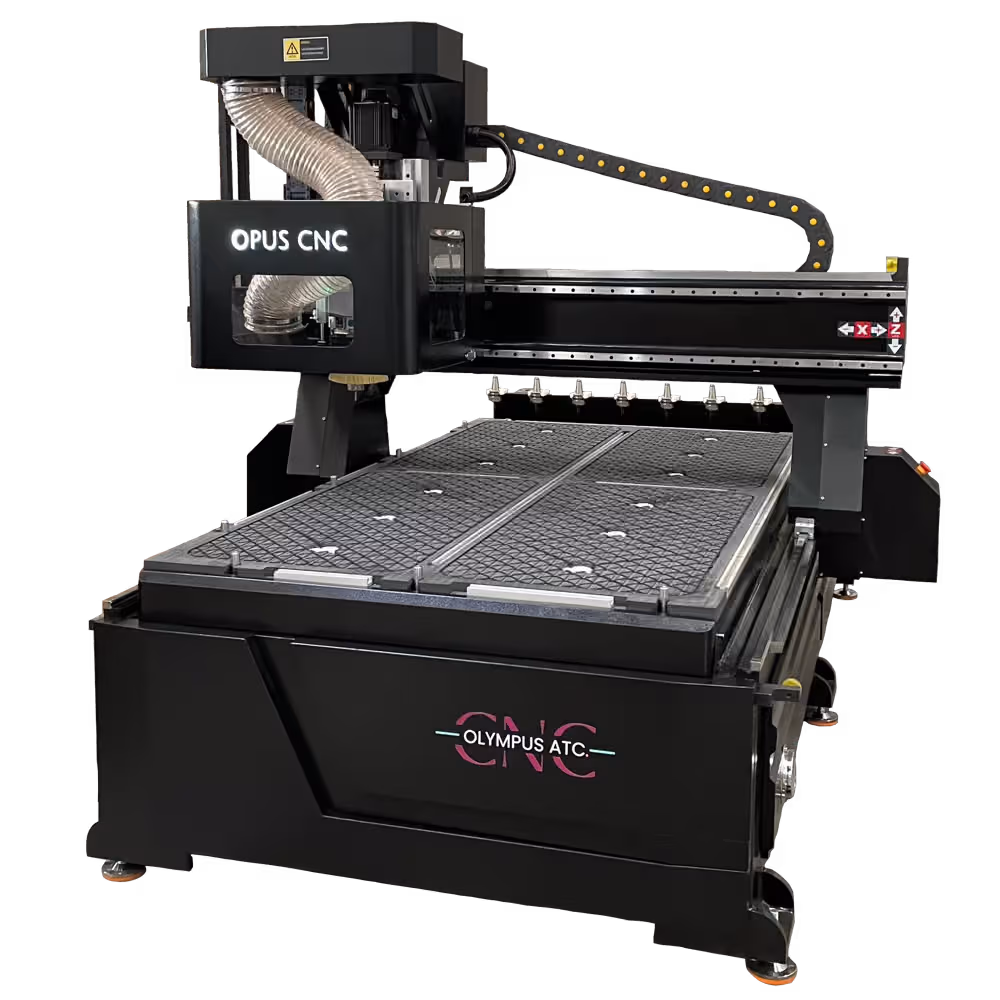

Olympus ATC
CNC Router

Tool Change Type: Linear 8 x ISO 30 Automatic Tool Change
Spindle: 9kW HQD Air-cooled Quick-release Spindle
Drives: Delta Servo Drives
Motors: Delta Servo Motors
Control System: Opus PRO Hand Controller
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 5.5kW Extraction System Included
Extras: Material Locating Pins
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training: Machine and Software Training Included

Prices from £16,995 plus VAT

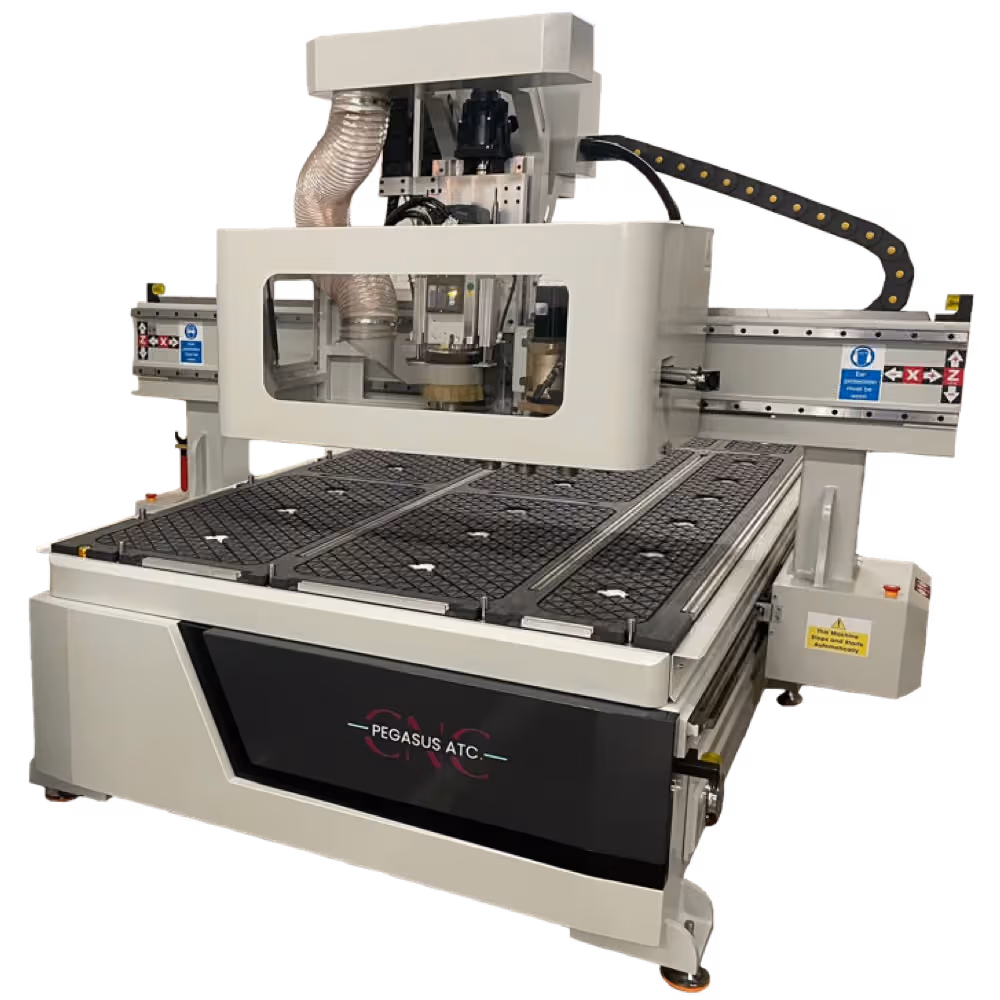

Pegasus ATC
CNC Router

Tool Change Type: Carousel 12 x ISO 30 Tools/Automatic Tool Change
Spindle: 9kW Italian HSD Spindle
Drives: Yaskawa Servo Drives
Motors: Yaskawa Servo Motors
Control: Syntec Control System
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 7.5kW Extraction System Included
Extras: Material Locating Pins | Bearing Wipers
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training: Machine and Software Training Included

Prices from £25,000 plus VAT

Ready to Modernise Your Cabinet Making?

Whether you’re just starting your CNC journey or ready to scale up, we’ll help you find the right machine, train your team, and support your growth.

REQUEST QUOTATION

Cabinet Making Company Testimonial

“I used to cut everything by hand with a track saw. Now with the Olympus, I go from CAD to carcass in under 30 minutes. It’s accurate, quick, and it’s helped me take on more jobs without needing more staff.”

Workshop in Focus: Independent Cabinet Maker, Middlesbrough
