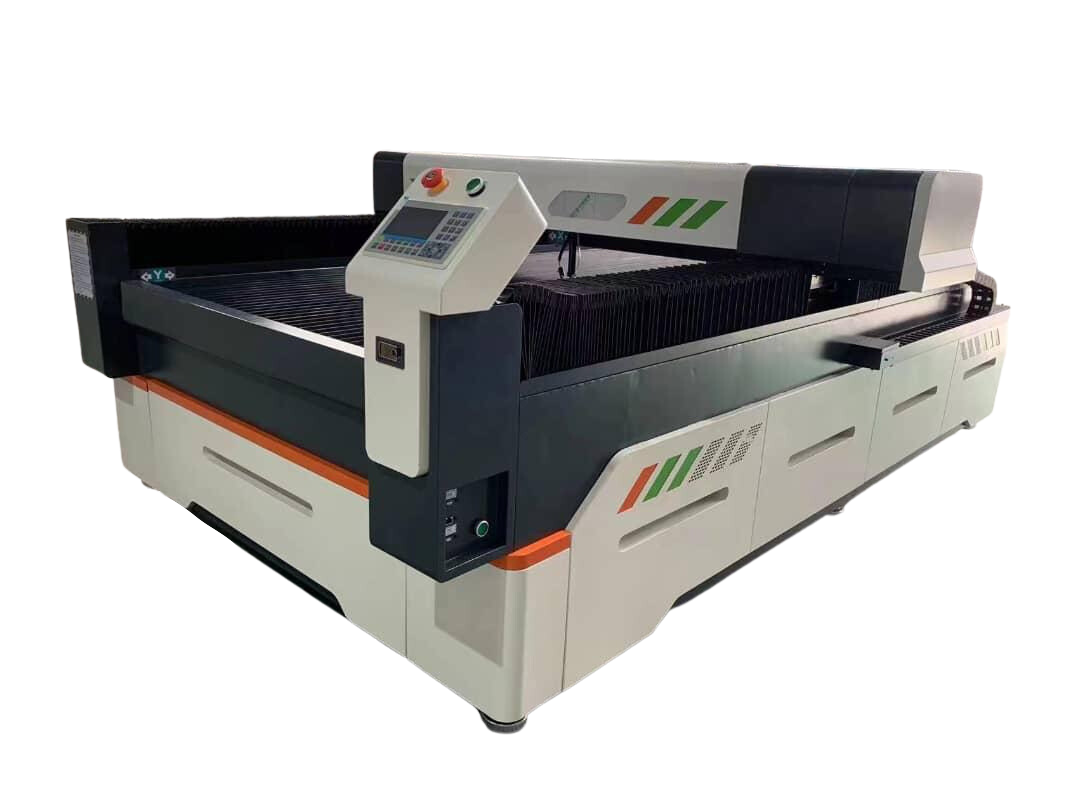

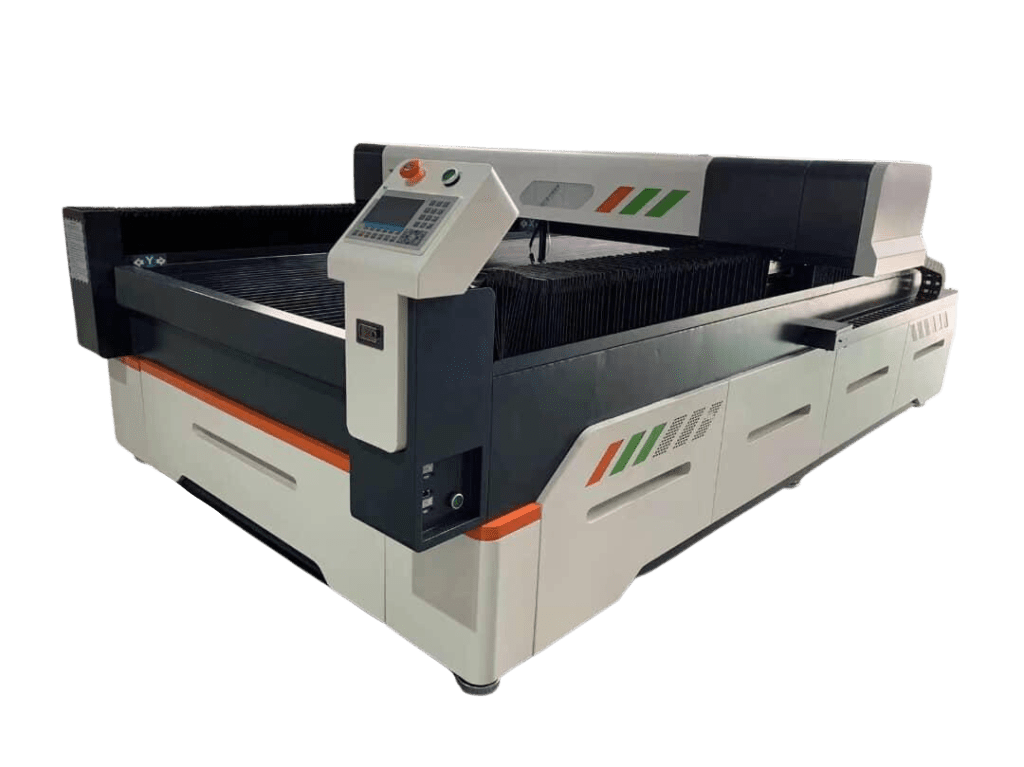

Oculus Flatbed CO₂ Laser
Large-format CO₂ laser cutting and engraving machinery for workshops, signage, fabrication, education, props and production environments.
The Oculus Flatbed laser is a cost-effective solution for businesses that need a larger working area for non-metal materials. Designed for cutting and engraving materials such as acrylic, MDF, plywood, plastics, card, leather and rubber, it combines practical production capability with Opus CNC delivery, installation, training and aftercare.
Built for Large-Format Non-Metal Cutting and Engraving
The Oculus Flatbed CO₂ laser gives businesses a larger working area than a benchtop or free-standing laser, making it well suited to signage, display work, education, set and prop production, prototyping, fabrication and creative manufacturing.
With RDWorks control, air assist, motorised up/down bed, CW chiller cooling and robust machine construction, the Oculus Flatbed is designed to provide a practical and dependable cutting and engraving platform for day-to-day production.
Industrial Features for Accurate CO₂ Laser Production
The Oculus Flatbed range brings together large working areas, proven CO₂ laser technology and the practical extras needed to keep production moving.
Large Bed Capacity Without Losing Detail
The flatbed format gives you space for larger sheets and bigger jobs, while the CO₂ laser system is capable of producing precise engraving, clean profiles and detailed cut work across a wide range of non-metal materials.
CO₂ Glass Tube
The Oculus Flatbed uses a CO₂ glass tube laser source, making it suitable for cutting and engraving many non-metal materials.
RDWorks Control
RDWorks provides laser control for creating, preparing and managing cutting and engraving work.
Motorised Bed
The motorised up/down bed helps with focusing and handling different material heights within the machine’s depth allowance.
Air Assist
Air assist is included to support cleaner cutting, reduce debris around the cut path and improve consistency.
CW Chiller Included
The supplied CW chiller supports stable operation and cooling of the CO₂ laser tube.
Training Included
Machine operation, software and safety training are included as part of the Opus CNC installation process.
Oculus Flatbed Laser Models
Choose from three large-format flatbed sizes depending on the sheet sizes, materials and production requirements of your workshop.
Oculus 1325
Flatbed CO₂ Laser- Working Area
- 1300 x 2500mm
- Dimensions
- 3050L x 1780W x 1180H
- CO₂ Power
- 100W or 130W
- Bed Type
- Blade table
- Up/Down Bed
- Motorised
- Voltage
- 240V
Oculus 1525
Flatbed CO₂ Laser- Working Area
- 1500 x 2500mm
- Dimensions
- 3050L x 1980W x 1180H
- CO₂ Power
- 100W or 130W
- Bed Type
- Blade table
- Up/Down Bed
- Motorised
- Voltage
- 240V
Oculus 2030
Flatbed CO₂ Laser- Working Area
- 2000 x 3000mm
- Dimensions
- 3550L x 2480W x 1180H
- CO₂ Power
- 100W, 130W or 150W
- Bed Type
- Blade table
- Up/Down Bed
- Motorised
- Voltage
- 240V
Oculus Flatbed Technical Summary
The figures below summarise the main flatbed laser specification. Final details can be confirmed by the Opus CNC team against your chosen model and configuration.
| Feature | Oculus Flatbed Specification | Notes |
|---|---|---|
| Power Required | 240V household plug | No 3-phase supply required for the standard Oculus laser range |
| Laser Source | CO₂ glass tube | Suited to non-metal cutting and engraving applications |
| Control System | RDWorks | LightBurn can be supplied as an upgrade, useful for Mac users |
| Cutting Speed | Up to 36,000mm/min | Dependent on material, thickness and settings |
| Engraving Speed | Up to 60,000mm/min | Dependent on material and engraving requirements |
| Cooling | CW chiller included | Supports stable CO₂ laser tube operation |
| Depth Allowance | 25mm | Material handling and cutting results depend on material type and setup |
CO₂ flatbed lasers are designed for non-metal materials. They are not metal-cutting fibre lasers. For metal sheet cutting, speak to Opus CNC about the Lumi ULTRA fibre laser range.
Oculus Flatbed Samples and Applications
From signage and acrylic work through to wood, MDF, model making and detailed engraving, the Oculus Flatbed is designed for versatile non-metal laser applications.
Request Oculus Flatbed Laser Pricing
Tell us which flatbed size you are interested in and a member of the Opus CNC team will come back to you with the most suitable quotation.
Oculus Flatbed Laser Quotation
Please complete the short form below and we will be in touch to discuss the correct machine size and configuration for your work.
Common Questions About the Oculus Flatbed Laser
Clear answers on software, training, delivery, power supply, materials and the support included with the Oculus Flatbed CO₂ laser range.
Is Opus CNC a UK company?
Yes. Opus CNC is based in Durham in the North East of England and supplies, installs and supports machinery throughout the UK.
What software is supplied?
RDWorks is supplied with the Oculus laser range. LightBurn can also be supplied as an upgrade, which is useful for customers using Mac computers.
Is training included?
Yes. Machine and software training is included and covers machine operation, software use and safety, tailored to the operator’s experience level.
Is delivery included?
Yes. Delivery is included, with installation and training carried out by Opus CNC engineers. A suitable forklift will be required for offloading.
Do I need 3-phase power?
No. The Oculus Flatbed laser range uses a 240V supply and does not require a 3-phase electrical supply.
What materials can it cut?
The Oculus Flatbed is designed for non-metal materials such as acrylic, MDF, plywood, plastics, card, leather and rubber. For metal cutting, the Lumi ULTRA fibre laser range is more suitable.
Spread the Cost of Your Oculus Flatbed Laser
Opus CNC works with Anglo Scottish Asset Finance to help businesses explore competitive asset finance options for laser cutters, CNC routers and workshop machinery.
Asset Finance for Laser Machinery
Explore machinery finance options for the Oculus Flatbed laser range with support from the Opus CNC team and Anglo Scottish Asset Finance.
Ready to Discuss the Right Oculus Flatbed Laser for Your Business?
Speak with Opus CNC about bed size, power, materials, software, access requirements, delivery, installation, training and ongoing support.
