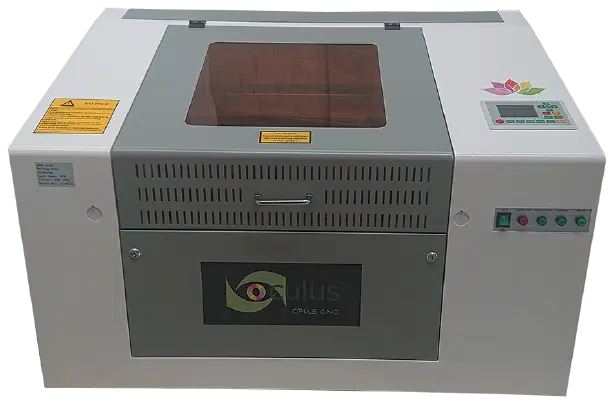

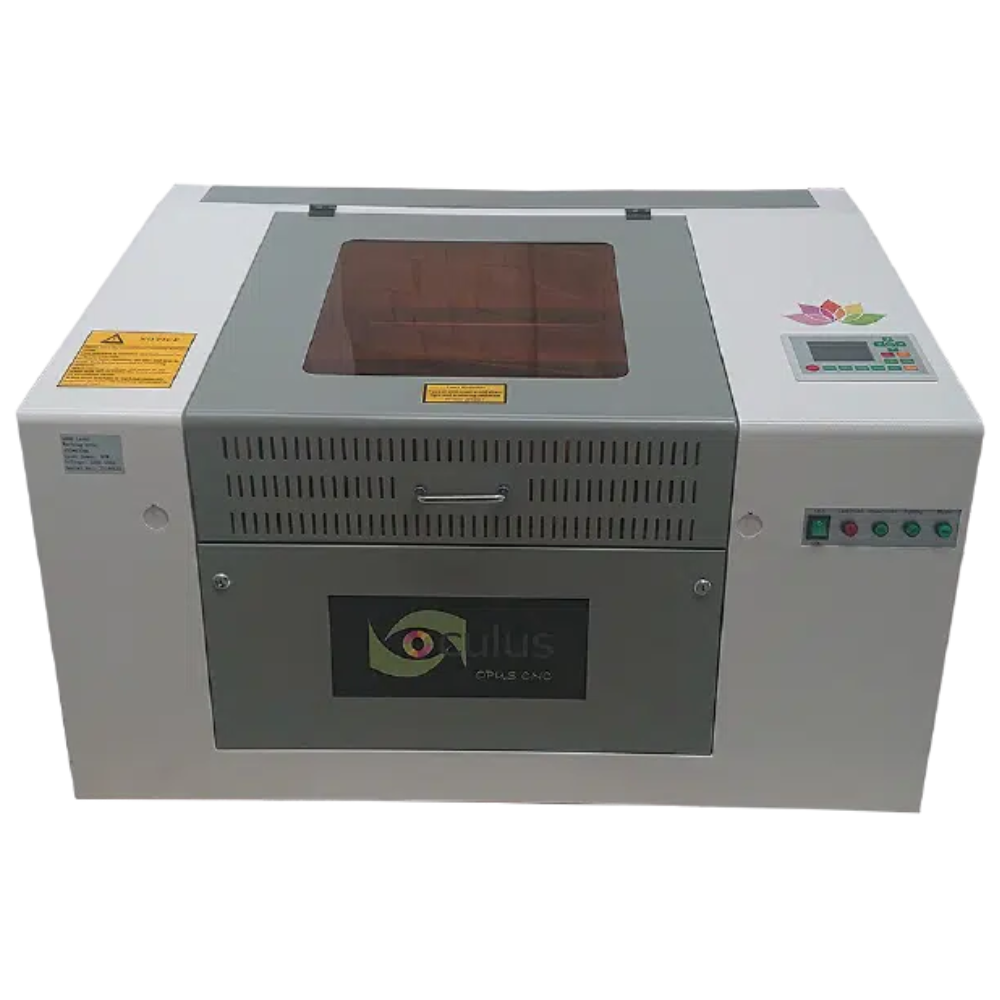

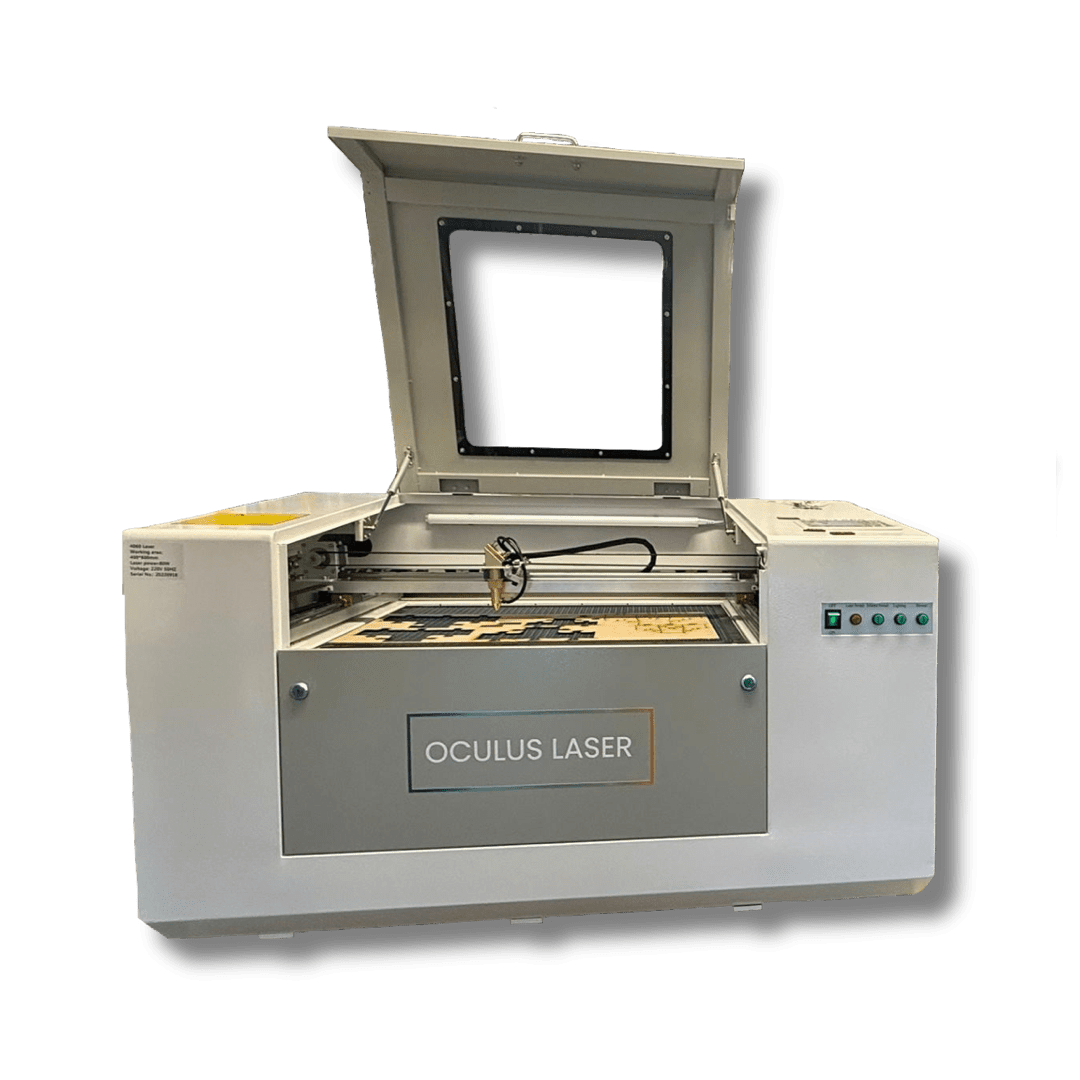

Oculus Benchtop CO₂ Laser
Compact 80W CO₂ laser cutting and engraving machinery for workshops, schools, makers, personalisation and gift production.
The Oculus Benchtop laser is designed to deliver professional cutting and engraving performance from a smaller machine footprint. With two compact bed sizes, RDWorks control, a motorised up/down bed and 240V power requirement, it is a practical choice for businesses, classrooms and creative environments where space matters.
Small Footprint, Serious Cutting and Engraving Capability
The Oculus Benchtop laser is ideal for users who need a compact CO₂ laser cutter without stepping away from practical production capability. It is well suited to engraving, personalisation, model making, classroom projects, craft production, signage samples and cutting suitable non-metal materials.
With RDWorks control, air assist, a honeycomb table, motorised up/down bed and CW chiller included, the Oculus Benchtop provides a complete and easy-to-use platform for accurate cutting and engraving work.
Designed for Compact, Professional CO₂ Laser Work
The Oculus Benchtop brings together practical features, straightforward software and a compact machine footprint for everyday cutting and engraving.

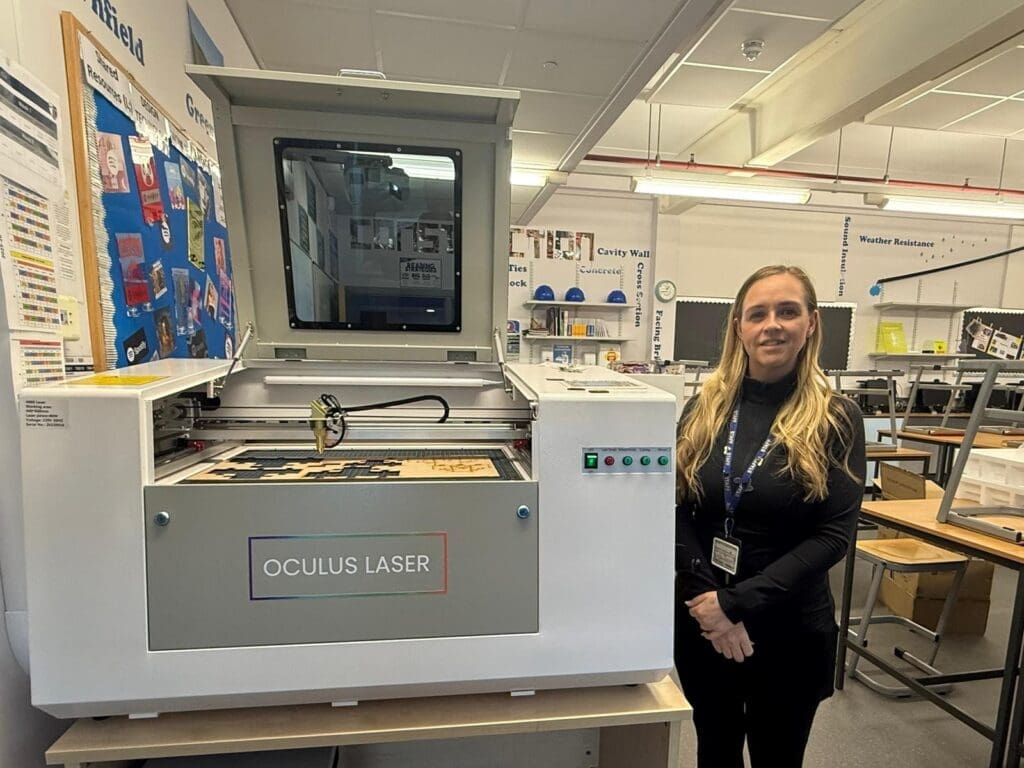

Ideal for Workshops, Schools and the Gift Industry
From personalised products and classroom projects to prototypes, display samples and small production runs, the Oculus Benchtop gives users a versatile CO₂ laser platform in a manageable size.
80W CO₂ Power
The Oculus Benchtop comes with 80W CO₂ power as standard for cutting and engraving suitable non-metal materials.
Motorised Bed
The motorised up/down bed helps operators set cutting depths and focus positions more easily.
RDWorks Control
RDWorks software is supplied and covered during training, giving operators control over cutting and engraving jobs.
240V Supply
The Oculus Benchtop runs from a standard 240V household plug, so 3-phase power is not required.
Safety Features
Safety cut-off features are included to support safer day-to-day operation in workshop and education settings.
Opus Support
Delivery, installation, machine and software training, aftercare and warranty support are all part of the Opus package.
Oculus Benchtop Laser Models
Choose between the Oculus 5030 and Oculus 6040 benchtop models depending on your required working area and available space.
Oculus 5030 Benchtop Laser
Compact CO₂ Laser- Working Area
- 500 x 300mm
- Dimensions
- 710L x 1335W x 600H
- CO₂ Power
- 80W
- Laser Source
- CO₂ glass tube
- Control
- RDWorks
- Voltage
- 240V
- Bed Type
- Honeycomb table
- Depth Allowance
- 200mm
Oculus 6040 Benchtop Laser
Compact CO₂ Laser- Working Area
- 600 x 400mm
- Dimensions
- 810L x 1435W x 600H
- CO₂ Power
- 80W
- Laser Source
- CO₂ glass tube
- Control
- RDWorks
- Voltage
- 240V
- Bed Type
- Honeycomb table
- Depth Allowance
- 200mm
Oculus Benchtop Technical Summary
A compact CO₂ laser platform with the key essentials included for cutting, engraving and day-to-day operation.
| Feature | Oculus Benchtop Specification |
|---|---|
| CO₂ Power | 80W |
| Laser Source | CO₂ glass tube |
| Working Areas | 500 x 300mm or 600 x 400mm |
| Power Required | 240V household plug |
| Control System | RDWorks control system |
| Cutting Speed | Up to 36,000mm/min |
| Engraving Speed | Up to 60,000mm/min |
| Bed Type | Honeycomb table with motorised up/down bed |
| Cooling | CW chiller included |
| Extraction | External hose |
| Guide Rails | Taiwan square guide rails |
| File Suitability | .DXF, .JPG, .PNG, .BMP, .GIF and similar file types |
Also included: delivery, installation, machine and software training, RDWorks software, laser safety glasses, safety cut-off features and 1 year parts and labour warranty. Upgrade options include BOFA AD 350 filtration, rotary device, LightBurn software and service packages.
Oculus Benchtop Samples and Applications
Suitable for many creative, education and small production applications, including engraving, personalisation, cutting soft woods, acrylic work, craft products and model making.
Request Oculus Benchtop Laser Pricing
Tell us which benchtop size you are interested in and a member of the Opus CNC team will come back to you with the most suitable quotation.
Oculus Benchtop Laser Quotation
Please complete the short form below and we will be in touch to discuss the correct benchtop model for your work.
Common Questions About the Oculus Benchtop Laser
Clear answers on software, training, delivery, power supply, bed sizes and the support included with the Oculus Benchtop CO₂ laser range.
Is Opus CNC a UK company?
Yes. Opus CNC is based in Durham in the North East of England and supplies, installs and supports machinery throughout the UK.
What software is supplied?
RDWorks comes with the Oculus Benchtop laser and is covered during training. LightBurn can also be supplied as an upgrade, including for Mac users.
Is training included?
Yes. Machine and software training is included and covers operation, software use and safety. Training is tailored to the operator’s experience level.
Is delivery included?
Yes. Delivery is included and Opus CNC will position the machine in a lower ground-floor room. If the machine needs to be moved to another floor, please discuss access requirements with the team in advance.
Do I need 3-phase power?
No. Oculus Benchtop lasers require a 240V supply and can operate from a standard household plug.
What bed sizes are available?
The Oculus Benchtop range is available with 500 x 300mm and 600 x 400mm working areas. Larger CO₂ laser sizes are available in the Oculus Free-Standing and Oculus Flatbed ranges.
Spread the Cost of Your Oculus Benchtop Laser
Opus CNC works with Anglo Scottish Asset Finance to help businesses explore competitive asset finance options for CNC routers, laser cutters and workshop machinery.
Finance Options Through Anglo Scottish Asset Finance
A practical route for businesses that want to invest in laser machinery while managing working capital.
Ready to Discuss the Right Oculus Benchtop Laser for Your Business?
Speak with Opus CNC about bed size, materials, cutting and engraving requirements, access, delivery, installation, training and ongoing support.
