How to Keep Your CNC Router Cutting Like New
Consistent cut quality does not depend on complicated maintenance routines. Clean working areas, healthy tooling, reliable vacuum hold-down, regular checks and planned servicing all help protect accuracy and reduce avoidable downtime.
Every CNC router begins life producing smooth edges, repeatable dimensions and reliable results. Over time, dust, worn tooling, vacuum leaks and small setup changes can gradually affect performance. The good news is that most of this can be controlled through simple, regular habits.
Daily care makes the biggest difference
Dust and debris do more than make the machine look untidy. Fine particles can reduce vacuum performance, gather around motion components, affect sensors and increase heat around the spindle and tooling.
A short cleaning routine at the end of each job or shift helps keep the machine ready for the next piece of work and makes developing problems easier to spot.
A few minutes of cleaning each day is far easier than recovering from a damaged job or an avoidable breakdown.
Clean the bed
Remove dust and loose debris so the next sheet sits flat and holds correctly.
Check extraction
Restricted airflow reduces dust capture and allows contamination to build up.
Inspect tooling
Blunt or damaged cutters create heat, poor edges and additional spindle load.
Listen carefully
Changes in sound can provide an early warning of wear, vibration or poor cutting.
Keep the bed and working area clean
Vacuum the bed after machining and remove loose offcuts before placing the next sheet. Dust beneath the material can affect flatness, suction and cutting depth.
Keep rails, racks and exposed motion areas free from compacted debris, following the cleaning and lubrication guidance for the specific machine.
Maintain the extraction system
Empty collection bags, drums or bins before they become overfilled. Suction can fall quickly when filters are restricted or collection points are full.
Check hoses, ducting and the dust shoe for blockages, damage or poor positioning.

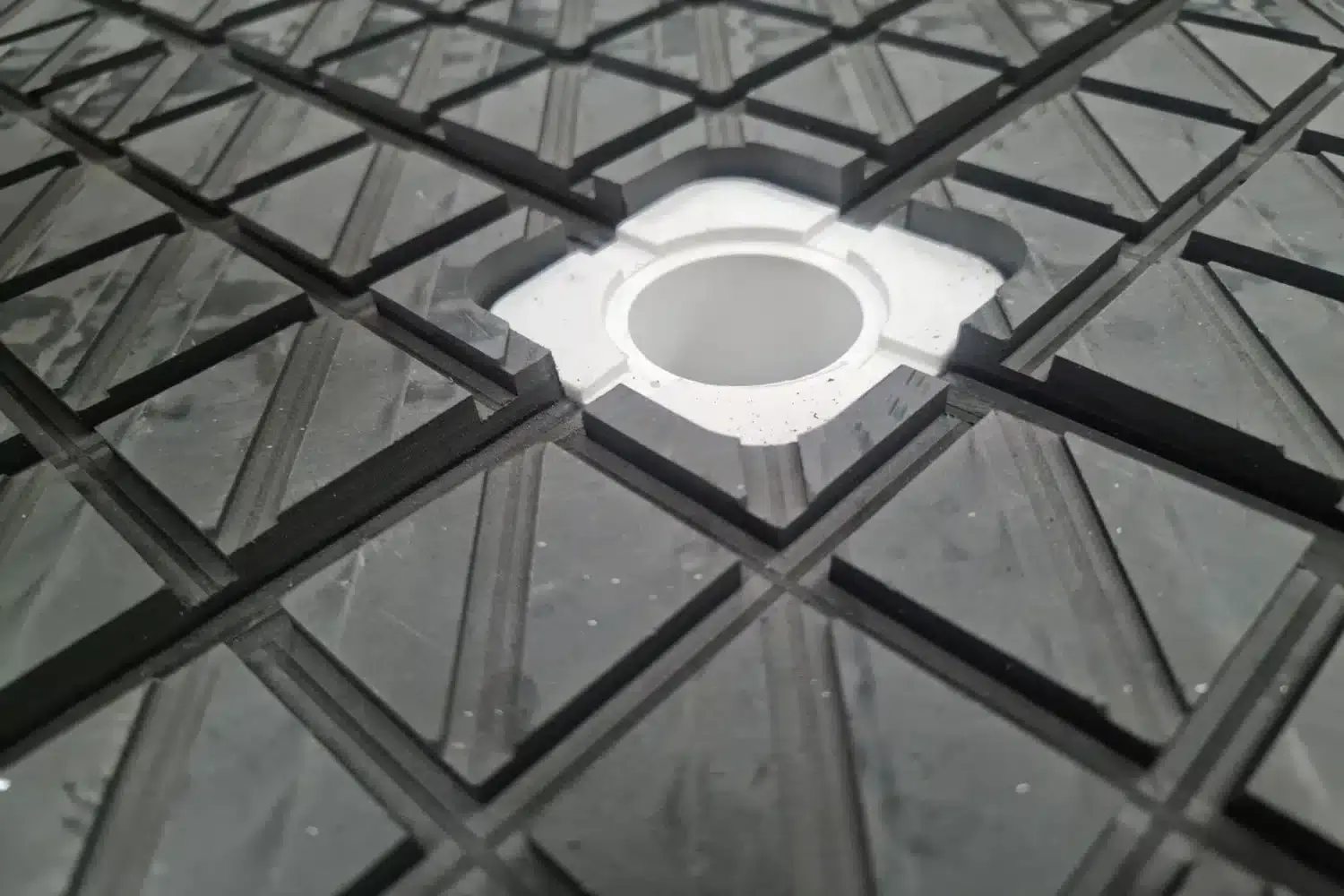

The vacuum bed is the foundation of reliable cutting
Small air leaks, blocked zones, damaged seals and an uneven spoilboard can allow the material to move. This can cause chatter, inaccurate parts, rough edges and broken cutters. If a previously reliable job begins moving, inspect the hold-down system before changing the program.
Check vacuum zones and seals
Confirm that the active zones match the size and position of the material. Closing unused zones concentrates the available suction beneath the workpiece.
- Inspect seals for damage, gaps or trapped debris.
- Listen for obvious air leaks around the bed.
- Check hoses and connections to the vacuum pump.
- Keep the bed surface clean before loading material.
Keep the spoilboard flat and usable
Spoilboards become grooved, contaminated and uneven over time. Once the reference surface deteriorates, vacuum performance and cutting depth can become inconsistent.
Skim the spoilboard when required and replace it when it has become too thin or damaged to provide reliable support.
Tooling, collets and the spindle need regular attention
Precision begins where the cutter is held. Dust inside a collet or tool holder can affect grip and runout, while worn tooling creates excess heat, vibration and poor edge quality.
Clean tool holders and collets carefully, inspect them for wear and replace damaged components rather than trying to continue using them.
May indicate a blunt cutter, unsuitable feed rate or poor chip clearance.
Check the cutter, collet, tool holder and material hold-down.
Stop and investigate unusual whining, growling or rough running.
Inspect tool condition, runout, spoilboard flatness and vacuum strength.
It is usually less expensive to replace a worn collet or cutter than to repair the damage caused when it fails.
Protect the spindle through sensible operation
Follow the recommended startup, lubrication and operating procedures for the spindle fitted to the machine. Avoid placing a cold spindle immediately under a demanding production load where a warm-up routine is specified.
If the spindle begins running hotter, louder or less smoothly, stop and seek technical advice rather than continuing until the issue becomes more serious.
Do not ignore changes in cutting sound
Experienced operators become familiar with how a healthy cut sounds. Squealing, rattling or a new vibration can indicate a dull tool, poor hold-down, incorrect settings or a developing mechanical issue.
Investigating the first warning sign is normally quicker than recovering from a damaged sheet or broken tool.
Check calibration and back up important settings
Maintenance also includes the digital side of the machine. Use simple test cuts to confirm repeatability and dimensional accuracy at sensible intervals.
- Verify axis accuracy with a measured test cut.
- Check work offsets and tool-length settings.
- Back up tool libraries and machine configurations.
- Review toolpaths when cycle time or tool load changes.
Avoid unnecessary software changes
When performance changes, check tooling, material movement, bed condition and cleanliness before altering a previously reliable machine setting.
Unplanned parameter changes can make diagnosis harder and may introduce a second problem.
Preventative servicing supports long-term reliability
Daily cleaning and operator checks are important, but they do not replace a structured inspection by an experienced engineer. A service visit can identify wear, alignment issues, damaged components and developing electrical or mechanical concerns before they become more disruptive.
The exact service interval should reflect the machine, workload and working environment. Opus CNC offers one-off servicing and planned service packages to help customers maintain their machinery and reduce avoidable downtime.
Inspection
Review wear, damage, alignment, safety features and machine condition.
Maintenance
Clean key areas, replenish suitable lubricants and verify components.
Prevention
Identify developing issues before they interrupt production.
Reporting
Receive practical recommendations and clear next steps after the visit.
Daily and weekly habits
- Clean the bed and remove loose offcuts.
- Check extraction airflow and collection levels.
- Inspect cutters, collets and tool holders.
- Look for leaks, vibration or unusual noise.
- Keep the spoilboard and vacuum zones usable.
Periodic checks
- Confirm axis accuracy and machine repeatability.
- Inspect seals, hoses and vacuum connections.
- Review lubrication and moving components.
- Back up settings and tool libraries.
- Arrange servicing before small issues become downtime.
Operator ownership keeps machines performing
The cleanest and most reliable CNC routers are normally looked after by operators who take responsibility for the machine. They notice changes in sound, suction, finish and movement before they become obvious failures.
Machines such as the Olympus ATC CNC router and Pegasus ATC CNC router are built for production use, but their long-term performance still depends on sensible care, maintenance and operator awareness.
A CNC router does not remain accurate simply because it was accurate when installed. Consistent care preserves that performance.
Is your CNC router due a service?
Speak to the Opus CNC servicing team about a one-off inspection, planned maintenance or practical support for your machine.
