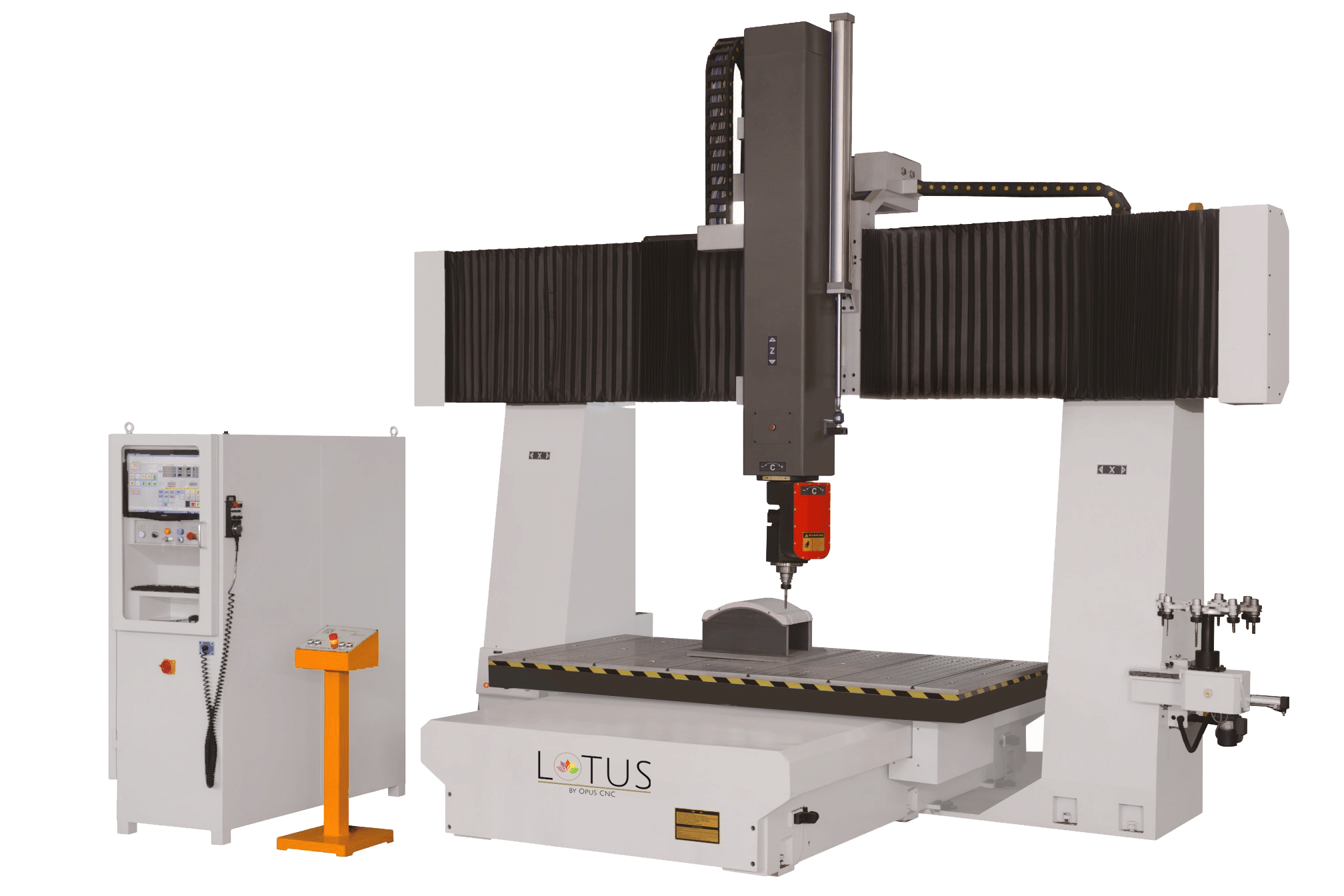

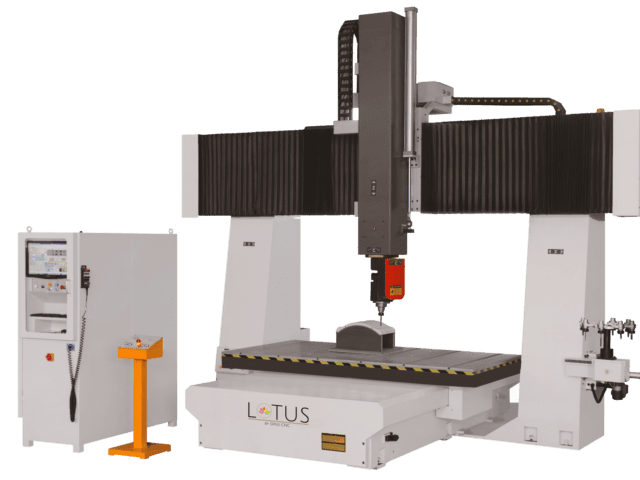

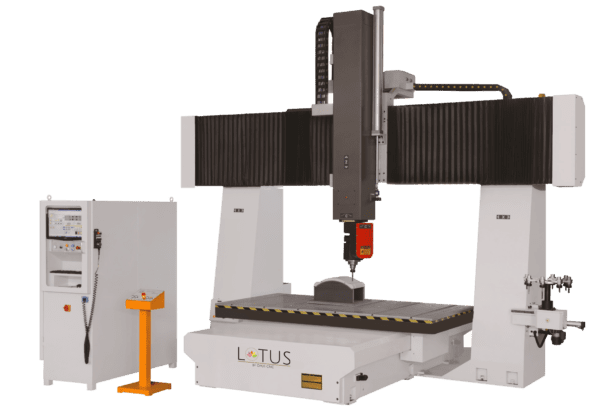

LOTUS 5 AXIS
CNC ROUTER
Ultra-Spec Automatic Tool Change CNC Router​
The Lotus 5 Axis CNC Router is not just a machine; it’s a powerhouse of innovation, designed for complex and intricate machining tasks. With its full 5-axis simultaneous machining capability, this router excels in 3D machining, allowing for the creation of highly detailed and complex geometries that would be impossible with traditional 3-axis machines. Whether you’re working with intricate designs or large-scale projects, the Lotus 5 Axis CNC Router delivers precision and accuracy with every cut.Â
LOTUS 5 AXIS
CNC ROUTER
Ultra-Spec Automatic Tool Change CNC Router​
The Lotus 5 Axis CNC Router is not just a machine; it’s a powerhouse of innovation, designed for complex and intricate machining tasks. With its full 5-axis simultaneous machining capability, this router excels in 3D machining, allowing for the creation of highly detailed and complex geometries that would be impossible with traditional 3-axis machines. Whether you’re working with intricate designs or large-scale projects, the Lotus 5 Axis CNC Router delivers precision and accuracy with every cut.Â
LOTUS 5 AXIS
CNC ROUTER
Ultra-Spec Automatic Tool Change CNC Router​
The Lotus 5 Axis CNC Router is not just a machine; it’s a powerhouse of innovation, designed for complex and intricate machining tasks. With its full 5-axis simultaneous machining capability, this router excels in 3D machining, allowing for the creation of highly detailed and complex geometries that would be impossible with traditional 3-axis machines. Whether you’re working with intricate designs or large-scale projects, the Lotus 5 Axis CNC Router delivers precision and accuracy with every cut.Â
LOTUS 5 AXIS
CNC ROUTER
Ultra-Spec Automatic Tool Change CNC Router​
The Lotus 5 Axis CNC Router is not just a machine; it’s a powerhouse of innovation, designed for complex and intricate machining tasks. With its full 5-axis simultaneous machining capability, this router excels in 3D machining, allowing for the creation of highly detailed and complex geometries that would be impossible with traditional 3-axis machines. Whether you’re working with intricate designs or large-scale projects, the Lotus 5 Axis CNC Router delivers precision and accuracy with every cut.Â
Overview
Automatic Tool Change
Comprising of 12 x ISO 30 tools, the Lotus 5 axis CNC router offers the user quick tool changes on a carousel system, without the need for manual intervention.
Complex Geometries
These machines can work on three-dimensional surfaces, enabling the creation of intricate and complex designs that would be difficult or impossible to achieve with a 3 or 4 axis CNC machine. Â
Enhanced Precision
Lotus 5-axis CNC routers can manipulate the cutting tool from multiple angles, allowing for intricate and precise cuts, contours, and shapes. This results in high-precision finished products.Â
Improved Precision
With the ability to approach workpieces from different angles, the Lotus 5-axis CNC router can certainly achieve smoother surface finishes, reducing the need for post-finishing.
Versatile CNC Machine
The Lotus can handle a wide range of materials, including wood, aluminium, plastics, and composites, making them suitable for various industries such as aerospace, automotive, and woodworking.Â
Syntec Control system
The Syntec 5 axis control system comes as standard with all of the Lotus CNC routers. This sophisticated CNC control system is feature-packed and gives the user ease of control and numerous functions such as tool wear compensation.
Machine Stability
The moving table enhances the Lotus’s stability and strength, complementing the stationary gantry system, ensuring precise and consistent cutting performance. This design minimises vibration and enhances accuracy, making it ideal for high-precision tasks.
Separate Control Box
Having the control box integrated into the CNC carries risks such as fire and component failure due to excessive debris contamination.
Hiteco 11kW Spindle
All Lotus 5 axis CNC routers come with the renowned Hiteco 11kW water-cooled spindle, offering accuracy and precision at its finest.Â
Bespoke Sizes
Since Lotus CNC routers are custom-made, we have the flexibility to tailor the sizes to match your specific needs. Our team of engineers is ready to collaborate with you and provide guidance.
Moving Bed
As standard the Lotus 5 axis CNC router comes with moving tables with an aluminium bed.
Fusion 360 Compatible
Working alongside Fusion 360, the Lotus 5-axis CNC router offers extensive 3D capabilities. All Opus engineers are trained fully with Fusion 360 CAD/CAM software.
Warranty
We offer 2 years full parts and labour warranty with all Lotus 5 axis CNC machines. This longer warranty period shows we have greater confidence in our Lotus 5 axis CNC’s durability and quality.
Delivery
Your Lotus 5 axis CNC will be delivered ATC by a curtain side lorry, which will require a heavy-duty forklift.Â
Installation
One of the Opus engineers will carry out the full installation. All Opus engineers are experienced and go through vigorous in-house training programs throughout their Opus careers.
Training
Machine and software training is fully inclusive with the Lotus 5 Axis CNC and is divided into three sections: machine operation, software, and safety. We customise all training to match individual capabilities.
Want to see more?
Check Out The Lotus 5 Axis CNC in Action Below!
Fully Customised CNC Machine!
The Lotus 5 Axis CNC is an excellent choice due to its fully customisable design, allowing you to tailor the machine to meet your specific needs and control all aspects of your machining process.
The Lotus 5 Axis CNC Router with its advanced automatic tool change system represents the pinnacle of CNC technology, offering unmatched precision, versatility, and efficiency for your most demanding machining tasks.
This advanced machine is perfect for industries that demand high-quality and precise machining, such as aerospace, automotive, mold-making, and more. Its ability to move the cutting tool along five different axes simultaneously allows for greater flexibility in machining angles and complex contours, drastically reducing the need for additional setups and manual interventions.
In summary, the Lotus 5 Axis CNC Router with its advanced automatic tool change system represents the pinnacle of CNC technology, offering unmatched precision, versatility, and efficiency for your most demanding machining tasks.
Request A Quotation
Want to join our long list of satisfied customers? Then, why not fill in the form to receive a no-obligation quotation from one of our experienced engineers?
Don’t worry, we won’t hassle any potential customer! All the Opus team are engineers, not sales-people!Â
Want to join our long list of satisfied customers? Then, why not fill in the form below to receive a no-obligation quotation from one of our experienced engineers?
Don’t worry, we won’t hassle any potential customer! All the Opus team are engineers, not sales-people!
SPREAD THE COST
We understand how vital cash flow can be, which is why we work with leading asset finance provider Anglo Scottish Asset Finance who offer competitive business finance across the UK.
Queries & Answers
Is Opus a UK company?
Yes, we are based in the North East of England and we have an extensive team of engineers who work throughout the whole of the UK, including an engineer who is based in Northern Ireland.
What software is supplied?
Our team of engineers give Fusion 360 training and have the required post-processor to enable the Lotus CNC machine to work seamlessly.Â
Is training included?
Certainly! Our team of engineers give Fusion 360 training and have the required post-processor to enable the Lotus CNC machine to work seamlessly. Once we have carried out the installation you will be provided with machine and Fusion 360 training.Â
Is tooling supplied?
Understanding that each customer possesses unique tooling requirements, our provision of tooling is primarily geared towards the training process. We advise discussing with seasoned tooling suppliers, like Cutting Edge Carbide, to address your specific tooling needs. Additionally, it’s important to highlight that all Lotus 5 axis CNC routers seamlessly accommodate ER32 collets.
Do I need 3-phase electric supply?
Lotus 5 axis CNC routers come equipped with a 3-phase connectivity setup. Single phase is unavailable in the Lotus range of CNC routers.
What bed sizes are available?
We offer the following standard sizes, 1300x1300mm, 1300x2500mm, 1525x3050mm, 2100x3050mm, 2000x4000mm and 2000x6000mm. We also manufacture bespoke sized Lotus 5 axis CNC routers. Ask one of the team if you need a bed size which isn’t mentioned above.
