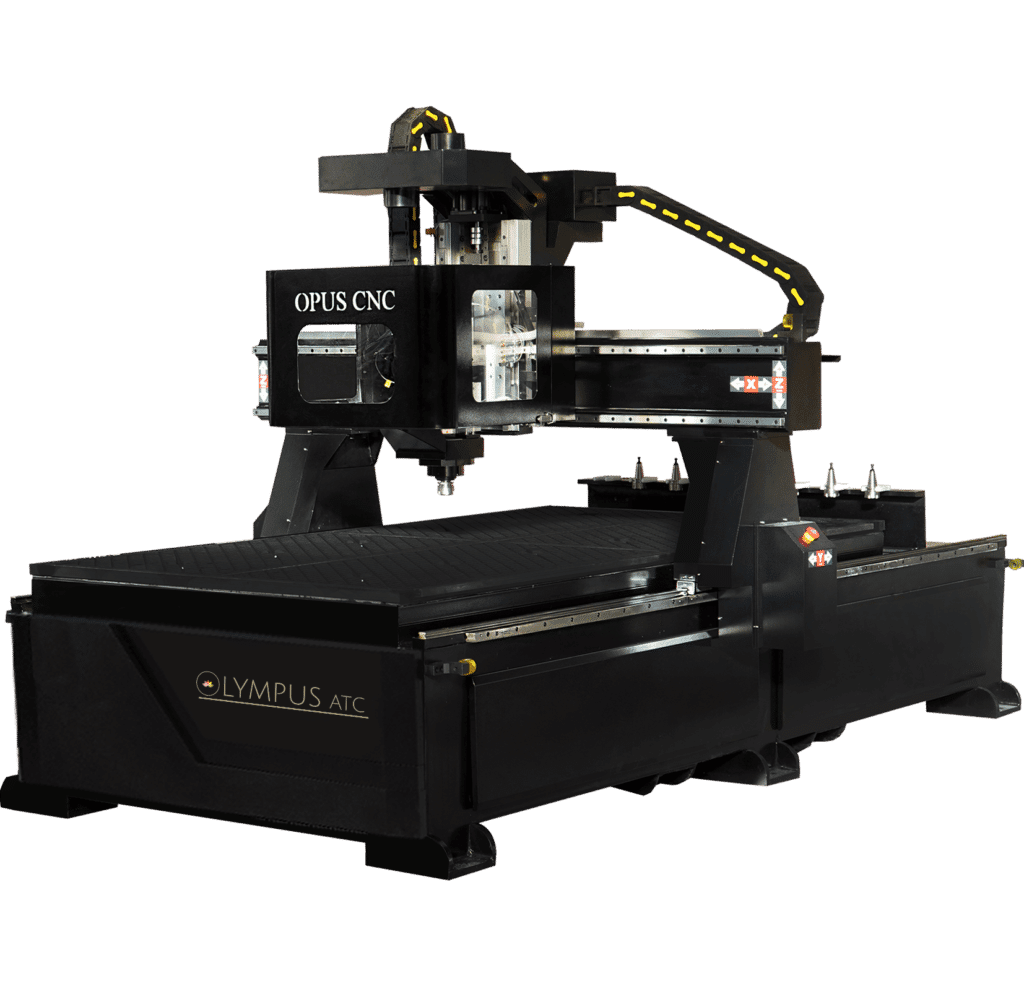

OLYMPUS ATC
CNC ROUTER
Popular Automatic Tool Change CNC Router
Whether you’re crafting intricate designs or tackling large-scale projects, Olympus ATC CNC machines deliver the reliability and accuracy you need to bring your ideas to life. Elevate your production, maximise efficiency, and create with confidence.
The Olympus ATC (automatic tool change) CNC router comes equipped with up to 8 tool positions as standard.
Made from robust, high-quality materials ensures the Olympus ATC offers long-term reliability and durability.
OLYMPUS ATC
CNC ROUTER
Popular Automatic Tool Change CNC Router
Whether you’re crafting intricate designs or tackling large-scale projects, Olympus ATC CNC machines deliver the reliability and accuracy you need to bring your ideas to life. Elevate your production, maximise efficiency, and create with confidence.
The Olympus ATC (automatic tool change) CNC router comes equipped with up to 8 tool positions as standard.
Made from robust, high-quality materials ensures the Olympus ATC offers long-term reliability and durability.
OLYMPUS ATC
CNC ROUTER
Popular Automatic Tool Change CNC Router
Whether you’re crafting intricate designs or tackling large-scale projects, Olympus ATC CNC machines deliver the reliability and accuracy you need to bring your ideas to life. Elevate your production, maximise efficiency, and create with confidence.
The Olympus ATC (automatic tool change) CNC router comes equipped with up to 8 tool positions as standard.
Made from robust, high-quality materials ensures the Olympus ATC offers long-term reliability and durability.
OLYMPUS ATC
CNC ROUTER
Popular Automatic Tool Change CNC Router
Whether you’re crafting intricate designs or tackling large-scale projects, Olympus ATC CNC machines deliver the reliability and accuracy you need to bring your ideas to life. Elevate your production, maximise efficiency, and create with confidence.
The Olympus ATC (automatic tool change) CNC router comes equipped with up to 8 tool positions as standard.
Made from robust, high-quality materials ensures the Olympus ATC offers long-term reliability and durability.
OLYMPUS ATC KEY FEATURES
Overview
Automatic Tool Change
Comprising of 8 x ISO 30 tools, the Olympus ATC CNC router offers the user quick tool changes without the need for manual intervention.
Servo Drives & Motors
Typically, servo motors can operate at higher speeds and are more efficient at translating movement due to their design. They offer smoother motion due to their design. This results in less vibration and smoother operation.Â
9kW Quick-release Spindle
With 9kW of power, the Olympus ATC spindle can handle heavy-duty cutting tasks with ease. This makes it suitable for machining tough materials such as metals, hardwoods, and composites.
5.5kW Extraction System
With 5.5kW of power, the extraction system can efficiently remove large volumes of dust, chips, and other particles from the cutting area. This is essential for maintaining a clean workspace and preventing material buildup around the tool and workpiece.Â
Dual Stage Vacuums
We include up to 4 x 7.5kW dual-stage, 3 phase vacuum pumps as standard on all of the Olympus ATC CNC routers.Â
Opus PRO Control
The Opus PRO control system is feature-packed, yet remains easy-to-use. Experienced and novice users will feel confident using the Olympus ATC control system.
Unique Matrix Bed
Designed by Opus CNC, the enhanced zoned bed gives full suction throughout, unlike standard CNCs. Â
Separate Control Box
Having the control box integrated into the CNC carries risks such as fire and component failure due to excessive debris contamination.
Warranty
We offer 2 years full parts and labour warranty with all Olympus ATC CNC machines. This longer warranty period shows we have greater confidence in our Olympus CNC’s durability and quality.
Delivery
Depending on the size, your Olympus ATC CNC router will be delivered by a curtain side lorry, which will require a forklift. Alternatively, delivery can be made by a HIAB, with a crane.
Installation
One of the Opus engineers will carry out the full installation. All Opus engineers are experienced and go through vigorous in-house training programs throughout their Opus careers.
Training
Machine and software training is fully inclusive with the Olympus ATC CNC and is divided into three sections: machine operation, software, and safety. We customise all training to match individual capabilities.
Models
Olympus 1313 ATC CNC Router
Working Area: 1300 x 1300mm
Dimensions: L2310L x W2222
9kW HQD Air-Cooled Spindle
Linear Automatic Tool Change
8 ISO Tool Holders Included
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW
Opus PRO Control System
Servo Motors & Drives
5.5kW Extraction System
Weight 2,200kg
Olympus 1325 ATC CNC Router
Working Area: 1300 x 2500mm
Dimensions: L3410L x W2222
9kW HQD Air-Cooled Spindle
Linear Automatic Tool Change
8 ISO Tool Holders Included
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW
Opus PRO Control System
Servo Motors & Drives
5.5kW Extraction System
Weight 2,400kg
Olympus 1530 ATC CNC Router
Working Area: 1525 x 3050mm
Dimensions: L3910L x W2422
9kW HQD Air-Cooled Spindle
Linear Automatic Tool Change
8 ISO Tool Holders Included
Gantry Clearance: 300mm
Vacuum Pump: 7.5kW
Opus PRO Control System
Servo Motors & Drives
5.5kW Extraction System
Weight 2,600kg
Olympus 2030 ATC CNC Router
Working Area: 2100 x 3050mm
Dimensions: L3910L x W2892
9kW HQD Air-Cooled Spindle
Linear Automatic Tool Change
8 ISO Tool Holders Included
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW x 2
Opus PRO Control System
Servo Motors & Drives
5.5kW Extraction System
Weight 2,700kg
Olympus 2040 ATC CNC Router
Working Area: 2000 x 4000mm
Dimensions: L4910L x W2892
9kW HQD Air-Cooled Spindle
Linear Automatic Tool Change
8 ISO Tool Holders Included
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW x 2
Opus PRO Control System
Servo Motors & Drives
5.5kW Extraction System
Weight 2,900kg
Olympus 2060 ATC CNC Router
Working Area: 2000 x 6000mm
Dimensions: L6910Â x W2892
9kW HQD Air-Cooled Spindle
Linear Automatic Tool Change
8 ISO Tool Holders Included
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW x 2
Opus PRO Control System
Servo Motors & Drives
5.5kW Extraction System
Weight 3,000kg
Want to see more?
Check Out The Olympus ATC CNC in Action Below!
Request A Quotation
Want to join our long list of satisfied customers? Then, why not fill in the form below to receive a no-obligation quotation from one of our experienced engineers?
Don’t worry, we won’t hassle any potential customer! All the Opus team are engineers, not sales-people!
Want to join our long list of satisfied customers? Then, why not fill in the form to receive a no-obligation quotation from one of our experienced engineers?
Don’t worry, we won’t hassle any potential customer! All the Opus team are engineers, not sales-people!
Queries & Answers
Is Opus a UK company?
Yes, we are based in the North East of England and we have an extensive team of engineers who work throughout the whole of the UK, including an engineer who is based in Northern Ireland.
What software is supplied?
VCarve Pro software is supplied as standard with all Olympus ATC CNC machines. VCarve Pro can be upgraded to Aspire for all those 3D machining.
We can also supply post-processors for Fusion 360 and Rhinocam. Furthermore we are proud partners of Cadspec who specialise in many suitable CNC software such as Fusion 360 and Autodesk.Â
Is training included?
Certainly! With a proven track record of transforming individuals into experts, our engineers are a beacon of excellence in CNCs and skill development. You will receive machine training, safety management and VCarve Pro software training. Our engineers adeptly customise their training approach to align perfectly with your requirements and proficiencies!
Additionally, all Opus engineers are fully trained in Fusion 360 and can supply training in place of VCarve when necessary.
Is tooling supplied?
Understanding that each customer possesses unique tooling requirements, our provision of tooling is primarily geared towards the training process. We advise discussing with seasoned tooling suppliers, like Cutting Edge Carbide, to address your specific tooling needs. Additionally, it’s important to highlight that all Olympus ATC CNC routers seamlessly accommodate ER32 collets.
Do I need 3-phase electric supply?
Olympus ATC CNC routers come equipped with a 3-phase connectivity setup. Nevertheless, we do have the capability to produce the Olympus ATC CNC machine with a single-phase configuration. However, please be aware that this alteration will entail modifications to the specifications, including the replacement of certain components with single-phase counterparts, such as the spindle, vacuum pumps, inverter, and extraction system.
What bed sizes are available?
We offer the following standard sizes, 1300x1300mm, 1300x2500mm, 1525x3050mm, 2100x3050mm, 2000x4000mm and 2000x6000mm. We also manufacture bespoke sized Olympus ATC CNC routers. We have previously commissioned the Olympus ATC CNC router with a bed size of 3mx8m. Ask one of the team if you need a bed size which isn’t mentioned above.
SPREAD THE COST
We understand how vital cash flow can be, which is why we work with leading asset finance provider Anglo Scottish Asset Finance who offer competitive business finance across the UK.
OLYMPUS ATC GALLERY

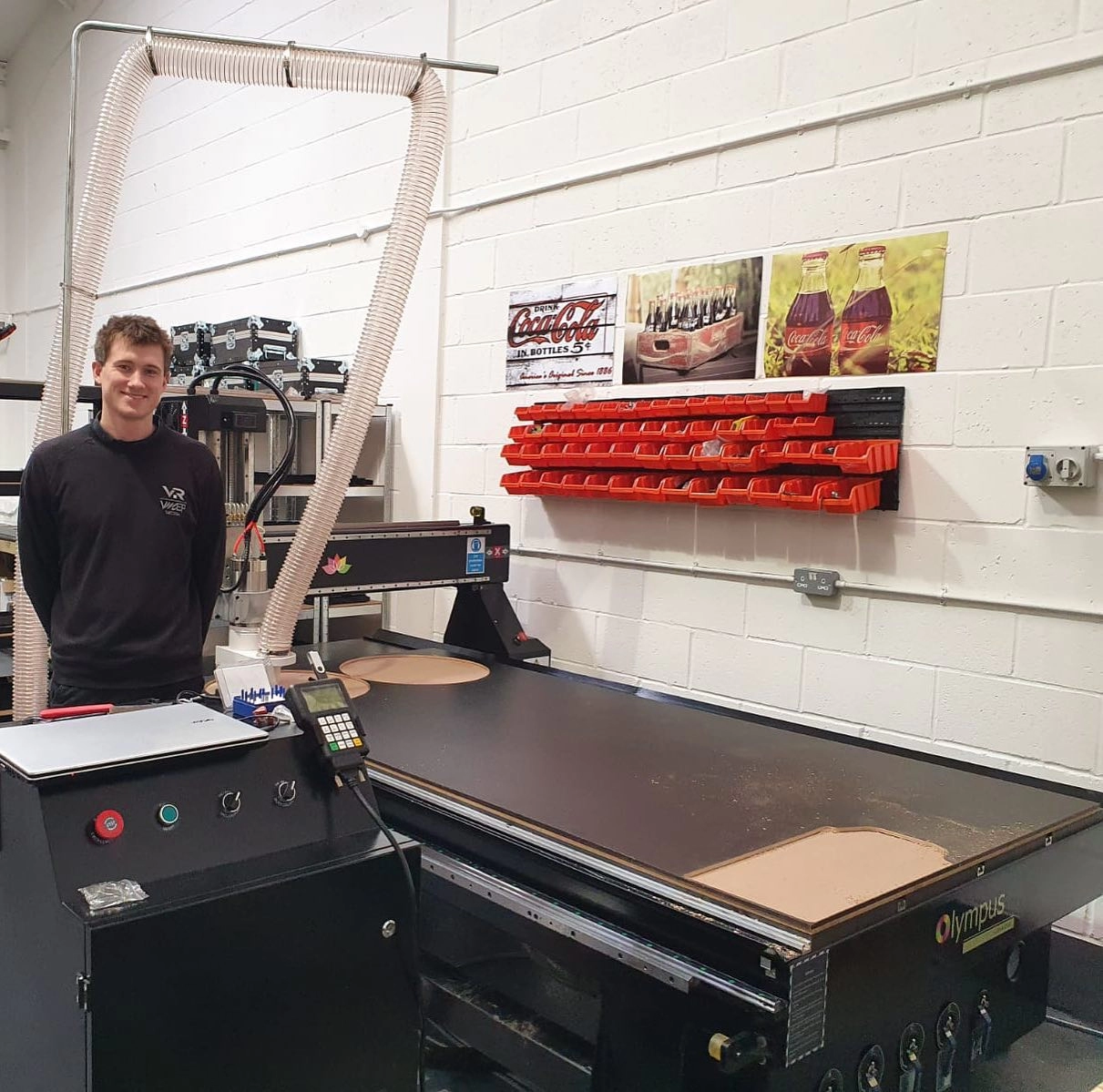

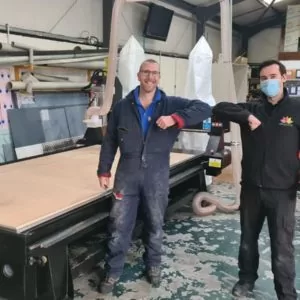

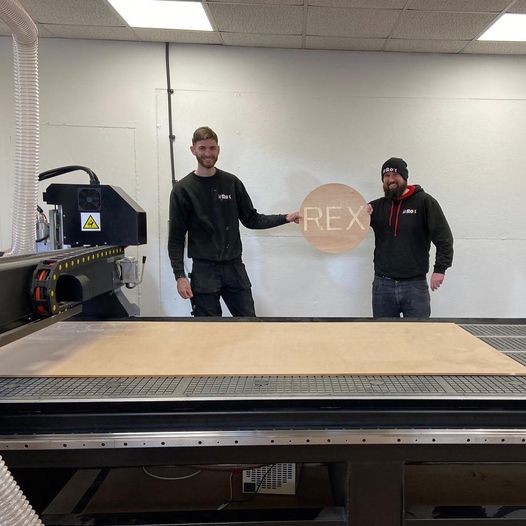

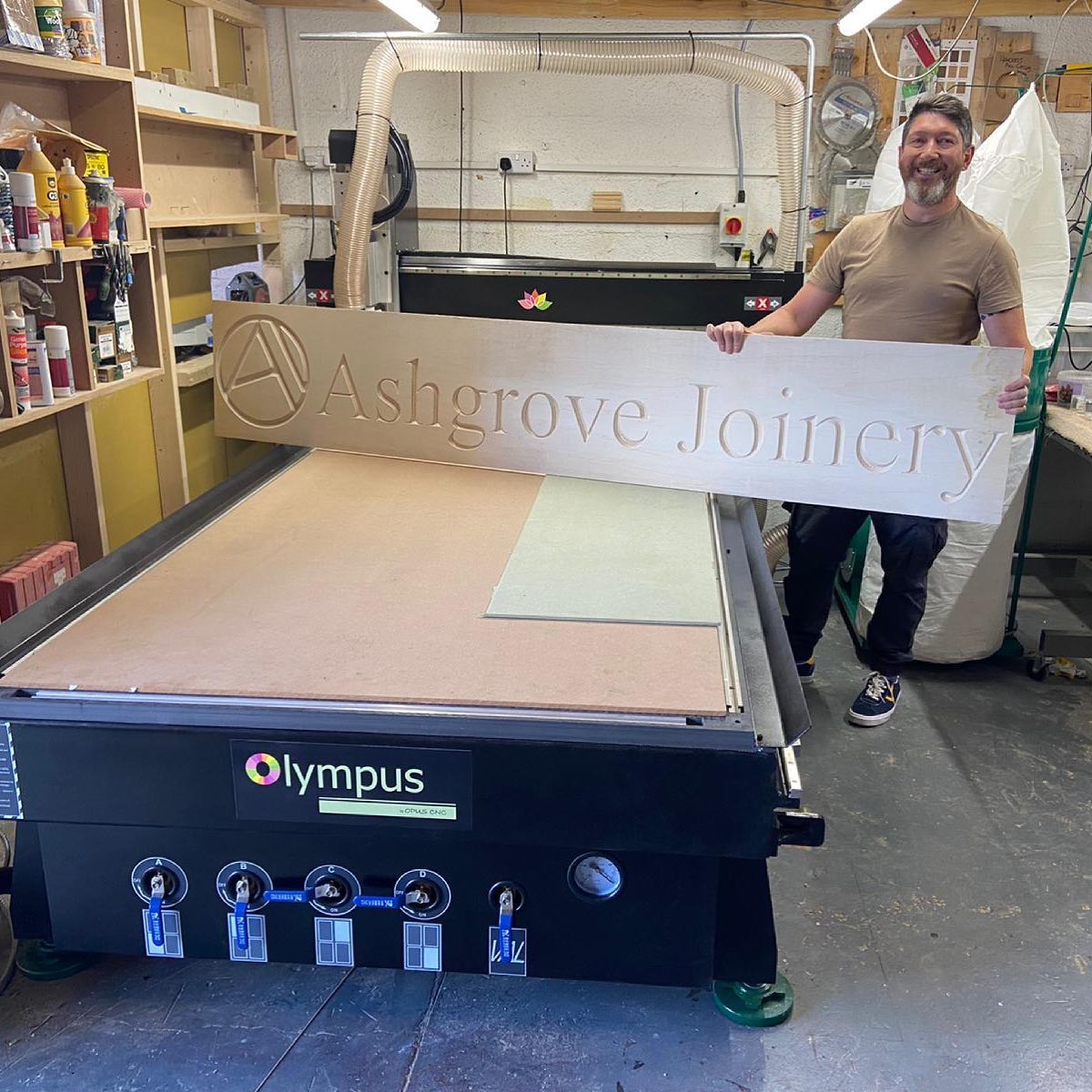

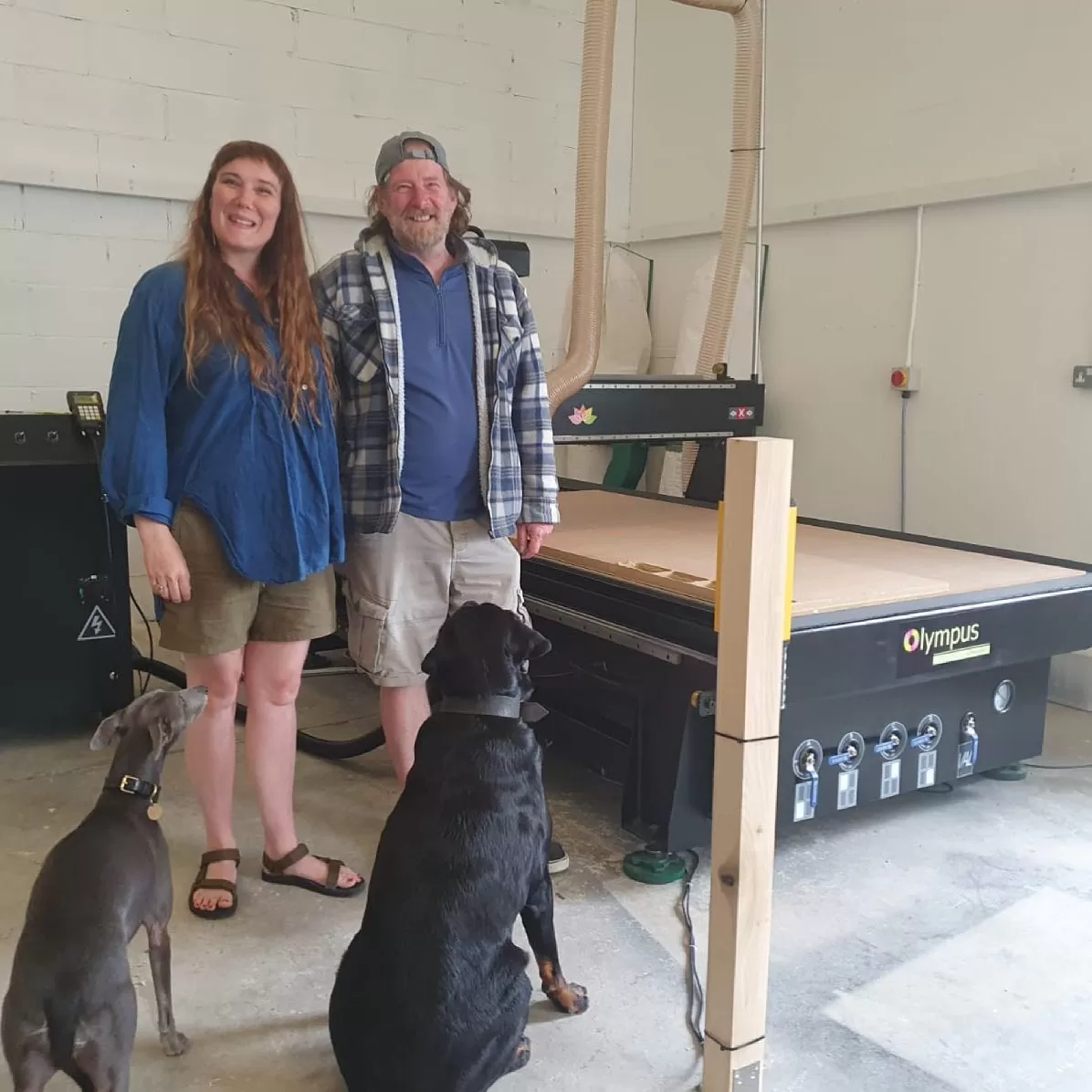

Check out our most recent Olympus ATC CNC Router installations!
RELATED MODELS
Olympus
CNC Router
Tool Change Type: Manual Tool Change
Spindle: 6kW Air-cooled Spindle
Drives: Stepper Drives
Motors: Stepper Motors
Control System: DSP Hand Controller
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 3.0kW Extraction System Included
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training: Included
Upgrades Available: PC Control System
Prices from £10,995 plus VAT
Olympus PRO
CNC Router
Tool Change Type: Manual
Spindle: 9kW HQD Air-cooled Quick-release Spindle
Drives: Delta Servo Drives
Motors: Delta Servo Motors
Control System: Opus PRO Hand Controller
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 5.5kW Extraction System Included
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training: Included
Upgrades Available: PC Control System | ATC
Prices from £15,495 plus VAT
Pegasus ATC
CNC Router
Tool Change Type: Carousel 12 x ISO 30 Tools/Automatic Tool Change
Spindle: 9kW Italian HSD Spindle
Drives: Yaskawa Servo Drives
Motors: Yaskawa Servo Motors
Control: Syntec Control System
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 7.5kW Extraction System Included
Extras: Material Locating Pins | Bearing Wipers
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training:Â Included
Prices from £25,000 plus VAT
