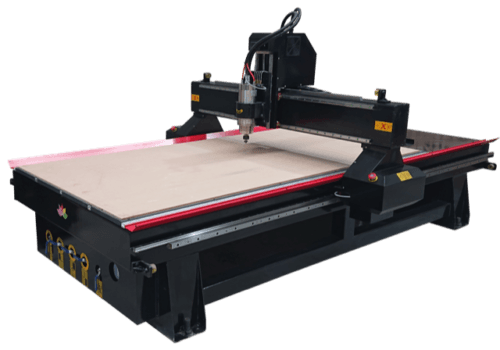

OLYMPUS
CNC ROUTER
Professional Manual Tool Change CNC Router
An affordable, easy-to-use manual tool change CNC router that is ideal for many industries looking to introduce CNC routing, without breaking the bank.
Weighing in at over 2 ton, anything less would be a hobbyist CNC.
The Olympus CNC router is available with standard bed sizes, or can be manufactured in bespoke sizes.
Why do our customers choose the Olympus CNC machine? Our customers purchase this industrial CNC router due to its price, reliability and user-friendliness.
OLYMPUS
CNC ROUTER
Professional Manual Tool Change CNC Router
An affordable, easy-to-use manual tool change CNC router that is ideal for many industries looking to introduce CNC routing, without breaking the bank.
Weighing in at over 2 ton, anything less would be a hobbyist CNC.
The Olympus CNC router is available with standard bed sizes, or can be manufactured in bespoke sizes.
Why do our customers choose the Olympus CNC machine? Our customers purchase this industrial CNC router due to its price, reliability and user-friendliness.
OLYMPUS
CNC ROUTER
Professional Manual Tool Change CNC Router
An affordable, easy-to-use manual tool change CNC router that is ideal for many industries looking to introduce CNC routing, without breaking the bank.
Weighing in at over 2 ton, anything less would be a hobbyist CNC.
The Olympus CNC router is available with standard bed sizes, or can be manufactured in bespoke sizes.
Why do our customers choose the Olympus CNC machine? Our customers purchase this industrial CNC router due to its price, reliability and user-friendliness.
Overview
Manual Tool Change
Tool changes can be completed in under a minute. The Olympus manual tool change CNC is perfect for users who do not require multiple processes in a single job.
Drives & Motors
Stepper drives and motors on the Olympus offer high precision and high torque at low speeds and high reliability, as well as low power consumption.

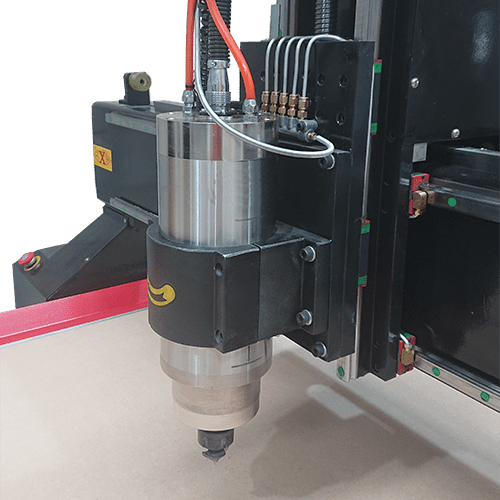

6kW Air-cooled Spindle
The Olympus CNC comes with a 6kW air-cooled spindle. The air-cooled spindle has improved performance over a water-cooled spindle.Â
3.0kW Extraction System
All Olympus CNC routers include a 3.0kW extraction system. An Opus engineer will hard-wire the extraction system on installation.
Dual Stage Vacuums
We include up to 4 x 7.5kW dual-stage, 3 phase vacuum pumps as standard on all of the Olympus CNC routers.Â
Easy-to-use
The simplistic A11 DSP controller is ideal for those who have no previous experience of CNC routers.

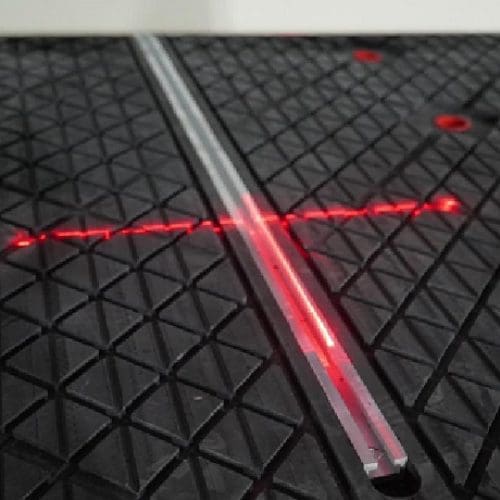

Unique Matrix Bed
Designed by Opus CNC, the enhanced zoned bed gives full suction throughout, unlike standard CNC machines. Â
Separate Control Box
The control box on all Olympus CNC machines is kept separate from the machine. Why? Integrated control boxes pose risks such as component failure due to excessive debris contamination.
Warranty
We provide a full 2-year parts and labour warranty with all Olympus CNC machines. This extensive warranty reflects our strong confidence in the durability and quality of our Olympus CNCs.
Delivery
Depending on the size, your Olympus CNC router will be delivered by a curtain side lorry, which will require a forklift. Alternatively, delivery can be made by a HIAB, with a crane.
Installation
One of the Opus engineers will carry out the full installation. All Opus engineers are experienced and go through vigorous in-house training programs throughout their Opus careers.
Training
Machine and software training is fully inclusive with the Olympus CNC and is divided into three sections: machine operation, software, and safety. We customise all training to match individual capabilities.
Models
Olympus 1313
CNC Router
Working Area: 1300 x 1300mm
Dimensions: W2222 x L2020
6kW Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW
DSP A11 Control System
Stepper Motors & Drives
3.0kW Extraction System
Weight 1,900kg
Olympus 1325
CNC Router
Working Area: 1300 x 2500mm
Dimensions: W2222 x L3220
6kW Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW
DSP A11 Control System
Stepper Motors & Drives
3.0kW Extraction System
Weight 2,100kg
Olympus 1530
CNC Router
Working Area: 1525 x 3050mm
Dimensions: W2422 x L3720
6kW Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 7.5kW
DSP A11 Control System
Stepper Motors & Drives
3.0kW Extraction System
Weight 2,200kg
Olympus 2030
CNC Router
Working Area: 2100 x 3050mm
Dimensions: W2892 x L3720
6kW Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW x 2
DSP A11 Control System
Stepper Motors & Drives
3.0kW Extraction System
Weight 2,300kg
Olympus 2040
CNC Router
Working Area: 2000 x 4000mm
Dimensions: W2892 x L4720
6kW Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW x 2
DSP A11 Control System
Stepper Motors & Drives
3.0kW Extraction System
Weight 2,400kg
Olympus 2060
CNC Router
Working Area: 2000 x 6000mm
Dimensions: W2892 x L6720
6kW Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW x 2
DSP A11 Control System
Stepper Motors & Drives
3.0kW Extraction System
Weight 2,600kg
Want to see more?
Check Out The Olympus CNC in Action Below!
Request A Quotation
Want to join our long list of satisfied customers? Then, why not fill in the form below to receive a no-obligation quotation from one of our experienced engineers?
Don’t worry, we won’t hassle any potential customer! All the Opus team are engineers, not sales-people!
Want to join our long list of satisfied customers? Then, why not fill in the form to receive a no-obligation quotation from one of our experienced engineers?
Don’t worry, we won’t hassle any potential customer! All the Opus team are engineers, not sales-people!
Queries & Answers
Is Opus a UK company?
Yes, we are based in the North East of England and we have an extensive team of engineers who work throughout the whole of the UK, including an engineer who is based in Northern Ireland.
What software is supplied?
VCarve Pro software is supplied as standard with all Olympus CNC machines. VCarve Pro can be upgraded to Aspire for all those 3D machining.
We are proud partners of Cadspec who specialise in many suitable CNC software such as Fusion 360 and Autodesk.Â
We can also supply post-processors for Fusion 360 and Rhinocam if required.
Is training included?
Certainly, with a proven track record of transforming individuals into experts, our engineers are a beacon of excellence in CNCs and skill development. As part of of our service, you will receive machine training, safety management and VCarve Pro software training. Our engineers adeptly customise their training approach to align perfectly with your requirements and proficiencies!
Additionally, all Opus engineers are fully trained in Fusion 360 and can supply training in place of VCarve when necessary.
Is tooling supplied?
Understanding that each customer has unique tooling requirements, our provision of tooling is primarily geared towards the training process only. Nevertheless, we work in partnership with the established tooling supplier Cutting Edge Carbide, and we can work with you for all your tooling needs.Â
Do I need 3-phase electric supply?
Olympus CNC routers come equipped with a 3-phase connectivity setup. We can however, produce the Olympus CNC machine with a single-phase configuration. It is worth noting, modifying to single-phase will entail replacing certain components with single-phase counterparts, such as the spindle, vacuum pumps, inverter, and extraction system.
What bed sizes are available?
We offer the following standard sizes, 1300x1300mm, 1300x2500mm, 1525x3050mm, 2100x3050mm, 2000x4000mm and 2000x6000mm. We also manufacture bespoke sized Olympus CNC routers. Please ask one of the team if you need a bed size which isn’t mentioned above.
SPREAD THE COST
We understand how vital cash flow can be, which is why we work with leading asset finance provider Anglo Scottish Asset Finance who offer competitive business finance across the UK.

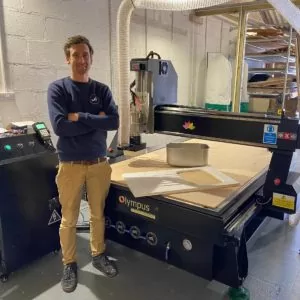

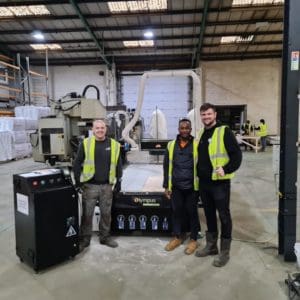

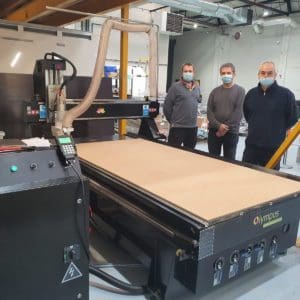

OLYMPUS GALLERY

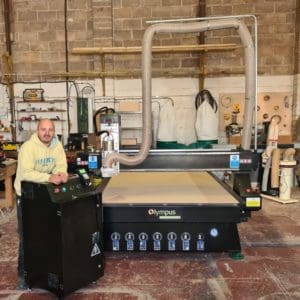

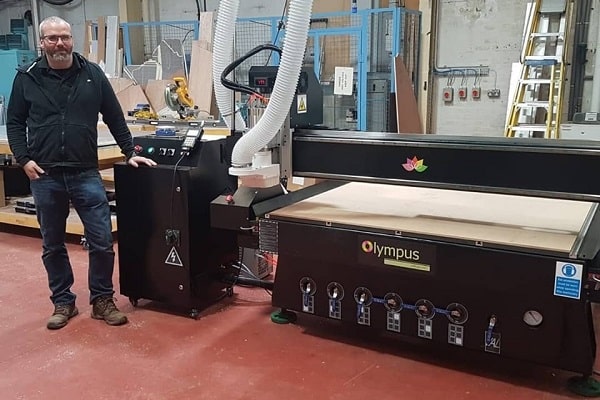

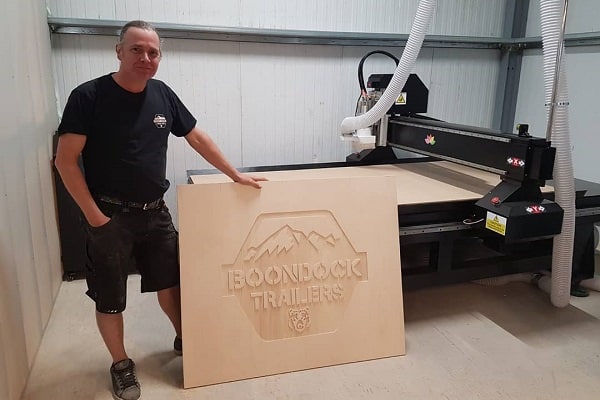

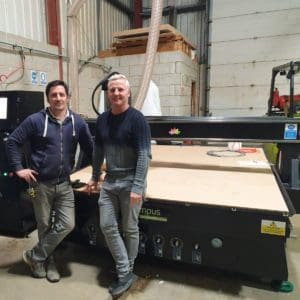

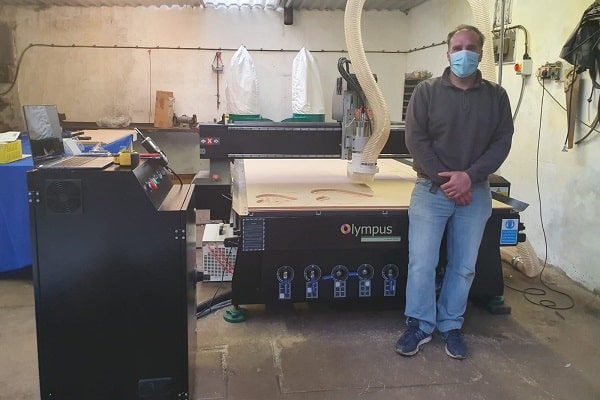

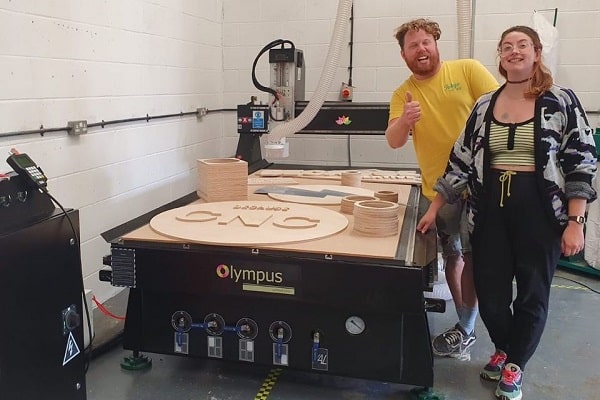

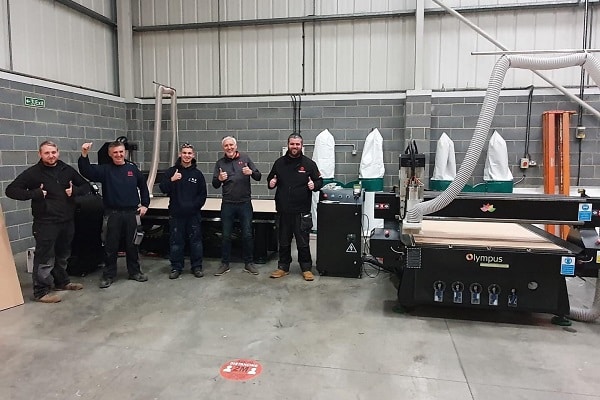

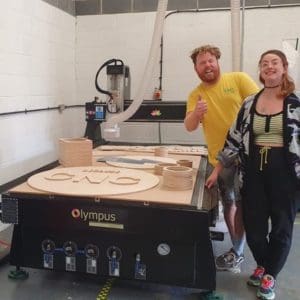

Check out our most recent Olympus CNC Router installations!
RELATED MODELS
Olympus PRO
CNC Router
Tool Change Type: Manual Tool Change – Can be upgraded to automatic tool change
Spindle: 9kW HQD Air-cooled Quick-release Spindle
Drives: Delta Servo Drives
Motors: Delta Servo Motors
Control System: Opus PROÂ
Locating Pins: Included
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 5.5kW Extraction System Included
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training: Machine and Software Training Included
Upgrades Available: PC Control System
Prices from £15,495 plus VAT
Olympus ATC
CNC Router
Tool Change Type: Linear – Automatic Tool Change with 8 ISO 30 Chucks
Spindle: 9kW HQD Air-cooled Quick-release Spindle
Drives: Delta Servo Drives
Motors: Delta Servo Motors
Control System: Opus PROÂ
Locating Pins: Included
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 5.5kW Extraction System Included
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training: Machine and Software Training Included
Upgrades Available: PC Control System
Prices from £16,995 plus VAT
Pegasus ATC
CNC Router
Tool Change Type: Carousel – Automatic Tool Change with 12 ISO 30 Chucks
Spindle: 9kW Italian HSD Spindle
Drives: Yaksawa Servo Drives
Motors: Yaskawa Servo Motors
Control System: Syntec Control System
Locating Pins: Included
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 7.5kW Extraction System Included
Extras: Bearing Wipers
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training:Â Included
Prices from £25,000 plus VAT
