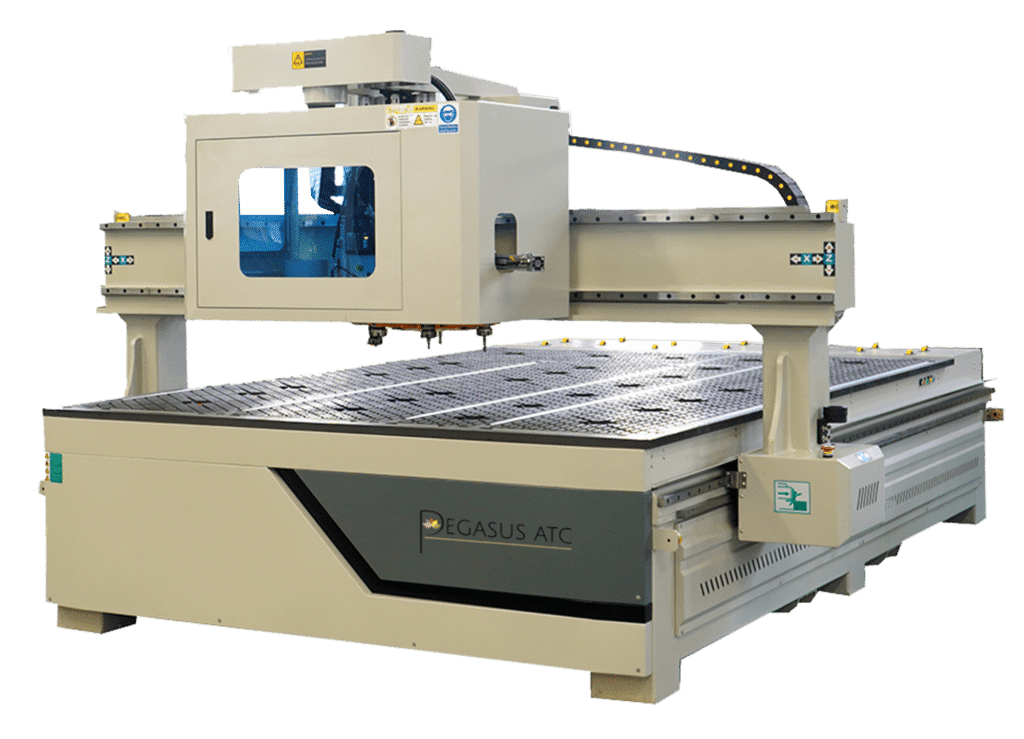

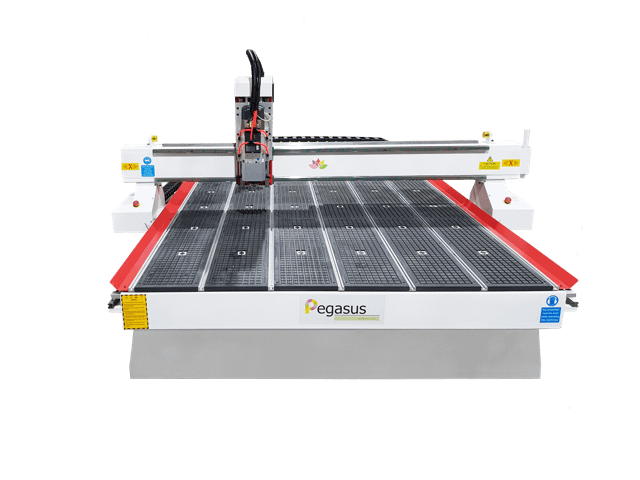

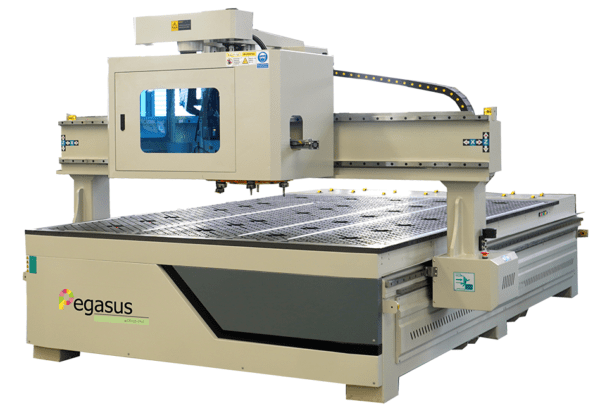

PEGASUS ATC
CNC ROUTER
Ultra-Spec Automatic Tool Change CNC Router

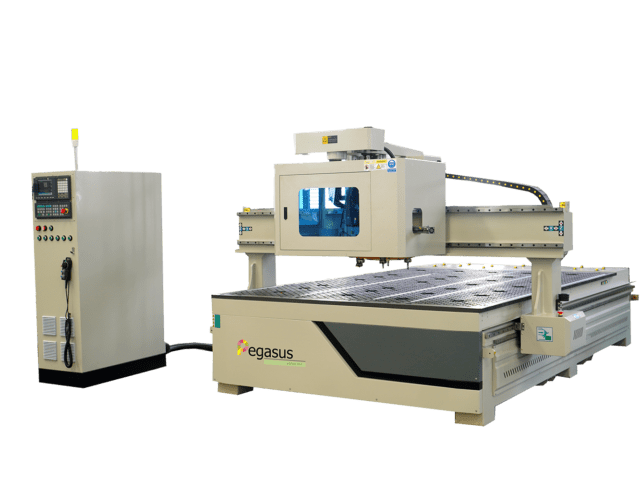

The Pegasus ATC (Automatic Tool Change) CNC router stands out as a high-performance CNC machine, boasting advanced features, components, and capabilities that significantly improve its precision, efficiency, and versatility.
Equipped with top-tier components like the Italian HSD spindle, Japanese servo motors and drives, and the comprehensive Syntec control system, it offers exceptional value without the steep cost of similar high-end brands.
PEGASUS ATC
CNC ROUTER
Ultra-Spec Automatic Tool Change CNC Router
The Pegasus ATC (Automatic Tool Change) CNC router stands out as a high-performance CNC machine, boasting advanced features, components, and capabilities that significantly improve its precision, efficiency, and versatility.
Equipped with top-tier components like the Italian HSD spindle, Japanese servo motors and drives, and the comprehensive Syntec control system, it offers exceptional value without the steep cost of similar high-end brands.
PEGASUS ATC
CNC ROUTER
Ultra-Spec Automatic Tool Change CNC Router
The Pegasus ATC (Automatic Tool Change) CNC router stands out as a high-performance CNC machine, boasting advanced features, components, and capabilities that significantly improve its precision, efficiency, and versatility.
Equipped with top-tier components like the Italian HSD spindle, Japanese servo motors and drives, and the comprehensive Syntec control system, it offers exceptional value without the steep cost of similar high-end brands.
PEGASUS ATC
CNC ROUTER
Ultra-Spec Automatic Tool Change CNC Router
The Pegasus ATC (Automatic Tool Change) CNC router stands out as a high-performance CNC machine, boasting advanced features, components, and capabilities that significantly improve its precision, efficiency, and versatility.
Equipped with top-tier components like the Italian HSD spindle, Japanese servo motors and drives, and the comprehensive Syntec control system, it offers exceptional value without the steep cost of similar high-end brands.
PEGASUS ATC KEY FEATURES
Overview
Automatic Tool Change

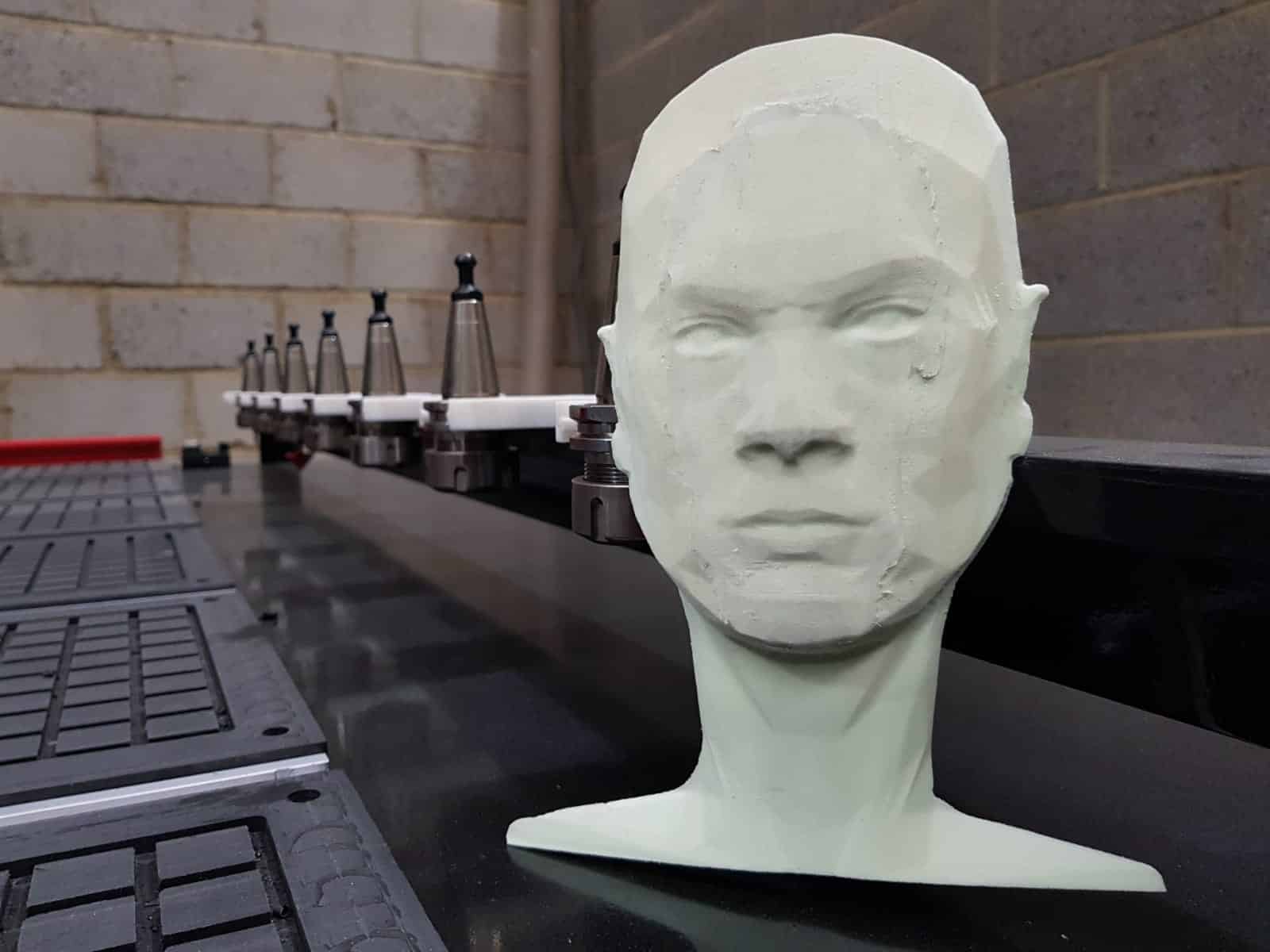

Comprising of 12 x ISO 30 tools, the Pegasus ATC CNC router offers the user quick tool changes on a carousel system, without the need for manual intervention.
Japanese Servo Drives
Only found on high-spec CNC machines, the Pegasus comes as standard with Japanese Yaskawa servo motors and drives, for superior performance and smoothness.

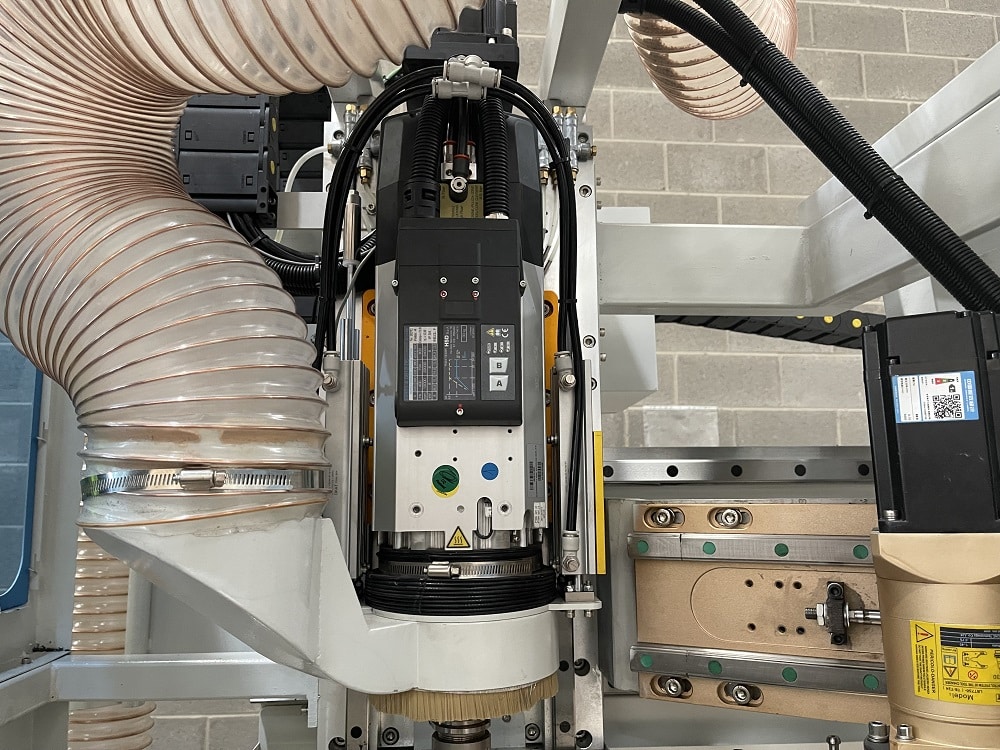

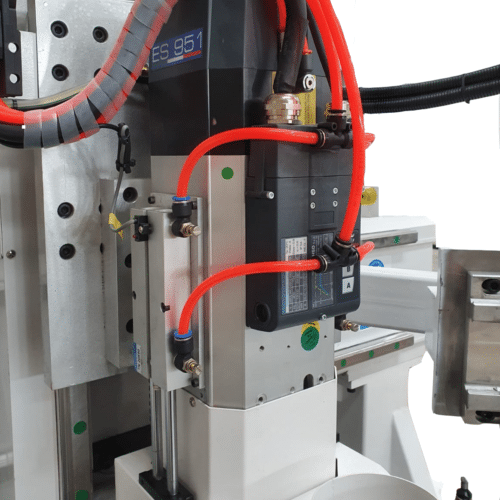

Italian 9kW HSD Spindle
Another industry-leading componenet only found on superior CNC routers is the Italian 9kW HSD spindle. We supply the latest model ES951, on all Pegasus ATC CNC machines.
7.5kW Extraction System
With 7.5kW of power, the extraction system can efficiently remove large volumes of dust, chips, and other particles from the cutting area. This is essential for maintaining a clean workspace and preventing material buildup around the tool and workpiece.
Dual Stage Vacuums
We include up to 4 x 7.5kW dual-stage, 3 phase vacuum pumps as standard on all of the Pegasus ATC CNC routers.Â
Syntec Control system
The Syntec controller is highly regarded for its robust performance, user-friendly interface, and advanced features that enhance CNC machine operations. It offers reliable precision and control, supporting complex machining tasks with ease due to its powerful processing capabilities and compatibility with various software.

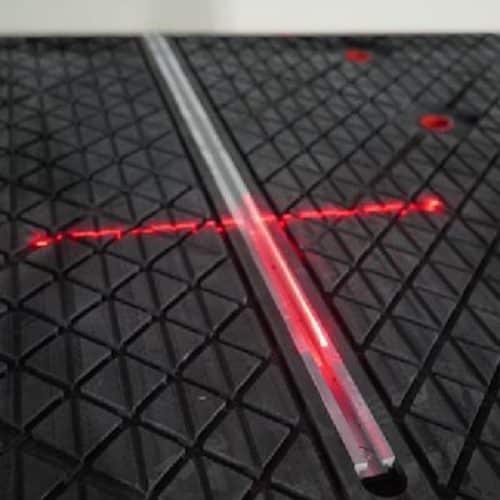

Unique Matrix Bed
Designed by Opus CNC, the enhanced zoned bed gives full suction throughout, unlike standard CNCs. Â
Separate Control Box
The control box is separate from the Pegasus CNC machine, so it is less exposed to dust, debris, vibrations, and heat generated during machining. This minimises the risk of electrical component failure.
Warranty
We offer 2 years full parts and labour warranty with all Pegasus ATC CNC machines. This longer warranty period shows we have greater confidence in our Pegasus ATC CNC’s durability and quality.
Delivery
Depending on the size, your Pegasus ATC CNC router will be delivered by a curtain side lorry, which will require a forklift. Alternatively, delivery can be made by a HIAB, with a crane.
Installation
One of the Opus engineers will carry out the full installation. All Opus engineers are experienced and go through vigorous in-house training programs throughout their Opus careers.
Training
Machine and software training is fully inclusive with the Pegasus ATC CNC and is divided into three sections: machine operation, software, and safety. We customise all training to match individual capabilities.
Models
Pegasus 1313 ATC CNC Router
Working Area: 1300 x 1300mm
Dimensions: L2170 x W2246
9kW Italian HSD Spindle
Carousel Automatic Tool Change
12 ISO Tool Holders Included
Gantry Clearance: 300mm
Vacuum Pump: 7.5kW
Syntec Control System
Yaskawa Servo Motors & Drives

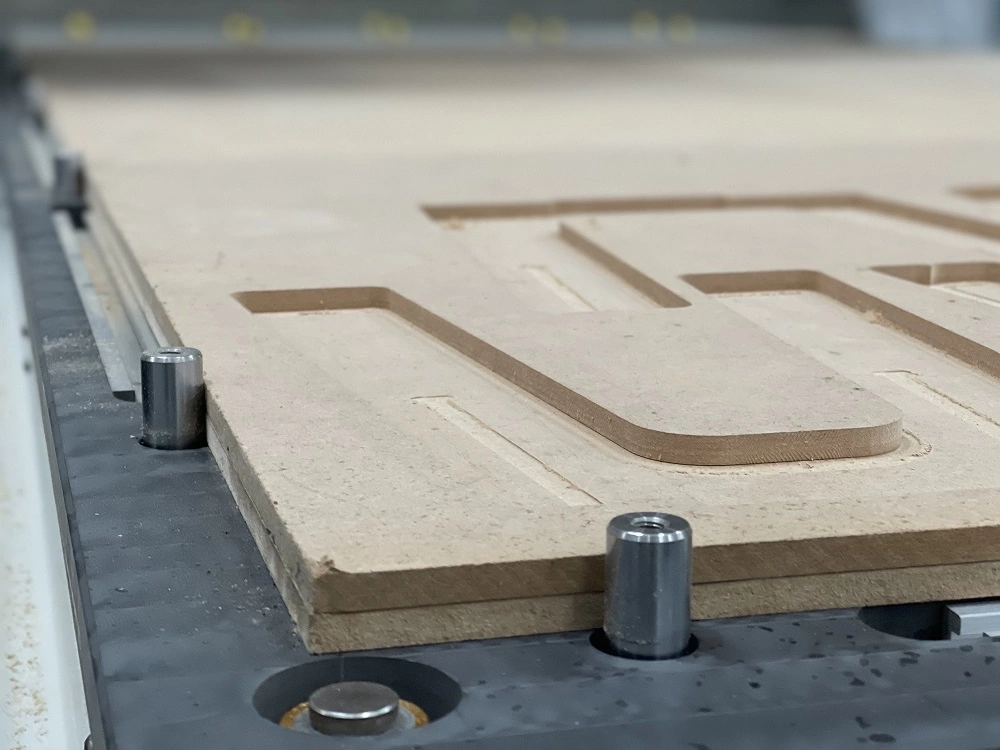

Material Locating Pins Included
Bearing Wipers
Networkable
7.5kW Extraction System
Weight 2,400kg
Pegasus 1325 ATC CNC Router
Working Area: 1300 x 2500mm
Dimensions: L3370 x W2246
9kW Italian HSD Spindle
Carousel Automatic Tool Change
12 ISO Tool Holders Included
Gantry Clearance: 300mm
Vacuum Pump: 7.5kW
Syntec Control System
Yaskawa Servo Motors & Drives
Material Locating Pins Included
Bearing Wipers
Networkable
7.5kW Extraction System
Weight 2,500kg
Pegasus 1530 ATC CNC Router
Working Area: 1525 x 3050mm
Dimensions: L3870 x W2446
9kW Italian HSD Spindle
Carousel Automatic Tool Change
12 ISO Tool Holders Included
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW x 2
Syntec Control System
Yaskawa Servo Motors & Drives
Material Locating Pins Included
Bearing Wipers
Networkable
7.5kW Extraction System
Weight 2,600kg
Pegasus 2030 ATC CNC Router
Working Area: 2100 x 3050mm
Dimensions: Â L3910 x W3066
9kW Italian HSD Spindle
Carousel Automatic Tool Change
12 ISO Tool Holders Included
Gantry Clearance: 300mm
Vacuum Pump: 7.5kW x 2
Syntec Control System
Yaskawa Servo Motors & Drives
Material Locating Pins Included
Bearing Wipers
Networkable
7.5kW Extraction System
Weight 2,700kg
Pegasus 2040 ATC CNC Router
Working Area: 2000 x 4000mm
Dimensions: Â L4910 x W3066
9kW Italian HSD Spindle
Carousel Automatic Tool Change
12 ISO Tool Holders Included
Gantry Clearance: 300mm
Vacuum Pump: 7.5kW x 2
Syntec Control System
Yaskawa Servo Motors & Drives
Material Locating Pins Included
Bearing Wipers
Networkable
7.5kW Extraction System
Weight 2,800kg
Pegasus 2060 ATC CNC Router
Working Area: 2000 x 6000mm
Dimensions: Â L6910 x W3066
9kW Italian HSD Spindle
Carousel Automatic Tool Change
12 ISO Tool Holders Included
Gantry Clearance: 300mm
Vacuum Pump: 7.5kW x 2
Syntec Control System
Yaskawa Servo Motors & Drives
Material Locating Pins Included
Bearing Wipers
Networkable
7.5kW Extraction System
Weight 3,000kg

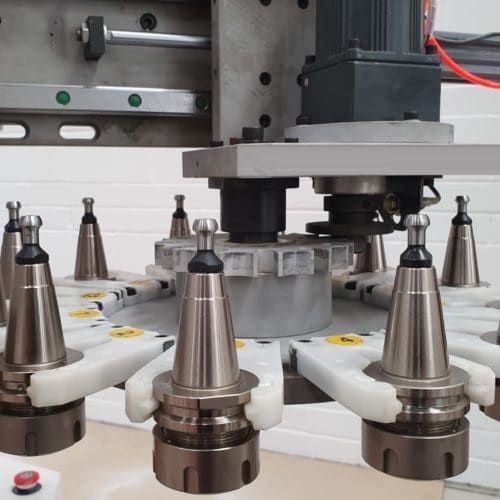

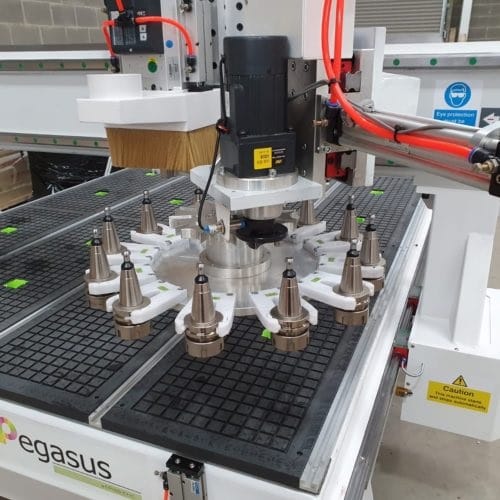

The benefits of a carousel automatic tool change
Carousel tool changers are typically faster than linear ones because they rotate directly to the needed tool’s position. This reduces the time required to switch tools, improving overall production efficiency, especially when handling multiple tools in one job.
Also, as the carousel rotates to select the required tool, it ensures that the next tool is always within reach of the spindle. This minimises downtime between tool changes and keeps the workflow smooth and continuous.
The carousel tool changers on the Pegasus model are mounted closer to the spindle, reducing the distance the Pegasus has to travel to pick up or swap tools. This improves the overall performance and responsiveness. Our carousel design allows the Italian HSD spindle to reach the next tool with minimal movement, which certainly reduces time between tool changes. This is especially advantageous when using many tools in quick succession.
The benefits of a carousel automatic tool change
Carousel tool changers are typically faster than linear ones because they rotate directly to the needed tool’s position. This reduces the time required to switch tools, improving overall production efficiency, especially when handling multiple tools in one job.
Also, as the carousel rotates to select the required tool, it ensures that the next tool is always within reach of the spindle. This minimises downtime between tool changes and keeps the workflow smooth and continuous.
The carousel tool changers on the Pegasus model are mounted closer to the spindle, reducing the distance the Pegasus has to travel to pick up or swap tools. This improves the overall performance and responsiveness. Our carousel design allows the Italian HSD spindle to reach the next tool with minimal movement, which certainly reduces time between tool changes. This is especially advantageous when using many tools in quick succession.
Syntec Control System
Improved Precision
The Syntec control system has a reputation for exceptional precision, allowing for highly accurate cuts and precise movements of the router. This is particularly important for complex designs or intricate shapes where precision is critical.
Advanced Functionality
There are a range of advanced features, such as automatic tool changers, multiple axes control, and real-time monitoring, which improve the performance and functionality of the Pegasus ATC CNC router.
Tool Wear Compensation
Indeed, the Syntec controller offers built-in tool wear compensation functions, allowing users to manually or automatically adjust the tool path to account for wear. As the tool wears down over time, the system modifies the cutting depth or adjust offsets to maintain precision without requiring a physical tool change.
Syntec Control System
Improved Precision
The Syntec control system has a reputation for exceptional precision, allowing for highly accurate cuts and precise movements of the router. This is particularly important for complex designs or intricate shapes where precision is critical.
Advanced Functionality
There are a range of advanced features, such as automatic tool changers, multiple axes control, and real-time monitoring, which improve the performance and functionality of the Pegasus ATC CNC router.
Tool Wear Compensation
Indeed, the Syntec controller offers built-in tool wear compensation functions, allowing users to manually or automatically adjust the tool path to account for wear. As the tool wears down over time, the system modifies the cutting depth or adjust offsets to maintain precision without requiring a physical tool change.
Want to see more?
Check Out The Pegasus ATC CNC in Action Below!
Request A Quotation
Want to join our long list of satisfied customers? Then, why not fill in the form to receive a no-obligation quotation from one of our experienced engineers?
Don’t worry, we won’t hassle any potential customer! All the Opus team are engineers, not sales-people!
Want to join our long list of satisfied customers? Then, why not fill in the form below to receive a no-obligation quotation from one of our experienced engineers?
Don’t worry, we won’t hassle any potential customer! All the Opus team are engineers, not sales-people!
Queries & Answers
Is Opus a UK company?
Yes, we are based in the North East of England and we have an extensive team of engineers who work throughout the whole of the UK, including an engineer who is based in Northern Ireland.
What software is supplied?
VCarve Pro software is supplied as standard with all Pegasus ATC CNC machines. VCarve Pro can be upgraded to Aspire for all those 3D machining.
We are proud partners of Cadspec who specialise in many suitable CNC software such as Fusion 360 and Autodesk.Â
We can also supply post-processors for Fusion 360 and Rhinocam if required.
Is training included?
Certainly! With a proven track record of transforming individuals into experts, our engineers are a beacon of excellence in CNCs and skill development. You will receive machine training, safety management and VCarve Pro software training. Our engineers adeptly customise their training approach to align perfectly with your requirements and proficiencies!
Additionally, all Opus engineers are fully trained in Fusion 360 and can supply training in place of VCarve when necessary.
Is tooling supplied?
Understanding that each customer has unique tooling requirements, our provision of tooling is primarily geared towards the training process only. Nevertheless, we work in partnership with the established tooling supplier Cutting Edge Carbide, and we can work with you for all your tooling needs.Â
Do I need 3-phase electric supply?
Pegasus ATC CNC routers come equipped with a 3-phase connectivity setup. We can however, produce the Pegasus ATC CNC machine with a single-phase configuration. It is worth noting, modifying to single-phase will entail replacing certain components with single-phase counterparts, such as the spindle, vacuum pumps, inverter, and extraction system.
What bed sizes are available?
We offer the following standard sizes, 1300x1300mm, 1300x2500mm, 1525x3050mm, 2100x3050mm, 2000x4000mm and 2000x6000mm. We also manufacture bespoke sized Pegasus ATC CNC routers. Please ask one of the team if you need a bed size which isn’t mentioned above.
SPREAD THE COST
We understand how vital cash flow can be, which is why we work with leading asset finance provider Anglo Scottish Asset Finance who offer competitive business finance across the UK.

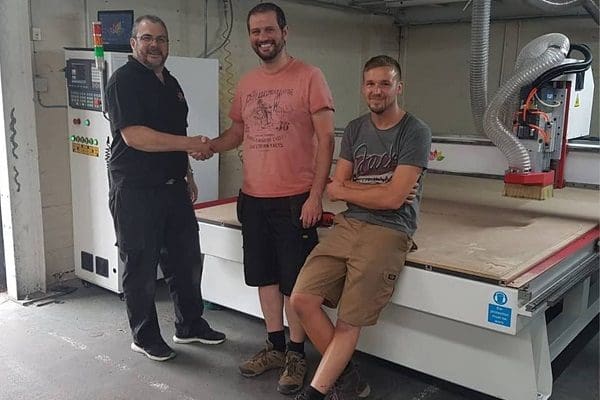

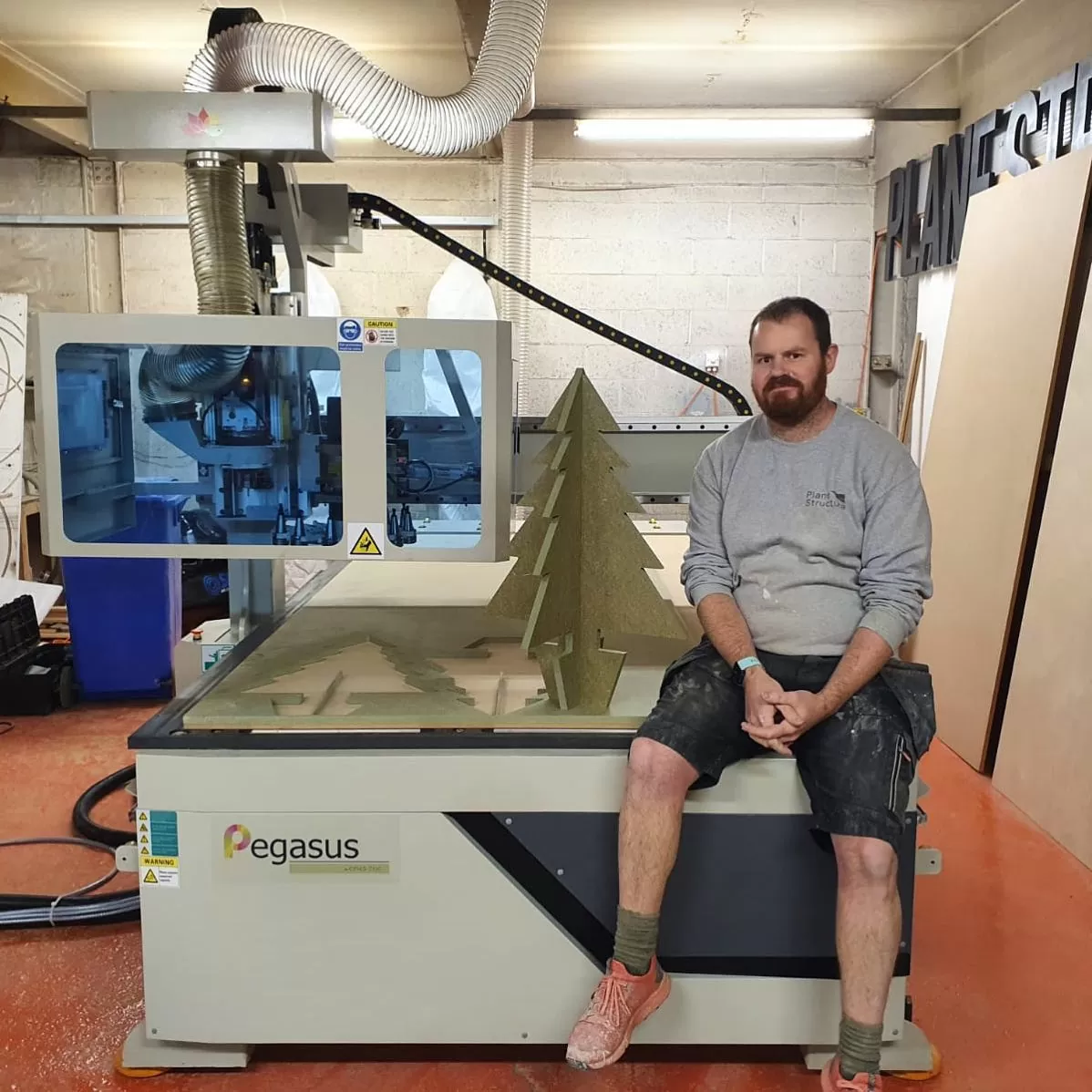

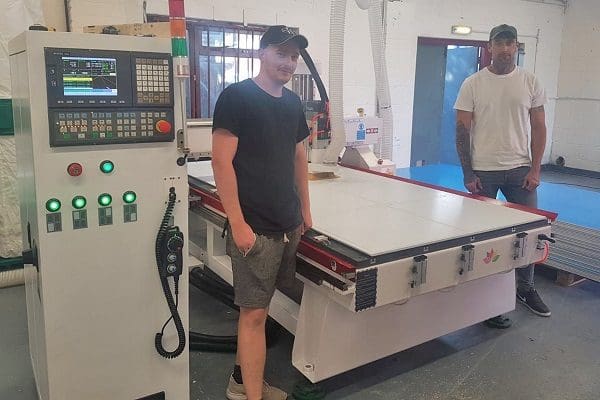

PEGASUS GALLERY

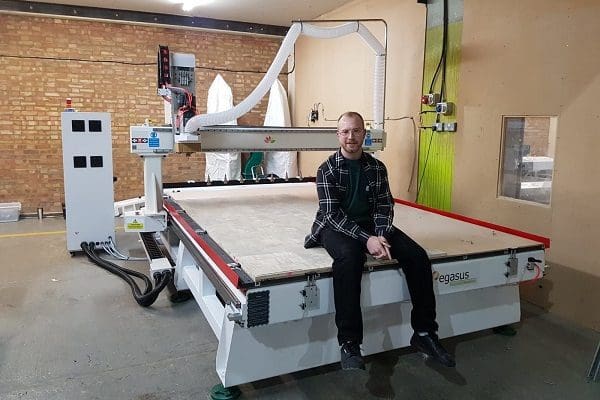

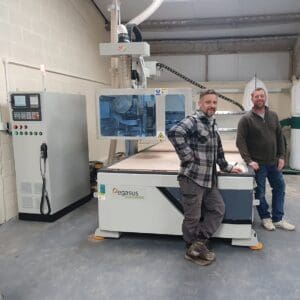

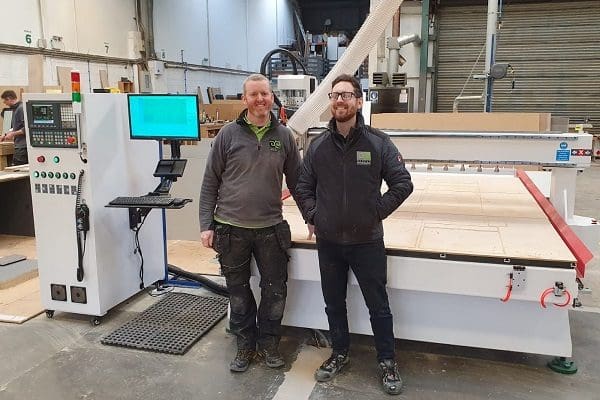

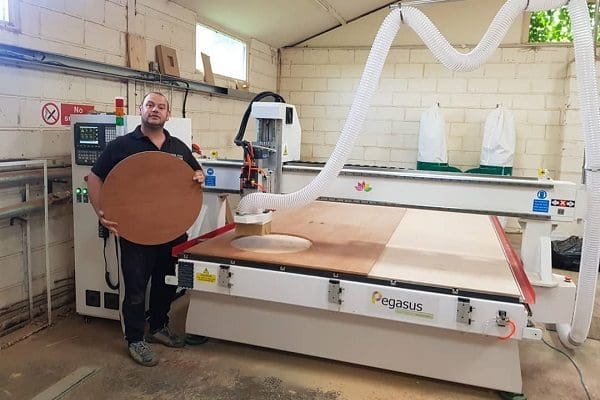

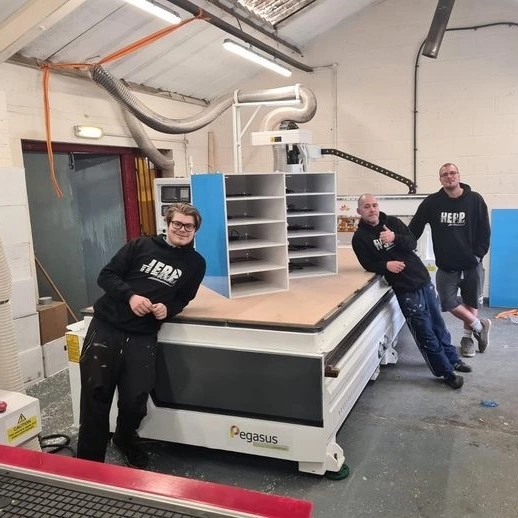

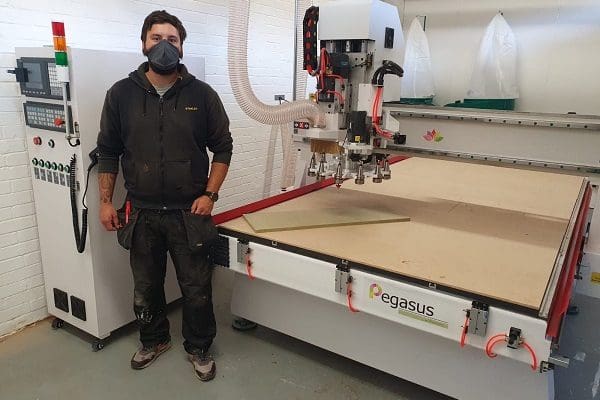

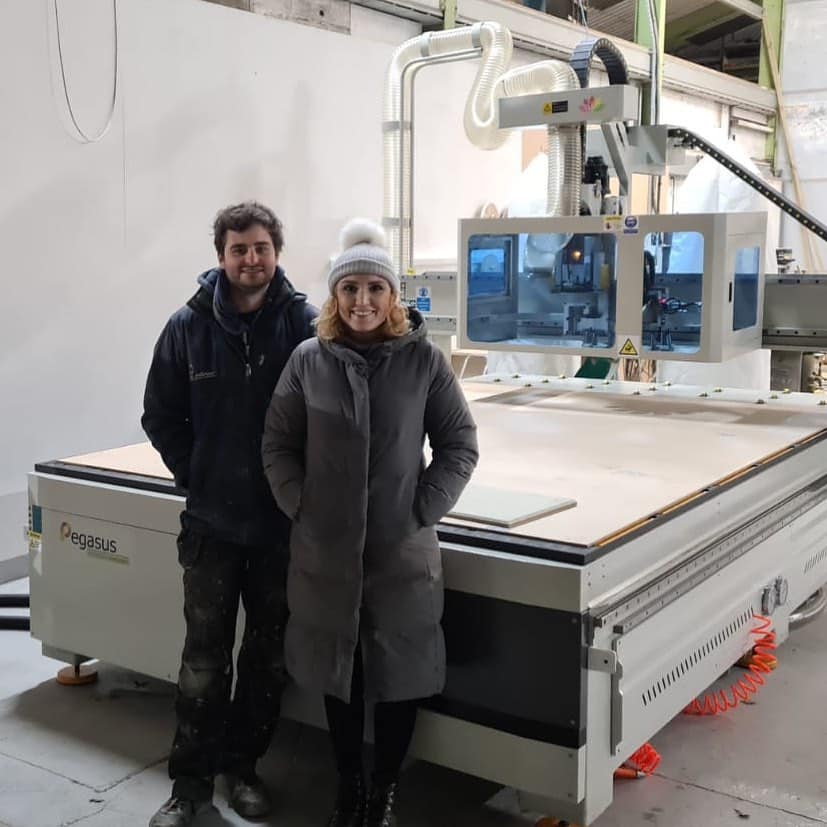

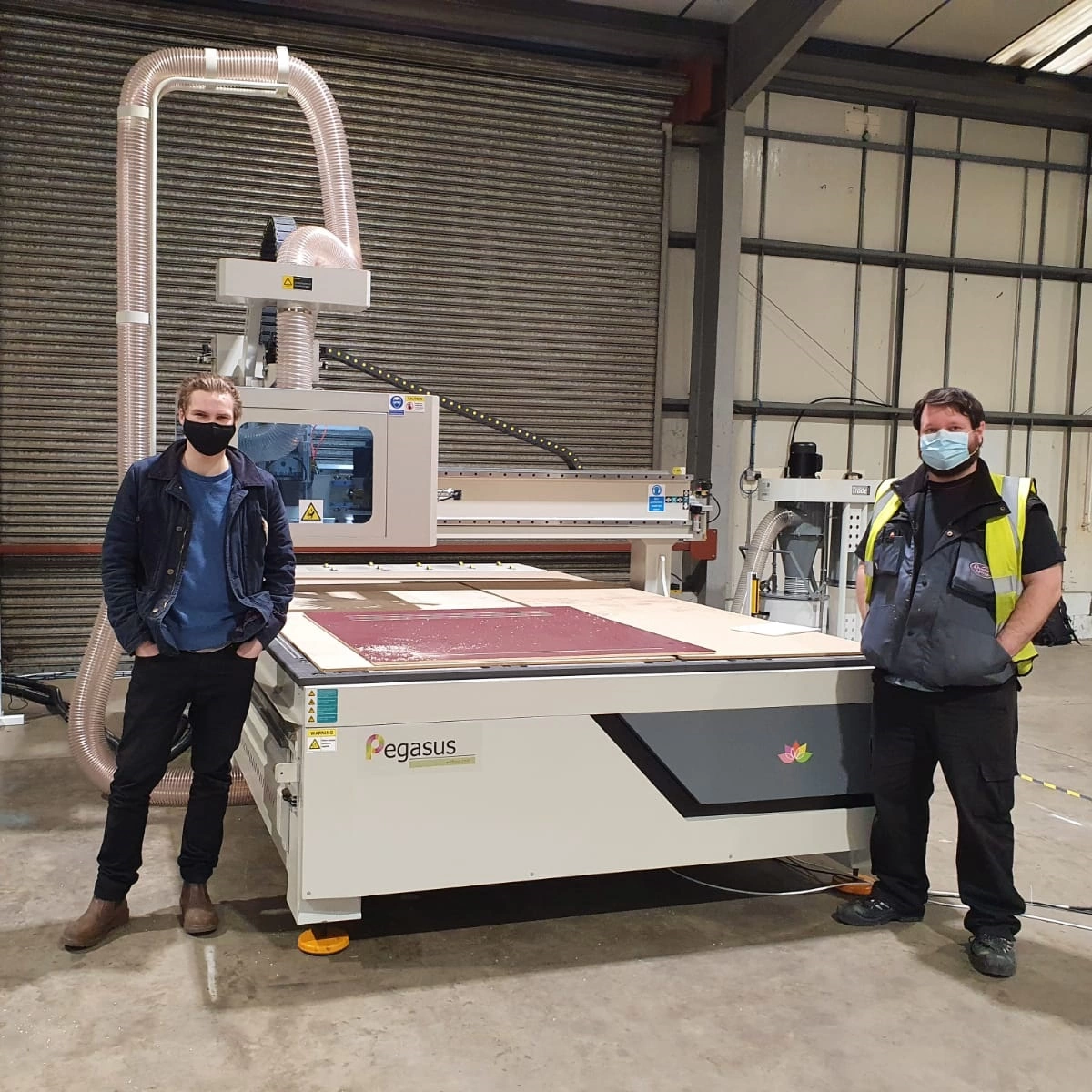

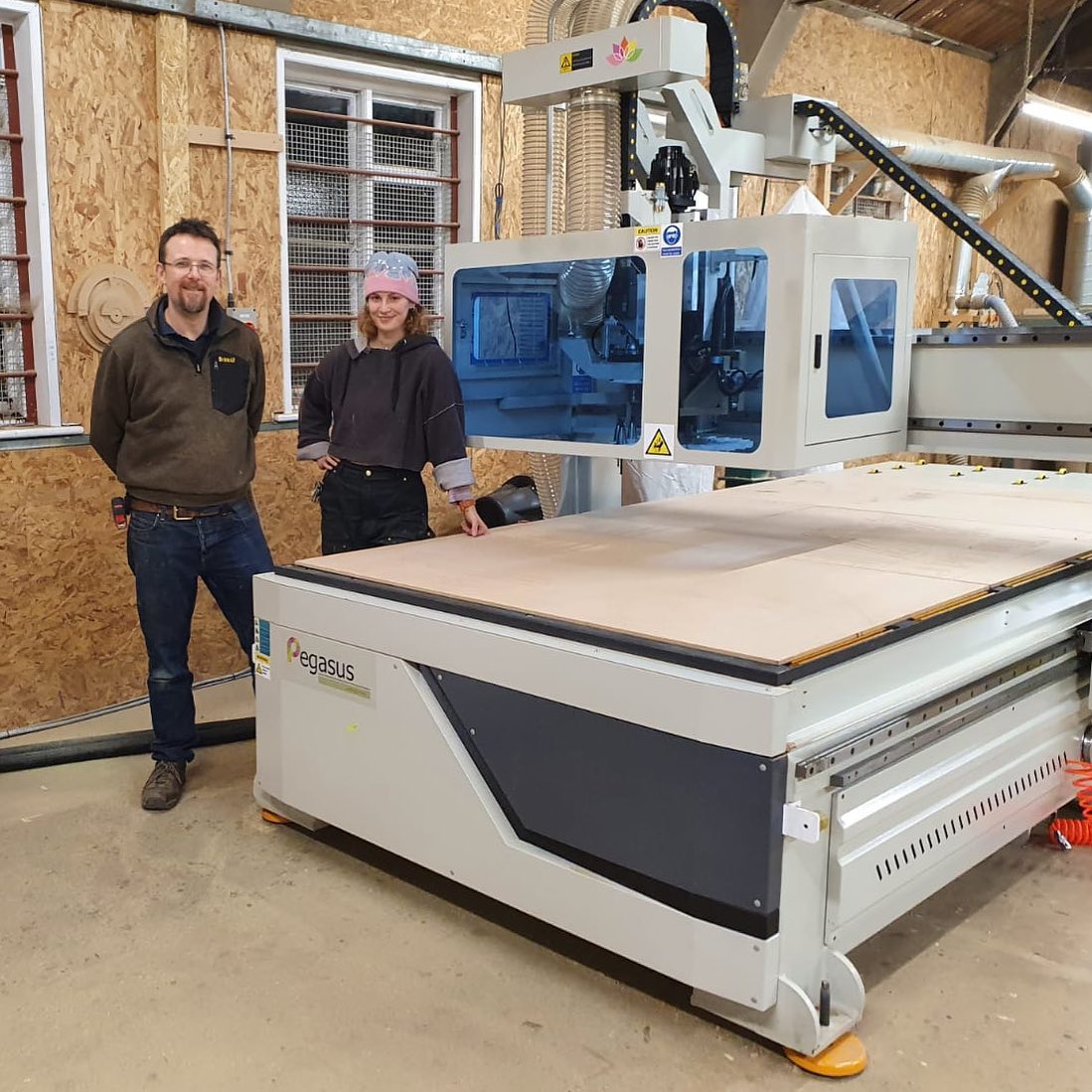

Check out our most recent Pegasus ATC CNC Router installations!
RELATED MODELS
Olympus
CNC Router
Tool Change Type: Manual Tool Change
Spindle: 6kW Air-cooled Spindle
Drives: Stepper Drives
Motors: Stepper Motors
Control System: DSP Hand Controller
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 3.0kW Extraction System Included
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training: Included
Upgrades Available: PC Control System.
Prices from £10,995 plus VAT
Olympus PRO
CNC Router
Tool Change Type: Manual
Spindle: 9kW HQD Spindle
Drives: Delta Servo Drives
Motors: Delta Servo Motors
Control System: Opus PRO Hand Controller
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 5.5kW Extraction System Included
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training: Machine and Software Training Included
Upgrades Available: PC Control System | ATC
Prices from £15,495 plus VAT
Olympus ATC
CNC Router
Tool Change Type: Linear 8 x ISO 30 Tools/Automatic Tool Change
Spindle: 9kW HQD Spindle
Drives: Servo Drives
Motors: Servo Motors
Control: Opus PRO Control System
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 5.5kW Extraction System Included
Extras: Material Locating PinsÂ
Software Included: VCarve Pro
Delivery & Installation: Included
Training: Machine and Software Training Included
Prices from £16,995 plus VAT
