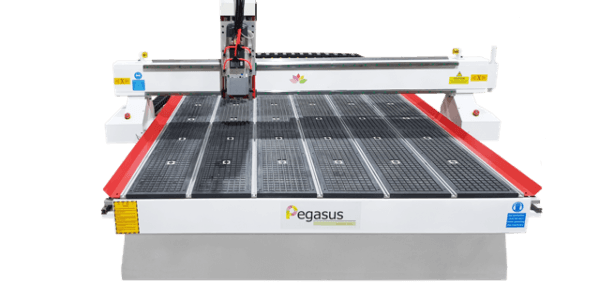

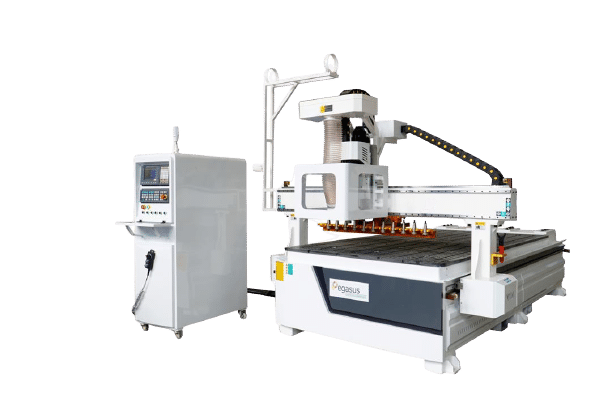

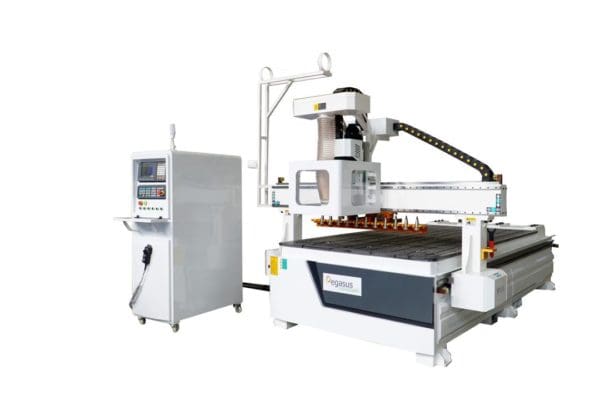

Pegasus Select ATC Routers

Industrial bespoke ATC router for specialised industries



ATC router with knife

Available in bespoke sizes, along with our popular sizes:

1300×1300 | 1300×2500 | 1525×3050 | 2100×3050 | 2000×4000 | 2000×6000

Overview

The Pegasus Select ATC CNC router has all the benefits of the Pegasus ATC, but comes with a Select attachment which are used in specialist industries.

Select Options:

Oscillating Blade | Tangential Knife | Creasing Wheel | Camera | Rotary | Drill Head

You must choose which Select option you require at the point of order and only the oscillating blade, tangential knife and creasing wheel units are interchangeable.

As standard, the Pegasus Select ATC CNC router comes with high-end, and industry-leading manufactured parts such as the 9kW Italian HSD spindle and Servo drive system. Additionally, the carousel automatic change station can accommodate up to 20 tools and carries out super-fast tool changes. The Pegasus Select ATC CNC router is in a league of its own.

Furthermore, all Pegasus Select ATC routers are available through finance and are available up to five years. They also come with two years full parts and labour warranty.

Additionally, we give the option to extend warranties up to 5 years. Also, we can carry out annual services on all of the Pegasus Select ATC routers.

Features

Gantry Height:  300mm as standard, with upgrades up to 900mm

Spindle Information:  24000rpm | 9kW Italian HSD

Extraction System:  7.5kW twin bag extraction included

Control System:  Syntec

Inverter:  Taiwan DELTA

Drives & Motors:  Servo Motors and Drives

XY Structure:  Helical rack and HIWIN linear bearing

Z Structure:  TBI MOTION ball screw and HIWIN linear bearing

Software: VCarve Pro | Alphacam

Inclusive:  Delivery, installation and full training

Overview

The Pegasus Select ATC CNC router has all the benefits of the Pegasus ATC, but comes with a Select attachment which are used in specialist industries.

Oscillating Blade | Tangential Knife | Creasing Wheel | Camera | Rotary | Drill Head

You must choose which Select option you require at the point of order and only the oscillating blade, tangential knife and creasing wheel units are interchangeable.

As standard, the Pegasus Select ATC CNC router comes with high-end, and industry-leading manufactured parts such as the 9kW Italian HSD spindle and Servo drive system. Additionally, the carousel automatic change station can accommodate up to 20 tools and carries out super-fast tool changes. The Pegasus Select ATC CNC router is in a league of its own.

Furthermore, all Pegasus Select ATC routers are available through finance and are available up to five years. They also come with two years full parts and labour warranty.

Additionally, we give the option to extend warranties up to 5 years. Also, we can carry out annual services on all of the Pegasus Select ATC routers.

ATC router with knife

Pegasus Select with Oscillating Blade

ATC router with knife

Features

Gantry Height:  300mm as standard, with upgrades up to 900mm

Spindle Information:  24000rpm | 9kW Italian HSD

Extraction System:  7.5kW twin bag extraction included

Control System:  Syntec

Inverter:  Taiwan DELTA

Drives & Motors:  Servo Motors and Drives

XY Structure:  Helical rack and HIWIN linear bearing

Z Structure:  TBI MOTION ball screw and HIWIN linear bearing

Working Voltage:  415v three phase

Software: VCarve Pro | Alphacam

Inclusive:  Delivery, installation and full training

Warranty: 2 years full parts and labour – extended warranty available

Choice of Select Specialist Attachment:

CCD camera | Oscillating blade | Tangential knife | Creasing wheel | Drill head | Rotary device

  • Oscillating Blade

    Oscillating Blade

    The oscillating blade is perfect for those thicker and harder materials. This unit moves up and down in a sawing action. It is also more robust than a traditional knife. The oscillating blade also gives straight edges and sharp corners and cuts cleanly and accurately.
  • Tangential Knife

    Tangential Knife

    The tangential knife is suitable for softer materials.  It also gives clean edges and is ideal for cutting materials such as rubber and single-ply textiles that tend to fray easily.
  • Drill Head

    Drill Head

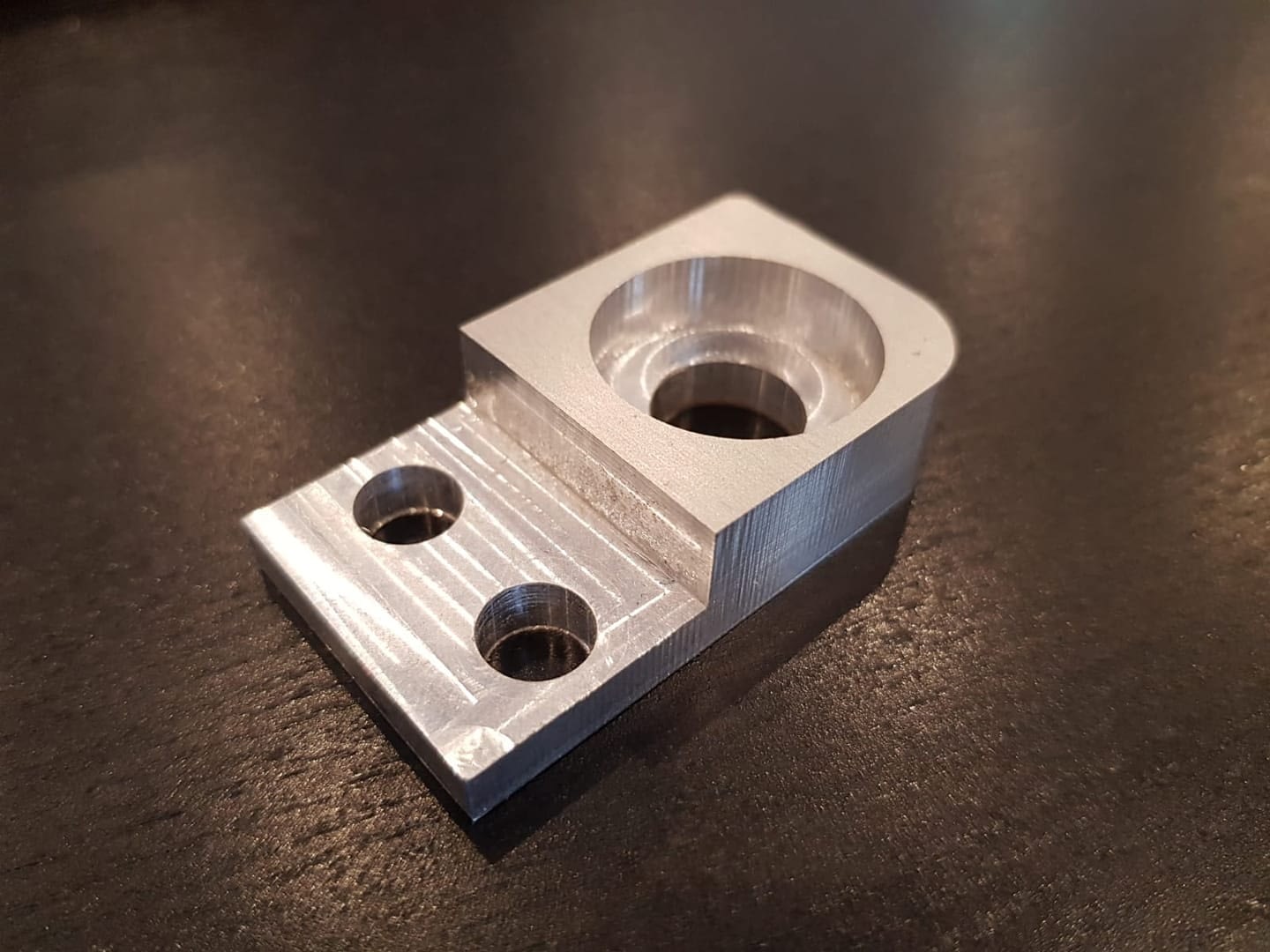

    A universal drill head with a variety of drill bits included for a wide range of different machining. Perfect for use with a vast selection of materials, including non-ferrous metals, plastics, woods and composite materials.
  • CCD Camera System

    CCD Camera System

    The camera system automatically adjusts the cutting tool path position and keeps within captured register marks on the workpiece. Therefore, it is useful when cutting out ready-printed designs where inaccuracies may need to be compensated for.
  • Rotary Device

    Rotary Device

    The rotary device enables full 360° rotation and is perfect for cylindrical carving and engraving. It makes it possible to machine profile bars and posts, such as newels for staircases and table or chair legs, with speed and ease.
  • Creasing Wheel

    Creasing Wheel

    The oscillating blade is perfect for those thicker and harder materials. This unit moves up and down in a sawing action. It is also more robust than a traditional knife. The oscillating blade also gives straight edges and sharp corners and cuts cleanly and accurately.
  • Oscillating Blade

    Oscillating Blade

    The oscillating blade is perfect for those thicker and harder materials. This unit moves up and down in a sawing action. It is also more robust than a traditional knife. The oscillating blade also gives straight edges and sharp corners and cuts cleanly and accurately.
  • Tangential Knife

    Tangential Knife

    The tangential knife is suitable for softer materials.  It also gives clean edges and is ideal for cutting materials such as rubber and single-ply textiles that tend to fray easily.
  • Drill Head

    Drill Head

    A universal drill head with a variety of drill bits included for a wide range of different machining. Perfect for use with a vast selection of materials, including non-ferrous metals, plastics, woods and composite materials.
  • CCD Camera System

    CCD Camera System

    The camera system automatically adjusts the cutting tool path position and keeps within captured register marks on the workpiece. Therefore, it is useful when cutting out ready-printed designs where inaccuracies may need to be compensated for.
  • Rotary Device

    Rotary Device

    The rotary device enables full 360° rotation and is perfect for cylindrical carving and engraving. It makes it possible to machine profile bars and posts, such as newels for staircases and table or chair legs, with speed and ease.
  • Creasing Wheel

    Creasing Wheel

    The oscillating blade is perfect for those thicker and harder materials. This unit moves up and down in a sawing action. It is also more robust than a traditional knife. The oscillating blade also gives straight edges and sharp corners and cuts cleanly and accurately.

Perfect for

Wood

Wood is the perfect material for a CNC router. With the correct tooling MDF, OSB, ply, laminate, as well as hard and soft wood, can be cut, routered or engraved easily.

Plastics

Acrylic, Dibond, polypropylene, polycarbonate, HDPE, UPVC and corrugated plastic are just some of the plastics which can be cut on the Olympus CNC router.

Soft Metals

With the correct tool coolant, the Olympus CNC router is capable of cutting many soft metals. Aluminium, lead, brass and copper can be cut cleanly.

Rubber | Flexiteek | Foam | Corian | Plexiglass | Vinyl | Card | Formica | Bakelite | Trespa | Foamboard | Leather | Polystyrene | Fibreboard | Textiles |

Perfect for

Wood

Wood is the perfect material for a CNC router. With the correct tooling MDF, OSB, ply, laminate, as well as hard and soft wood, can be cut, routered or engraved easily.

Plastics

Acrylic, Dibond, polypropylene, polycarbonate, HDPE, UPVC and corrugated plastic are just some of the plastics which can be cut on the Olympus CNC router.

Soft Metals

With the correct tool coolant, the Olympus CNC router is capable of cutting many soft metals. Aluminium, lead, brass and copper can be cut cleanly.

Rubber | Flexiteek | Foam | Corian | Plexiglass | Vinyl | Card | Formica | Bakelite | Trespa | Foamboard | Leather | Polystyrene | Fibreboard | Textiles |

Oscillating Blade v Tangential Knife

ATC router with knife

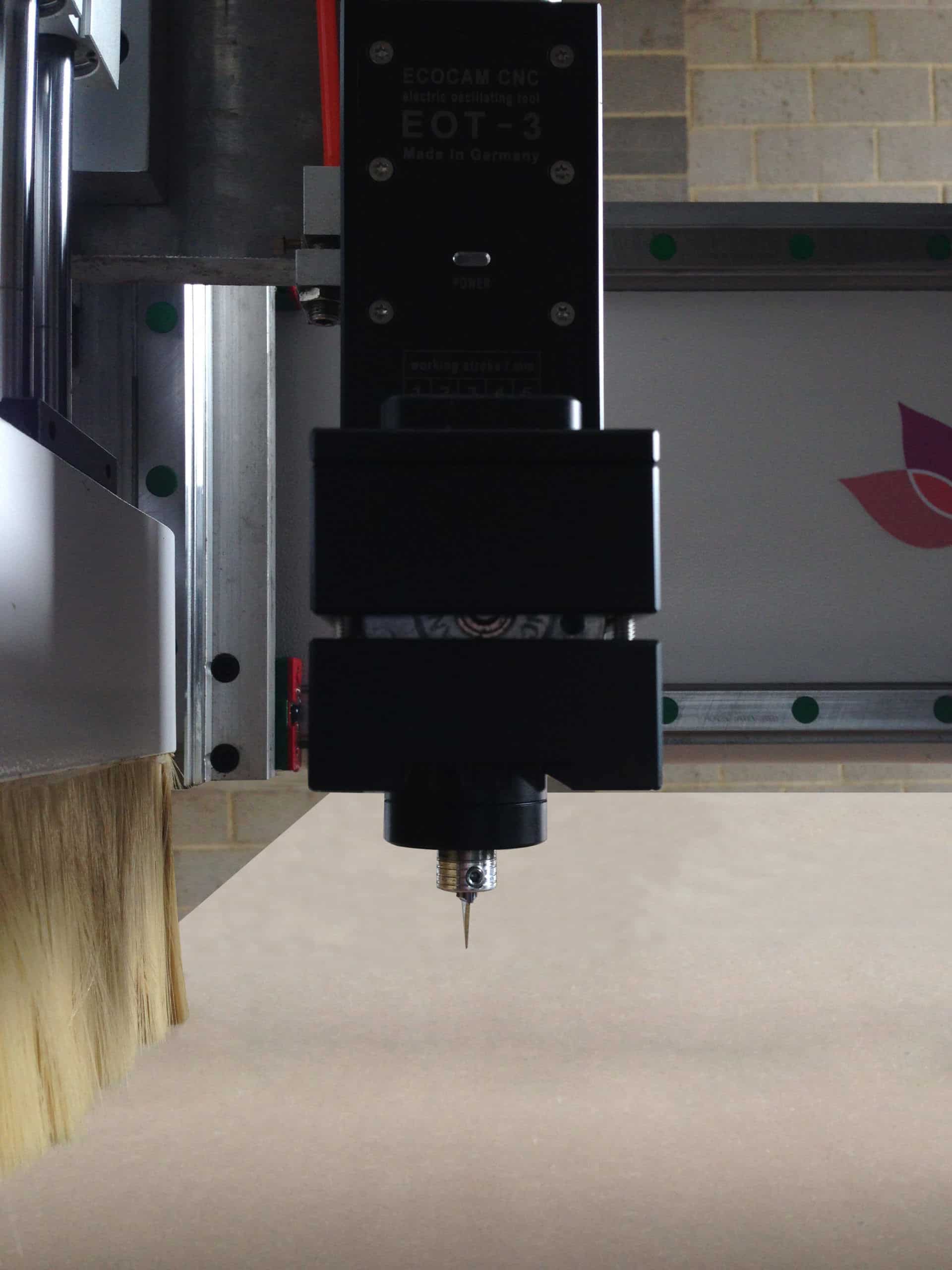

German EOT-3 Oscillating Knife

The German pneumatic oscillating blade unit cuts various materials such as cardboard, sealing materials, foils, corrugated cardboard, carbon fibre, prepreg material, leather, rigid foam and many others. The powerful oscillating motor moves the blade quickly up and down in a sawing action.



ATC router with knife

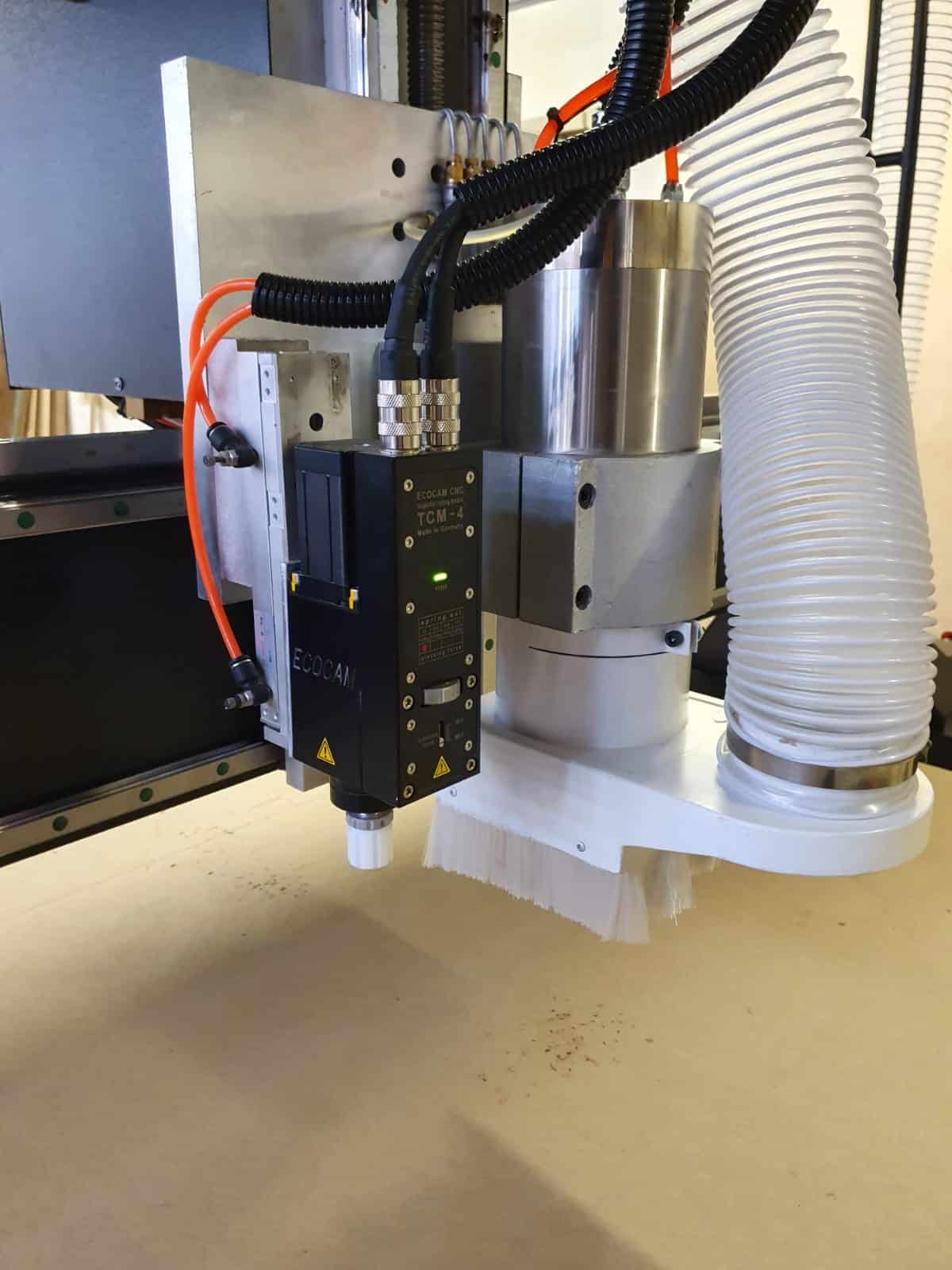

German TCM-4 Tangential Knife

The German pneumatic tangential knife unit is suitable for cutting materials such as foils and flocking materials. Small contours and writings are processed accurately and quickly. The pneumatic tangential knife is also commonly known as a blade.

Industries

Sets and Props

3D Cylindrical objects can be produced with little effort and time with the attached rotary device.

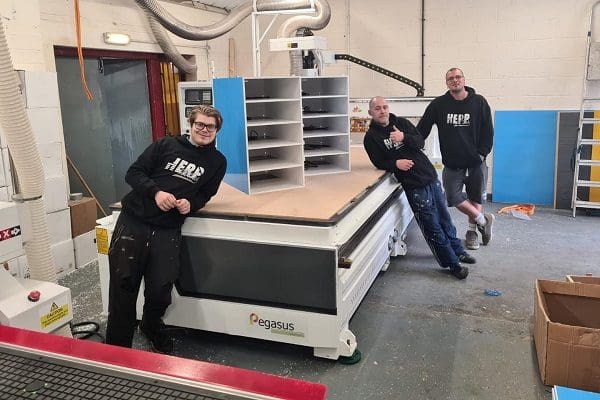

Packaging

The creasing wheel is perfect for packaging such as cardboard and corrugated cardboard.

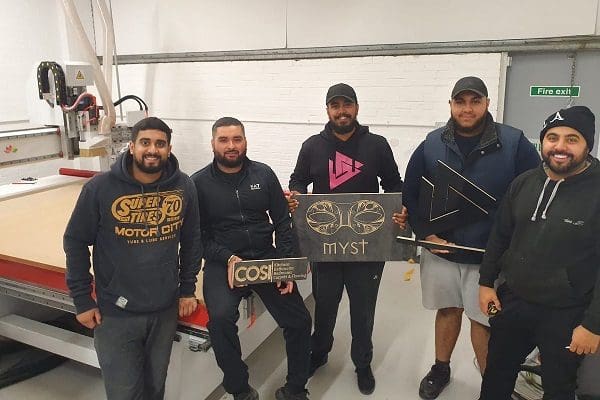

Engineering

Engineering firms are benefitting from the drill head into many materials such as wood and aluminium.

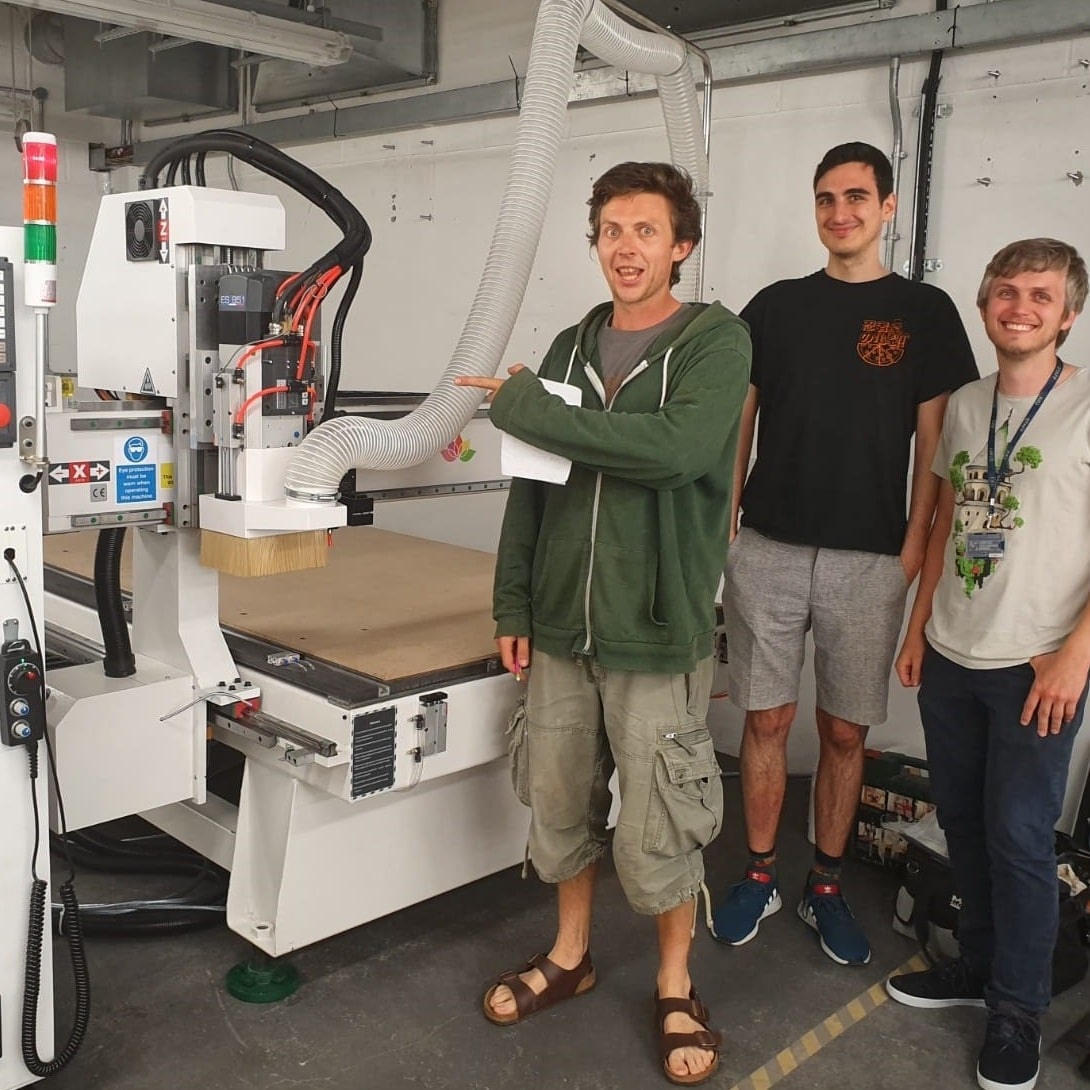

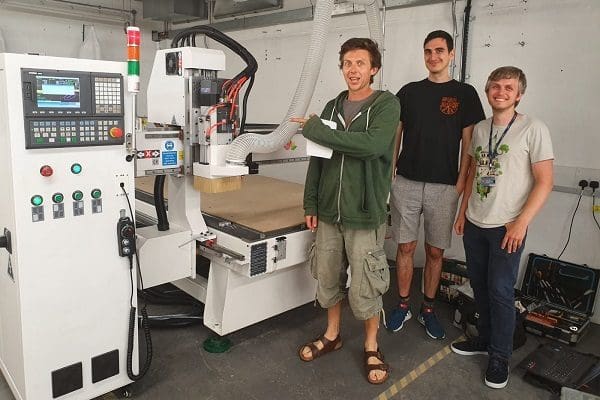

Universities

Prototypes can be produced with the amazing capabilities of the tangential knife.

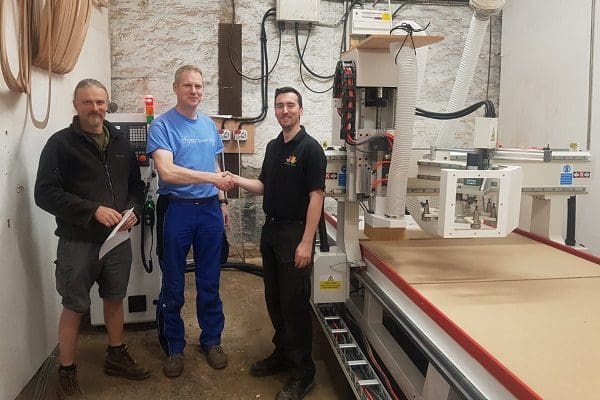

Boats

The oscillating blade will cut through hard materials such as flexiteek with ease.

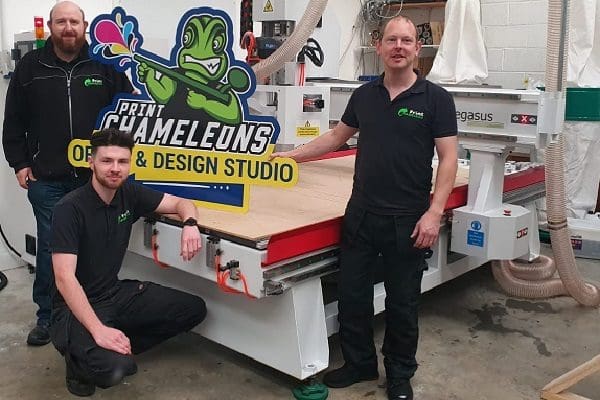

Sign and Print

The camera system will pick up registration marks on digital signs and print.

Trusted by

Fyne Boat Kits
LND Signs and Blinds
MDM Props
Logo
Catalyst EPS

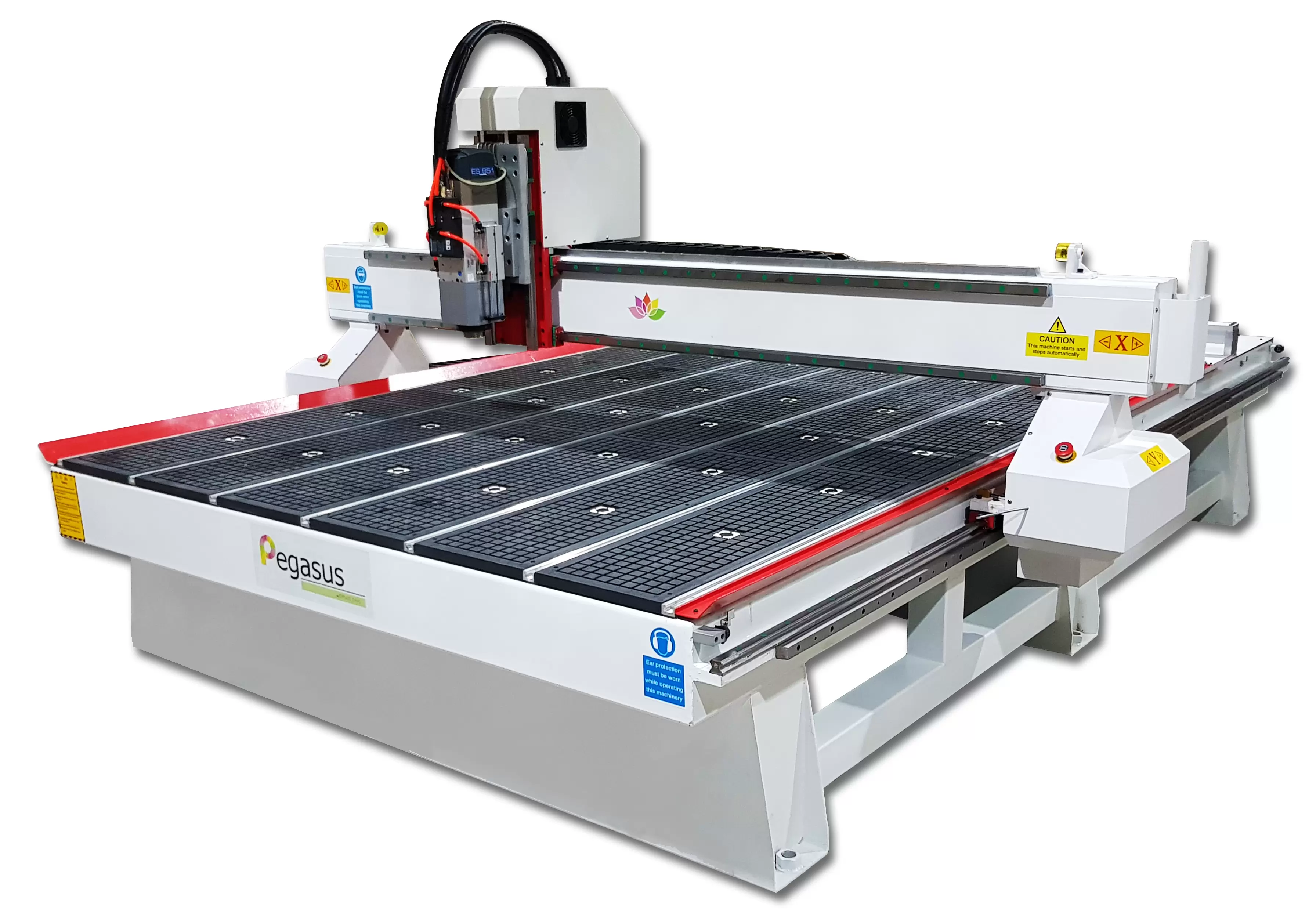

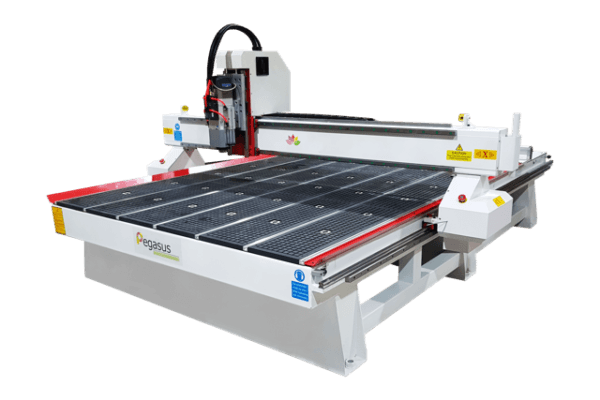

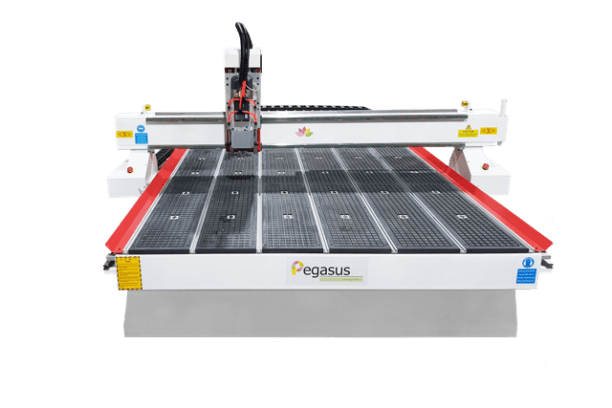

Pegasus ATC

Finance

Length

Finance can be taken out over two to five years.

Cost

From £130 per week

Information

Subject to status | No deposit needed | Tax Advantage



Want to book a demo or request more info?

We’re available 7 days a week – 8.30am to 6pm.

Summary

Pegasus Select ATC Router

With the same spec as the Pegasus ATC router but with the upgraded additonal bespoke attachment of choice.

Warranty

The Pegasus Select ATC router includes 2 years parts and labour warranty, with the option to extend to up to 5 years.

Software

VCarve Pro comes as standard with all Pegasus Select ATC routers. Upgrades to Aspire or Alphacam also available.

Aftercare Support

We understand the importance of customer service and that is why we stand out above everyone else.

Delivery, Installation & Training

Delivery, installation and training is included with the Pegasus Select ATC router at no additional cost.

Finance

Working in partnership with Anglo Scottish Asset Finance we can offer some of the best rates up to five years.

Summary

Pegasus Select ATC Router

With the same spec as the Pegasus ATC router but with the upgraded additonal bespoke attachment of choice.

Software

VCarve Pro comes as standard with all Pegasus Select ATC routers. Upgrades to Aspire or Alphacam also available.

Delivery, Installation & Training

Delivery, installation and training is included with the Pegasus Select ATC router at no additional cost.

Warranty

The Pegasus Select ATC router includes 2 years parts and labour warranty, with the option to extend to up to 5 years.

Aftercare Support

We understand the importance of customer service and that is why we stand out above everyone else.

Finance

Working in partnership with Anglo Scottish Finance we can offer some of the best rates up to five years.
