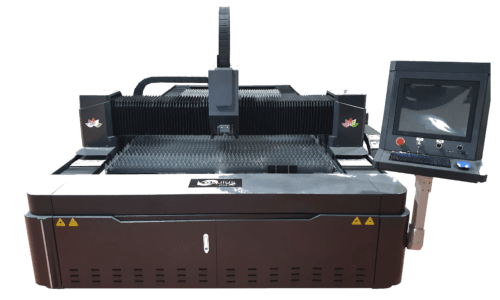

LUMI ULTRA
FIBRE LASER
The Lumi ULTRA metal cutting fibre laser stands out due to its efficiency, delivering high-powered, precise cuts with exceptional speed.
LUMI ULTRA
FIBRE LASER
The Lumi ULTRA metal cutting fibre laser stands out due to its efficiency, delivering high-powered, precise cuts with exceptional speed.
LUMI ULTRA
FIBRE LASER
The Lumi ULTRA metal cutting fibre laser stands out due to its efficiency, delivering high-powered, precise cuts with exceptional speed.
LUMI ULTRA
FIBRE LASER
The Lumi ULTRA metal cutting fibre laser stands out due to its efficiency, delivering high-powered, precise cuts with exceptional speed.

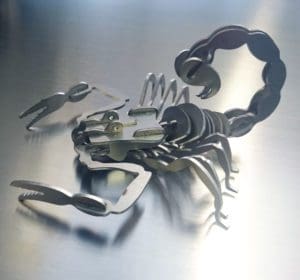

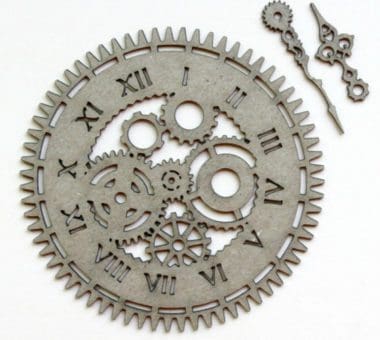

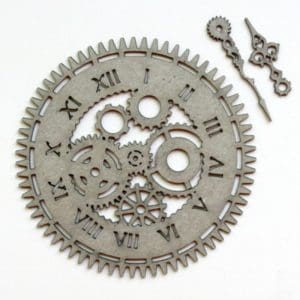

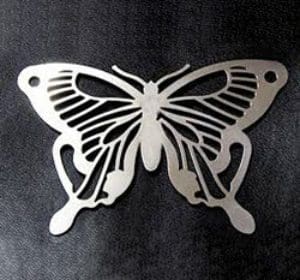

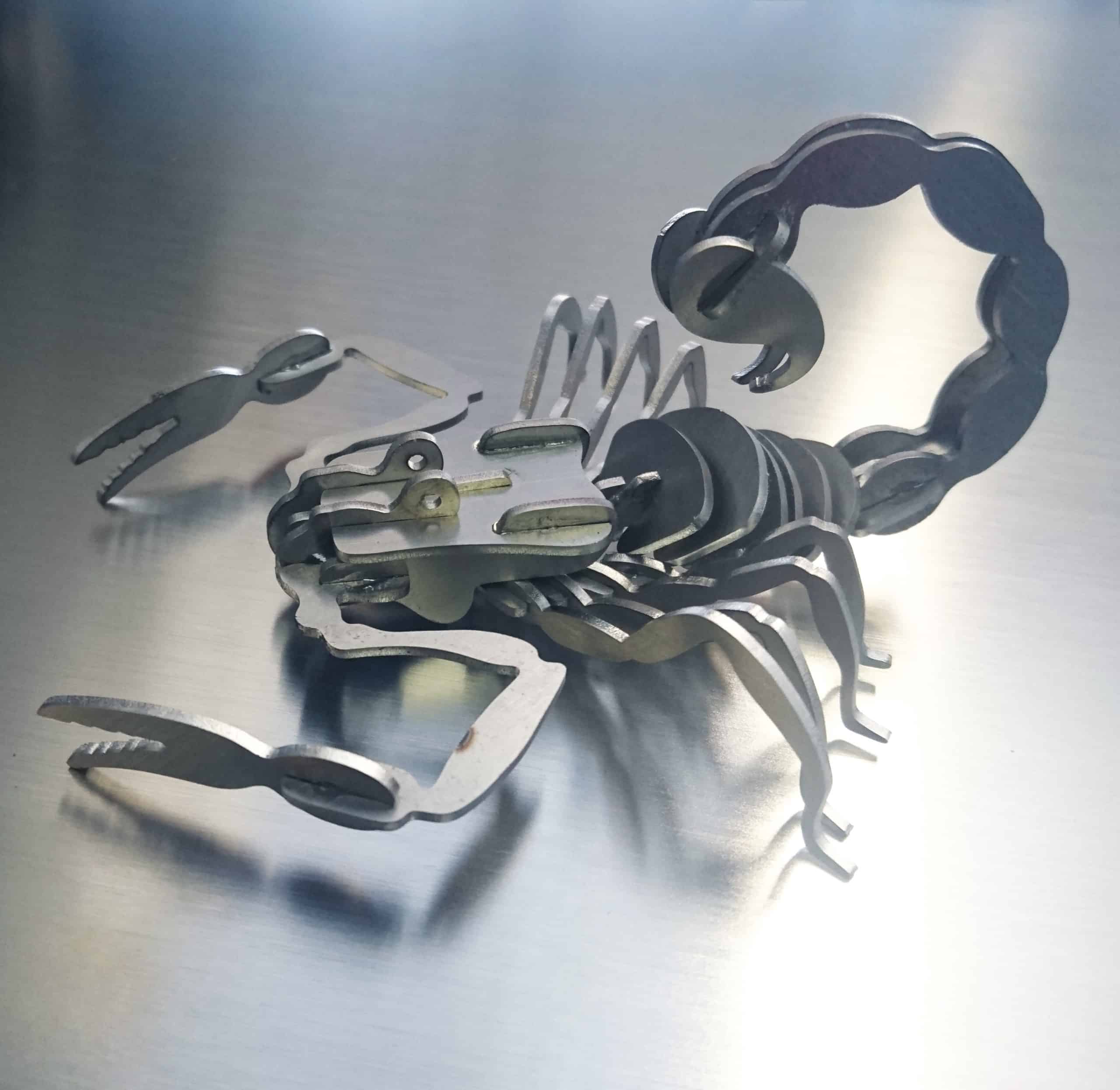

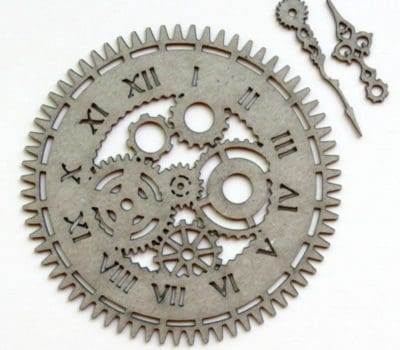

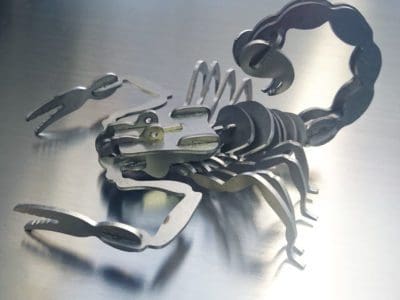

LUMI ULTRA FIBRE LASER SAMPLES
Overview
Powerful
With up to a powerful 6kW, the Lumi ULTRA fibre laser can cleanly cut materials such as 12mm Aluminium, 25mm Mild Steel and 14mm Stainless Steel.
Yaskawa Servo Drives
Yaskawa servo motors and drives on the Lumi ULTRA fibre laser give accuracy, smoothness and reliability, only found on high-specification fibre lasers.
Raycus Laser Source
Raycus laser sources are known for their high reliability & are manufactured to meet stringent quality standards, making them suitable for continuous use. Alternatively, we can opt for the Max laser source, if required.
Industrial
With rapid cutting speeds, manufacturers are able to complete more jobs in less time, leading to higher production throughput and reduced lead times.
CypCut Control System
CypCut provides an intuitive and user-friendly interface, making it easy for operators to navigate and control the laser whilst also offering advanced features.
Warranty
We offer 2 years full parts and labour warranty with all Lumi ULTRA fibre laser machines.Â
Delivery
All Lumi ULTRA fibre laser machines as delivered by a HIAB lorry and is included in the price.
Installation
One of the Opus engineers will carry out the full installation. All Opus engineers are experienced and go through vigorous in-house training programs throughout their Opus careers.
Training
Machine and software training is fully inclusive with the Lumi ULTRA fibre laser and is divided into three sections: machine operation, software, and safety. We customise all training to match individual capabilities.
Models
Lumi ULTRA 1212
Fibre Laser
Working Area: 1200 x 1200mm
Dimensions: 2545L x 2204W x 2115H
Japanese Servo Motors & Drives
Raycus or Max Laser Source
Raytools Cutting Head
CypCut Control System
Automatic Lubrication
Networkable
CW Chiller Included
Enclosure Attached
Working Voltage 415v
Lumi ULTRA 1325
Fibre Laser
Working Area: 1300 x 2500mm
Dimensions: 4100L x 2550W x 1200H
Japanese Servo Motors & Drives
Raycus or Max Laser Source
Raytools Cutting Head
CypCut Control System
Automatic Lubrication
Networkable
CW Chiller Included
The enclosure is optional
Working Voltage 415v
Lumi ULTRA 1530
Fibre Laser
Working Area: 1500 x 3000mm
Dimensions: 4600L x 2750W x 1200H
Japanese Servo Motors & Drives
Raycus or Max Laser Source
Raytools Cutting Head
CypCut Control System
Automatic Lubrication
Networkable
CW Chiller Included
The enclosure is optional
Working Voltage 415v

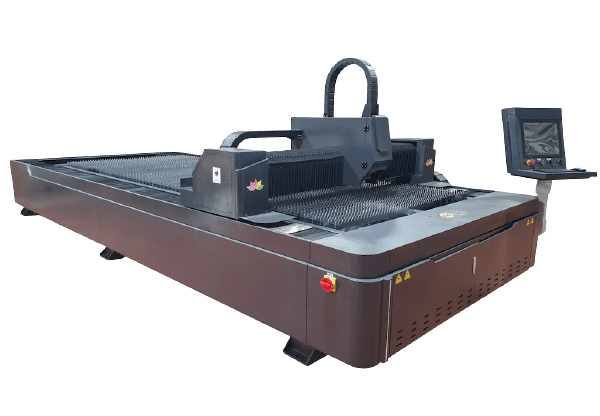

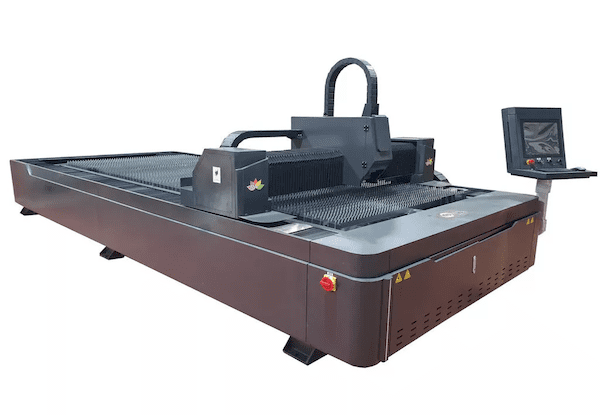

Lumi ULTRA 1540
Fibre Laser
Working Area: 1500 x 4000mm
Dimensions: 5600L x 2750W x 1200H
Japanese Servo Motors & Drives
Raycus or Max Laser Source
Raytools Cutting Head
CypCut Control System
Automatic Lubrication
Networkable
CW Chiller Included
The enclosure is optional
Working Voltage 415v
Lumi ULTRA 2030
Fibre Laser
Working Area: 2000 x 3000mm
Dimensions: 4600L x 3250W x 1200H
Japanese Servo Motors & Drives
Raycus or Max Laser Source
Raytools Cutting Head
CypCut Control System
Automatic Lubrication
Networkable
CW Chiller Included
The enclosure is optional
Working Voltage 415v
Lumi ULTRA 2040
Fibre Laser
Working Area: 2000 x 4000mm
Dimensions: 5600L x 3250W x 1200H
Japanese Servo Motors & Drives
Raycus or Max Laser Source
Raytools Cutting Head
CypCut Control System
Automatic Lubrication
Networkable
CW Chiller Included
The enclosure is optional
Working Voltage 415v
Want to see more?
Check Out The Lumi ULTRA Fibre Laser in Action Below!
Lumi Ultra Fibre Laser
Cutting Depths
We suggest considering an upgrade to the next power level if you plan to cut materials at their maximum depth capacity. For instance, if you are aiming to cut 6mm aluminium, we recommend a 3kW laser. While a 2.0kW laser can handle 6mm aluminium, it will operate at its maximum power to do so.
Aluminium
Mild Steel
Stainless Steel
1.0kW
Up to 2mm - Ideal
3mm Max Power
Up to 8mm - Ideal
10mm Max Power
Up to 4mm - Ideal
5mm Max Power
1.5kW
Up to 4mm - Ideal
5mm Max Power
Up to 14mm - Ideal
16mm Max Power
Up to 5mm - Ideal
6mm Max Power
2.0kW
Up to 5mm - Ideal
6mm Max Power
Up to 16mm - Ideal
18mm Max Power
Up to 7mm - Ideal
8mm Max Power
3.0kW
Up to 7mm - Ideal
8mm Max Power
Up to 18mm - Ideal
20mm Max Power
Up to 9mm - Ideal
10mm Max Power
4.0kW
Up to 9mm - Ideal
10mm Max Power
Up to 20mm - Ideal
22mm Max Power
Up to 11mm - Ideal
12mm Max Power
6.0kW
Up to 11mm - Ideal
12mm Max Power
Up to 23mm - Ideal
25mm Max Power
Up to 13mm - Ideal
14mm Max Power
Request A Quotation
Want to join our long list of satisfied customers? Then, why not fill in the form to receive a no-obligation quotation from one of our experienced engineers?
Don’t worry, we won’t hassle any potential customer! All the Opus team are engineers, not sales-people!
Want to join our long list of satisfied customers? Then, why not fill in the form below to receive a no-obligation quotation from one of our experienced engineers?
Don’t worry, we won’t hassle any potential customer! All the Opus team are engineers, not sales-people!
Queries & Answers
Is Opus a UK company?
Yes, we are based in the North East of England and we have an extensive team of engineers who work throughout the whole of the UK, including an engineer who is based in Northern Ireland.
What software is supplied?
We supply CypCut which is a highly regarded laser cutting software known for its ease of use, powerful features, and robust performance, making it ideal for the Lumi Ultra fibre laser machines. One of its key strengths is its intuitive interface, which allows users, even those with minimal experience, to quickly and efficiently design, edit, and execute cutting jobs.
Is training included?
Certainly! Our great engineers know how to capture and maintain the interest of their learners. They make training interactive, using practical examples, real-world applications, and engaging activities to keep the learners involved.
Is Delivery Included?
Certainly, your Lumi ULTRA fibre laser will be delivered by a HIAB lorry. Therefore, a forklift is not required to offload the laser machine.
Do I need 3-phase electric supply?
All Lumi Ultra fibre lasers are 415v (3-phase) supply, We can however, manufacture this machine in single phase if required.Â
What bed sizes are available?
We offer the Lumi ULTRA fibre lasers in five sizes, 1200x1200mm, 1300x2500mm, 1500x3000mm, 2000x3000mm and 2000x4000mm.Â
