OCULUS
FIBRE LASERS
Designed in the UK, the Oculus fibre laser cutting machine makes cutting into metal quick and easy, with high precision and accuracy. With a unique steel grid incorporated into its bed, ensuring superior laser cutting capabilities, this reliable fibre laser is popular with many industries, from shopfitters, sign-makers, and automotive to metal fabricators.
OCULUS FIBRE KEY ELEMENTS
01 Powerful
Up to 6kW
With up to a powerful 6kW, the Oculus Fibre Laser can cleanly cut materials such as 12mm Aluminium, 25mm Mild Steel and 14mm Stainless Steel.
02 Yaskawa Servo
Motors & Drives
Yaskawa servo motors and drives on the Oculus fibre laser give solidity, smoothness and reliability, only found on high-specification fibre lasers.
03 Raycus
Laser Source
Raycus laser sources are known for their high reliability & are manufactured to meet stringent quality standards, making them suitable for continuous use.
04 CypCut
Control System
CypCut provides an intuitive and user-friendly interface, making it easy for operators to navigate and control the laser whilst also offering advanced features.
05 Industrial
Build
With rapid cutting speeds, manufacturers are able to complete more jobs in less time, leading to higher production throughput and reduced lead times.
06 2 Years
Warranty
As we are confident in the reliability of our fibre lasers we always offer a full 2 years parts and labour warranty regardless of your location in the UK.
Want to See the Oculus Fibre in Action?
Check out the Oculus Fibre Laser cutting different applications below.
Book a no-obligation demo with one of the Opus team
To see the Oculus Fibre machine in action, let us know and we can organise a demo on a day that works for you. Our hard-working engineers are also available on a weekend to carry out demonstrations.
MODEL SPECIFICATIONS
MODEL SPECIFICATIONS
Oculus 1212
Fibre Laser
Working Area: 1200 x 1200mm
Size: W2204 x L2545 x H2115mm Blade Table
30mm Table Depth
Raytools Cutting Head with Auto Focus Head
Raycus Laser Source
Yaskawa Servo Motors & Drives
Japanese Shimpo Reducers
Extraction Fan
CW Chiller Included
Cypcut Control System
Inclusive of On-Board PC Control System
Weight >3,800kg
Oculus 1325
Fibre Laser
Working Area: 1300 x 2500mm
Size: W2550 x L4100 x H1255mm Blade Table
30mm Table Depth
Raytools Cutting Head with Auto Focus Head
Raycus Laser Source
Yaskawa Servo Motors and Drives
Japanese Shimpo Reducers
Extraction Fan
CW Chiller Included
Cypcut Control System
Inclusive of On-Board PC Control System
Weight >3,800kg
Oculus 1530
Fibre Laser
Working Area: 1500 x 3000mm
Size: W2750 x L4600 x H1255mm Blade Table
30mm Table Depth
Raytools Cutting Head with Auto Focus Head
Raycus Laser Source
Yaskawa Servo Motors and Drives
Japanese Shimpo Reducers
Extraction Fan
CW Chiller Included
Cypcut Control System
Inclusive of On-Board PC Control System
Weight >3,800kg
Oculus 1540
Fibre Laser
Working Area: 1500 x 4000mm
Size: W2750 x L5600 x H1255mm Blade Table
30mm Table Depth
Raytools Cutting Head with Auto Focus Head
Raycus Laser Source
Yaskawa Servo Motors and Drives
Japanese Shimpo Reducers
Extraction Fan
CW Chiller Included
Cypcut Control System
Inclusive of On-Board PC Control System
Weight >3,800kg
Oculus 2030
Fibre Laser
Working Area: 2000 x 3000mm
Size: W3250 x L4600 x H1255mm Blade Table
30mm Table Depth
Raytools Cutting Head with Auto Focus Head
Raycus Laser Source
Yaskawa Servo Motors and Drives
Japanese Shimpo Reducers
Extraction Fan
CW Chiller Included
Cypcut Control System
Inclusive of On-Board PC Control System
Weight >3,800kg
Oculus 2040
Fibre Laser
Working Area: 2000 x 4000mm
Size: W3250 x L5600 x H1255mm Blade Table
30mm Table Depth
Raytools Cutting Head with Auto Focus Head
Raycus Laser Source
Yaskawa Servo Motors and Drives
Japanese Shimpo Reducers
Extraction Fan
CW Chiller Included
Cypcut Control System
Inclusive of On-Board PC Control System
Weight >3,800kg
Want to find out more?
Don’t worry we will never hassle any potential customer, and only offer professional, impartial and relevant advice!
Request a Quotation
Get a no-obligation quote for one of our Oculus Fibre Lasers
oculus fibre laser
cutting depths
We suggest considering an upgrade to the next power level if you plan to cut materials at their maximum depth capacity. For instance, if you are aiming to cut 5mm aluminium, we recommend a 3kW laser. While a 2.0kW laser can handle 5mm aluminium, it will operate at its maximum power to do so.
1.0kW
1.5kW
2.0kW
3.0kW
4.0kW
6.0kW
Aluminium
Up to 2mm - Ideal
3mm Max Power
Up to 4mm - Ideal
5mm Max Power
Up to 5mm - Ideal
6mm Max Power
Up to 7mm - Ideal
8mm Max Power
Up to 9mm - Ideal
10mm Max Power
Up to 11mm - Ideal
12mm Max Power
Mild Steel
Up to 8mm - Ideal
10mm Max Power
Up to 14mm - Ideal
16mm Max Power
Up to 16mm - Ideal
18mm Max Power
Up to 18mm - Ideal
20mm Max Power
Up to 20mm - Ideal
22mm Max Power
Up to 23mm - Ideal
25mm Max Power
Stainless Steel
Up to 4mm - Ideal
5mm Max Power
Up to 5mm - Ideal
6mm Max Power
Up to 7mm - Ideal
8mm Max Power
Up to 9mm - Ideal
10mm Max Power
Up to 11mm - Ideal
12mm Max Power
Up to 13mm - Ideal
14mm Max Power
Queries and Answers
Queries and Answers
Is Delivery
Included?
Included within our comprehensive package, we provide the delivery of all Oculus Fibe Lasers. For models 1313, 1325, and 1530, our delivery is facilitated by a curtain sider lorry. For the larger models, a HIAB service is utilised. It’s worth noting that HIAB deliveries do not necessitate a forklift for unloading. However, for curtain sider deliveries, a forklift with a capacity of 5 tons is required to complete the unloading process.
Two pallet trucks are then required to position the Oculus fibre laser. Alternatively, a forklift can be used.
Is Installation and Training Included?
Absolutely, a skilled and approachable engineer from our team will conduct comprehensive risk evaluations and provide any requisite guidance. To ensure a seamless installation process and avoid potential delays or cancellations, we kindly request that all electrical prerequisites be prepared beforehand.
With a proven track record of transforming individuals into experts, our engineers are a beacon of excellence in lasers and skill development. You will receive machine training, safety management and software training. Furthermore, our engineers adeptly customise their training approach to align perfectly with your requirements and proficiencies!
What If I Don't Have 3 Phase?
Oculus fibre lasers come equipped with a 3-phase connectivity setup. Nevertheless, we do have the capability to manufacture the Oculus fibre laser with a single-phase configuration if required.
What Warranty is included?
Our trust in the reliability of the Oculus Fibre Laser is unwavering, and that’s why we provide an extensive warranty covering parts and labour for two full years. While some businesses might present a 3-year warranty, it’s essential to note that the third year often covers only parts. We emphasise the significance of avoiding situations where substantial labour expenses keep you bound to those terms.
The Full Package
All Oculus Fibre Lasers come with:
- Delivery
- Installation
- Machine Training
- Software Training
- 2 Years Parts & Labour Warranty
Additionally, when you purchase a fibre laser from Opus, you become a member of the Opus family with access to our customer portal and lifetime aftercare.
Finance Options
We understand how vital cash flow can be, which is why we work with leading asset finance provider Anglo Scottish Asset Finance who offer competitive business finance across the UK.
We understand how vital cash flow can be, which is why we work with leading asset finance provider Anglo Scottish Asset Finance who offer competitive business finance across the UK.
We understand how vital cash flow can be, which is why we work with leading asset finance provider Anglo Scottish Asset Finance who offer competitive business finance across the UK.

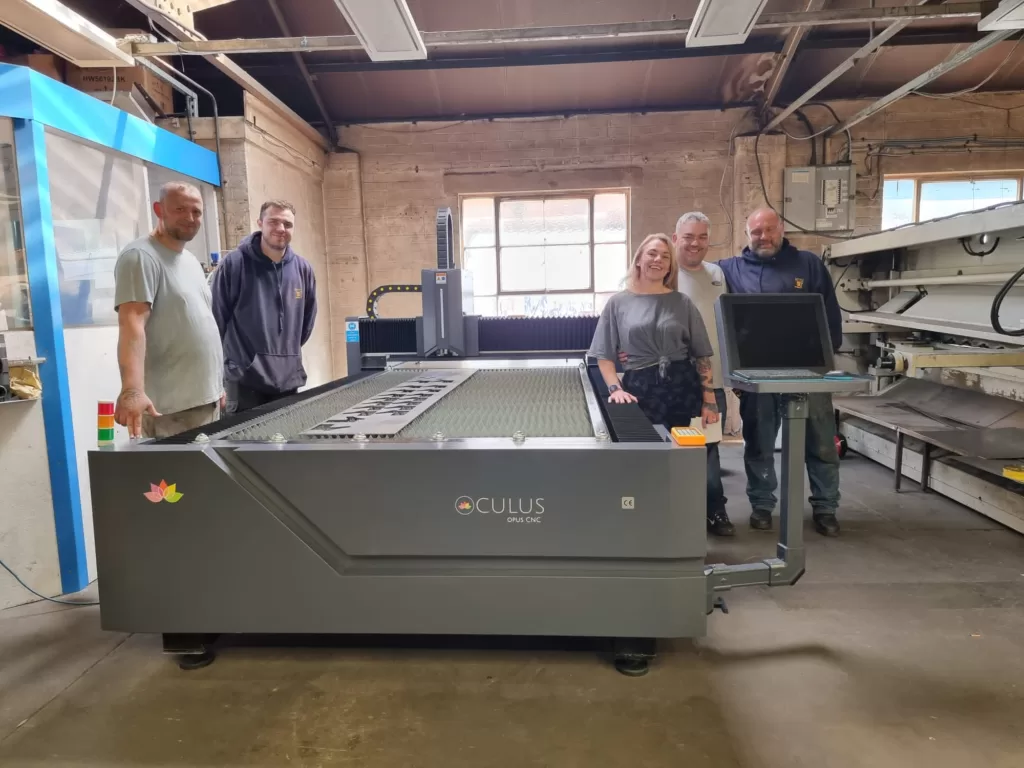

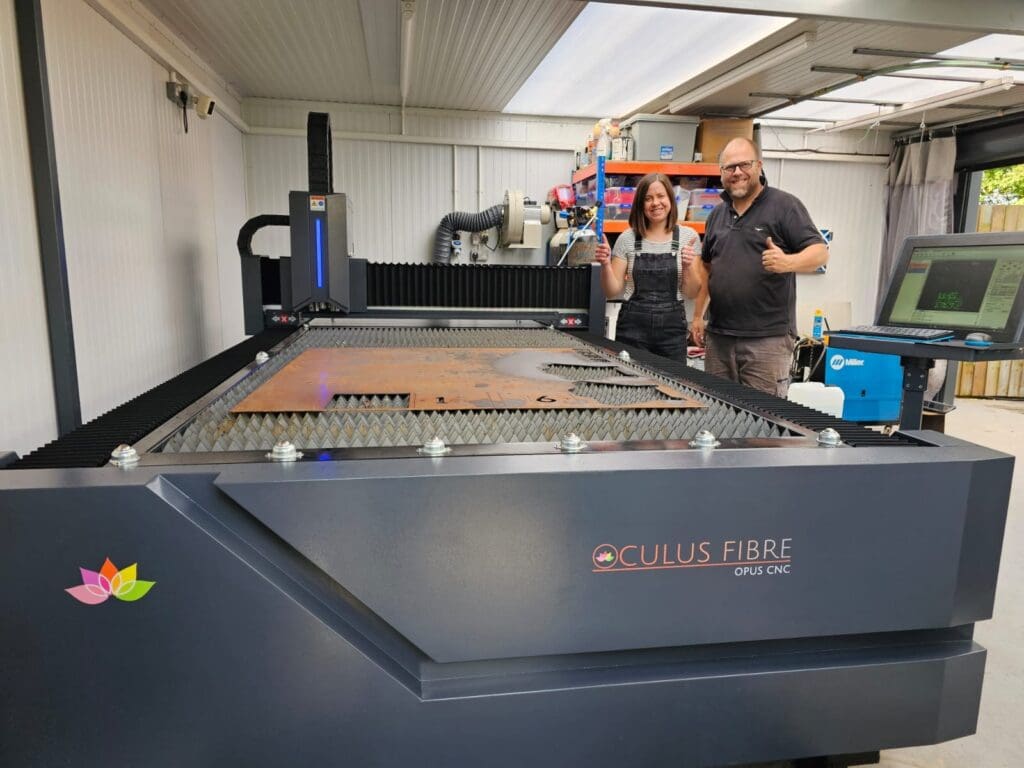

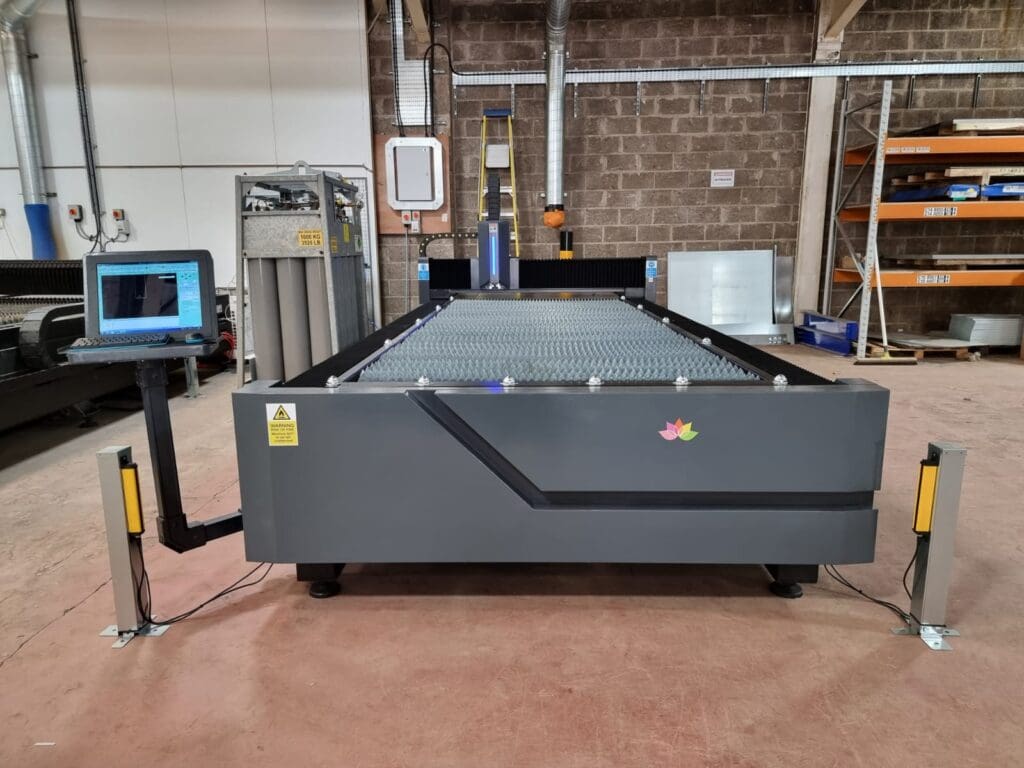

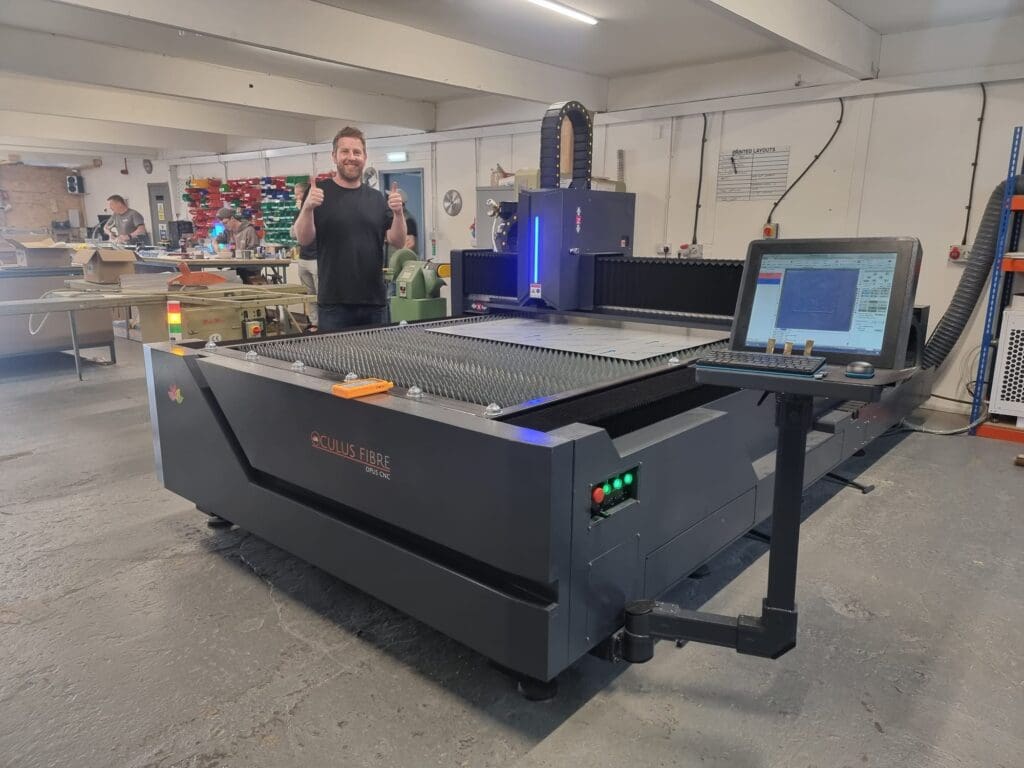

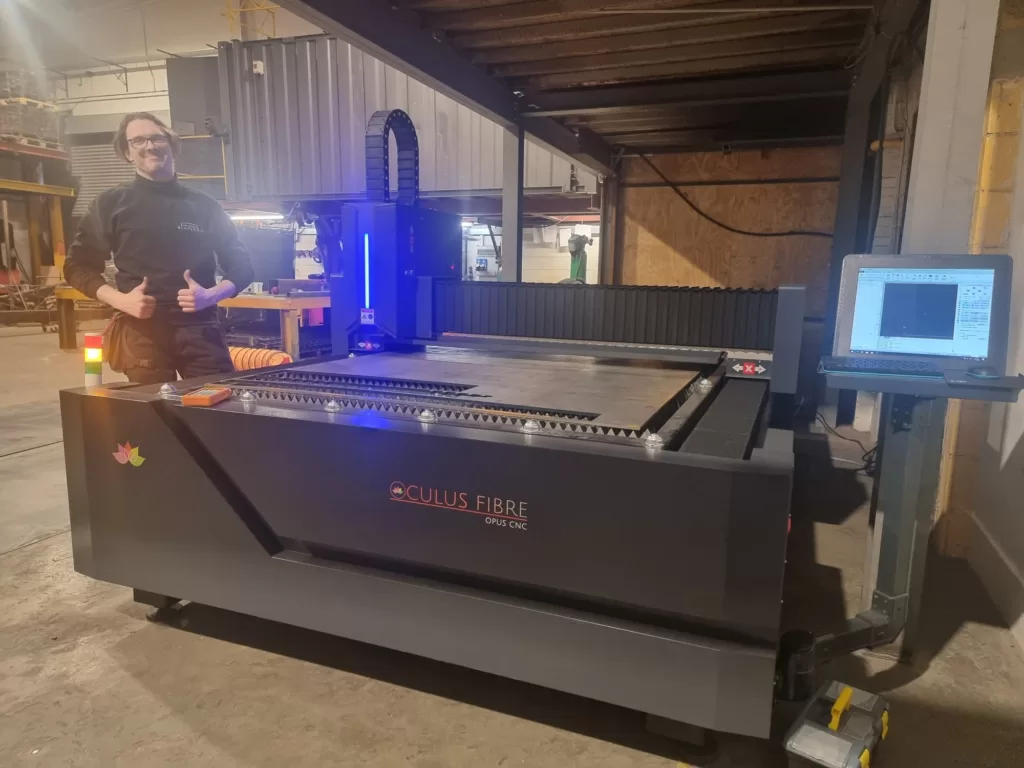

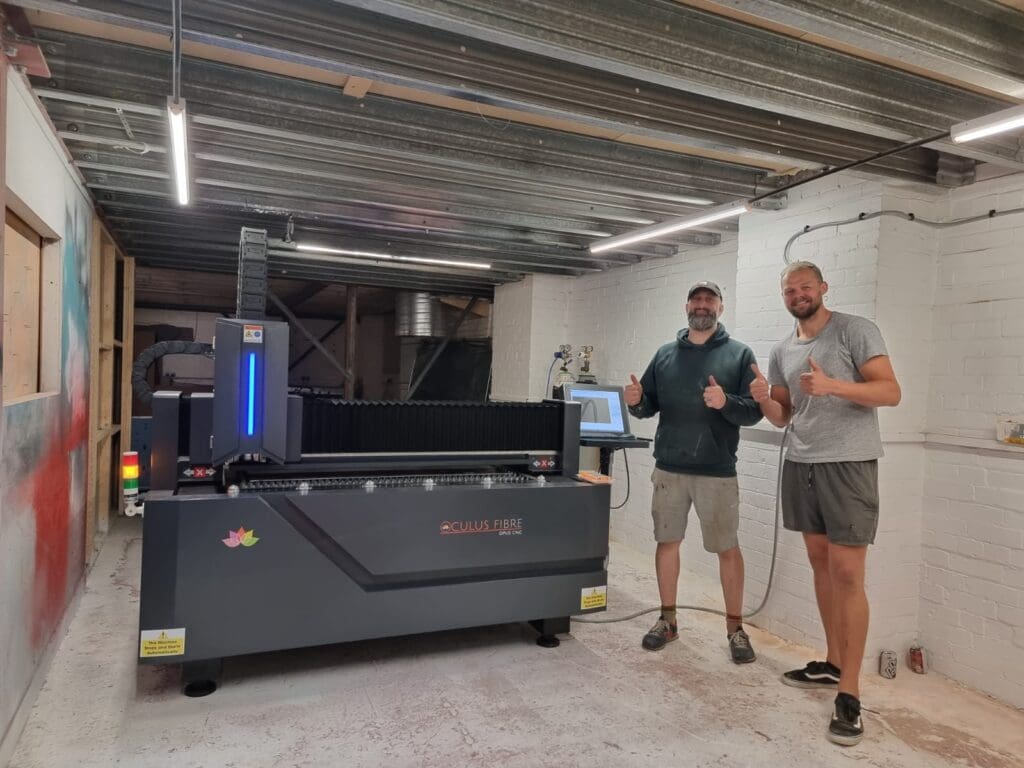

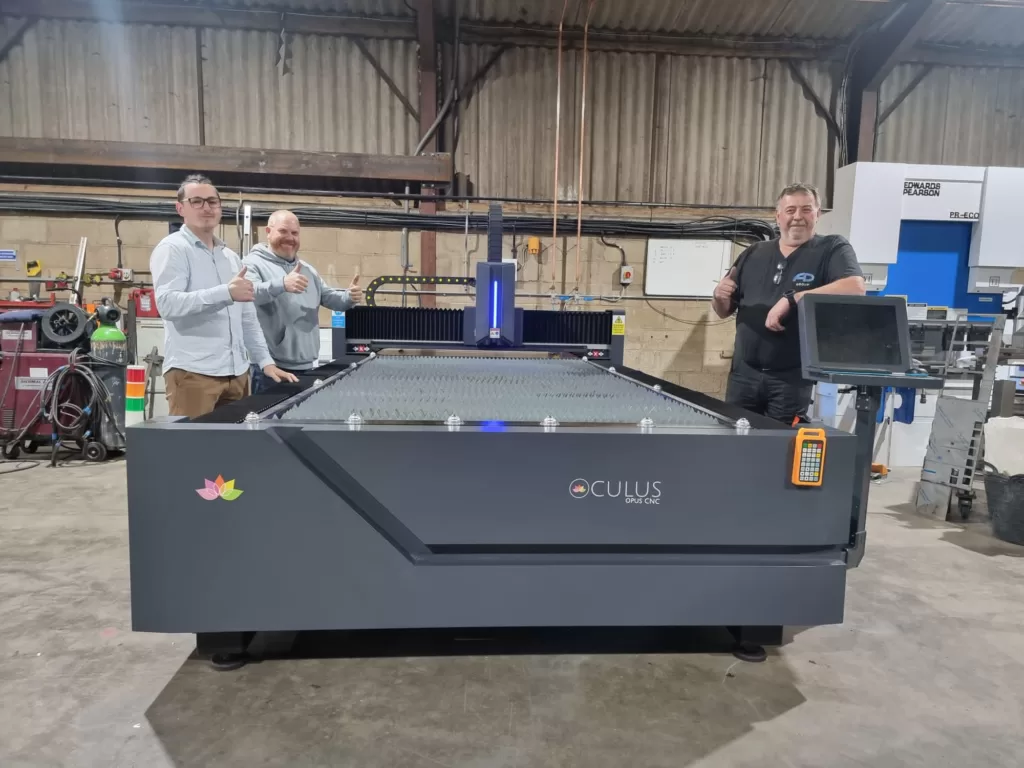

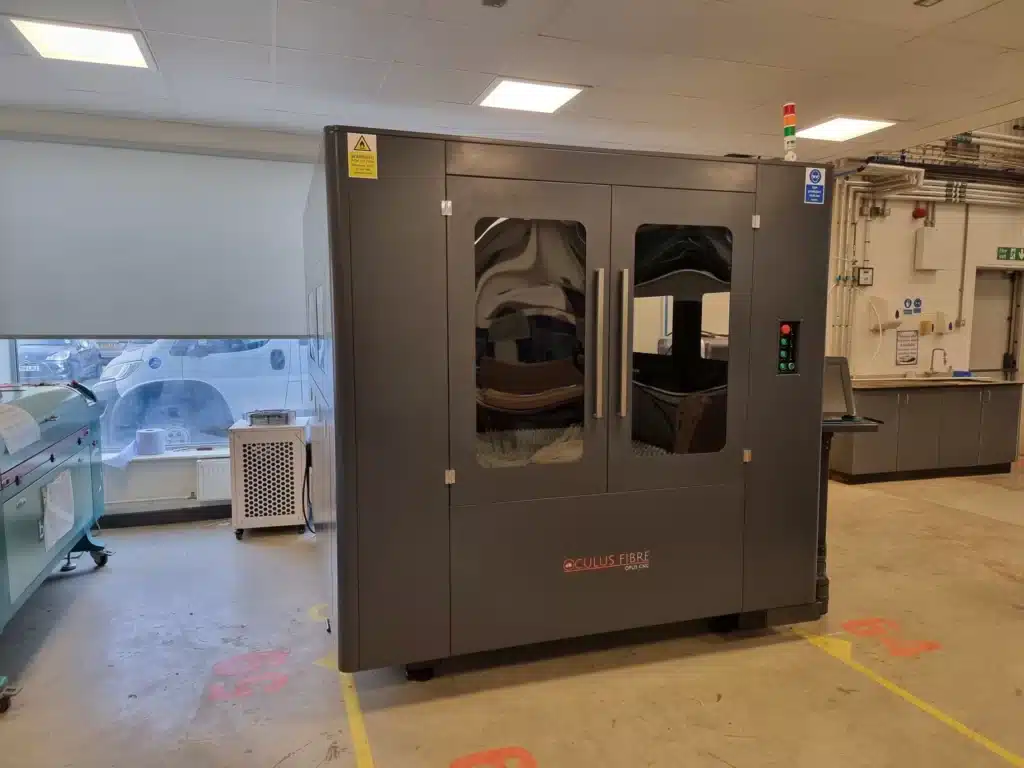

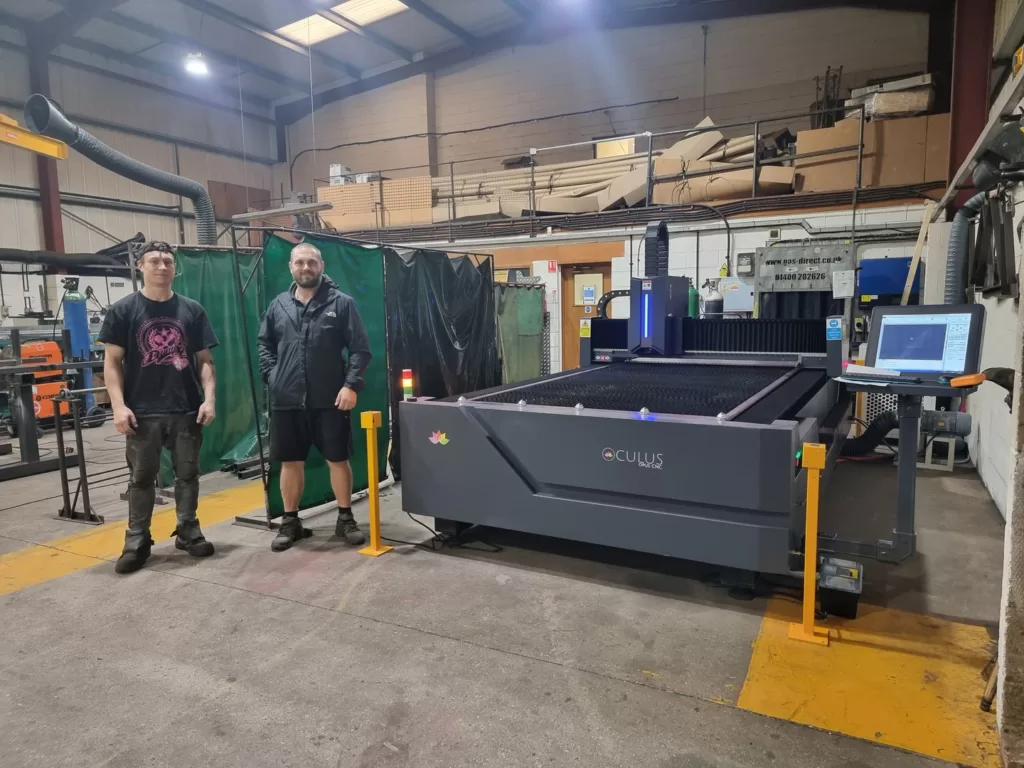

Oculus Fibre Gallery
Check out our most recent Oculus Fibre Laser installations!
Trusted By
