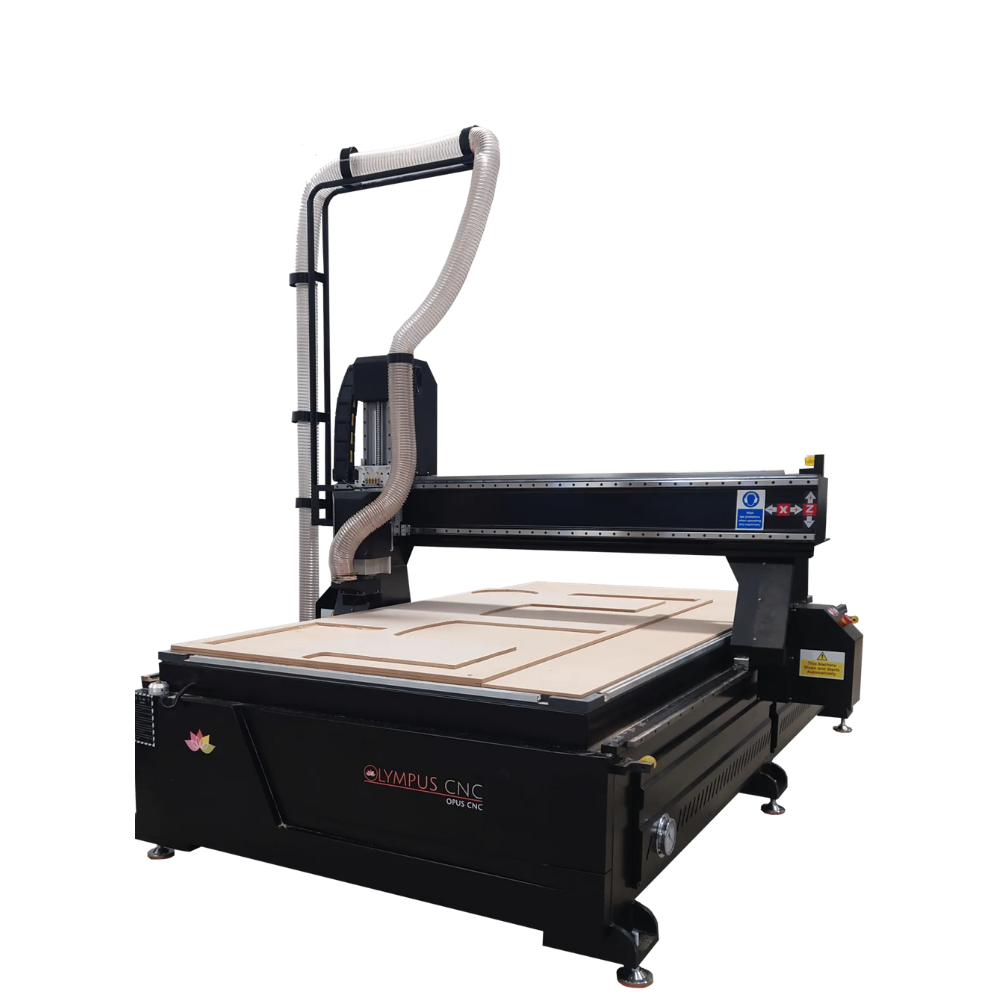

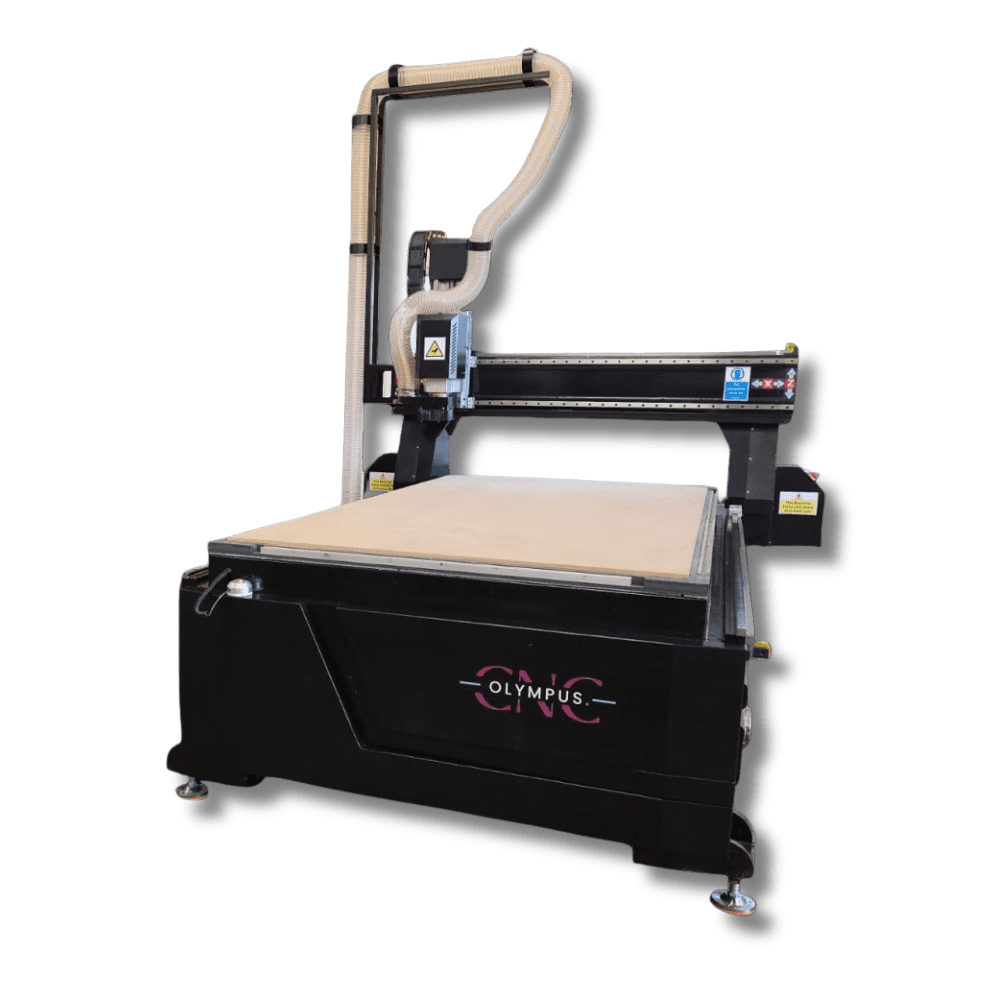

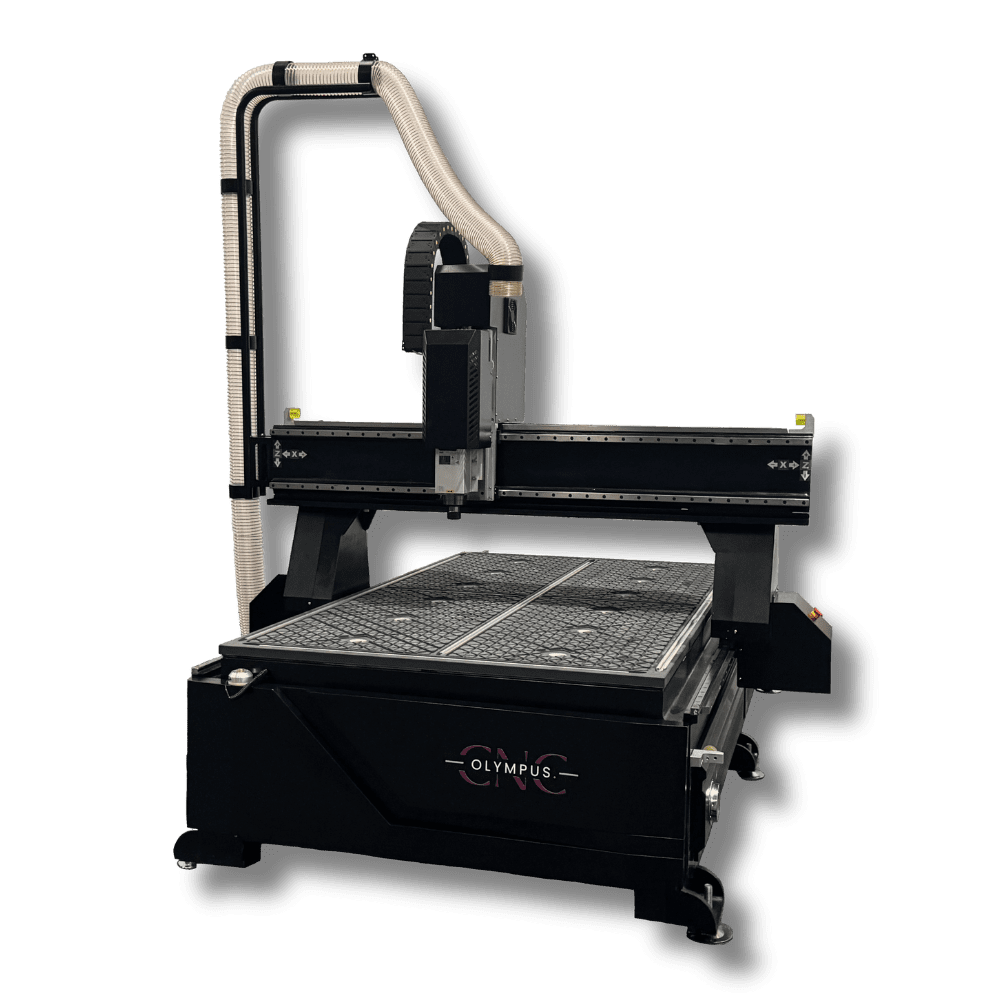

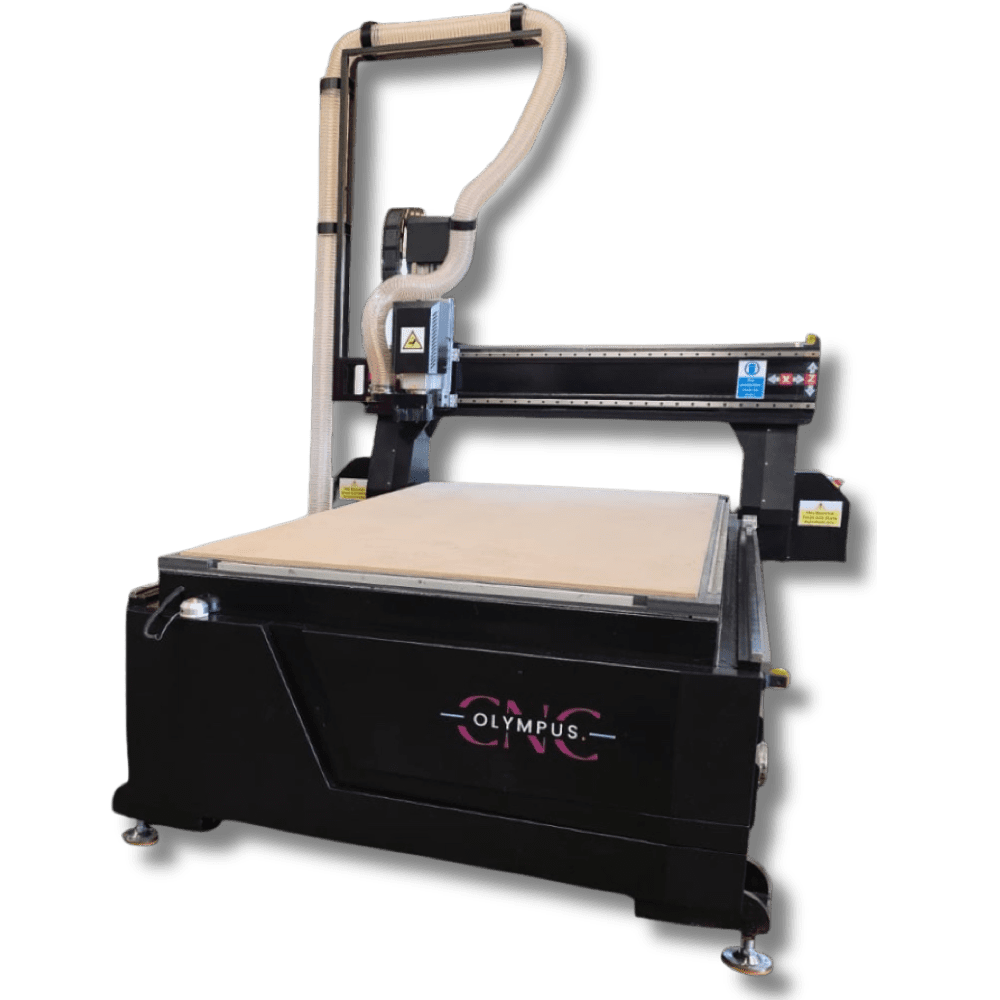

OLYMPUS
CNC ROUTER
Professional Manual Tool Change CNC Router
An affordable, easy-to-use manual tool change CNC router ideal for many industries looking to introduce CNC routing without breaking the bank.
Weighing in at over 2 tons, anything less would be a hobbyist CNC machine.
The Olympus CNC router is available with standard bed sizes or can be manufactured to your requirements.
Why do our customers choose the Olympus CNC machine? Our customers purchase this industrial CNC router due to its price, reliability, and user-friendliness.

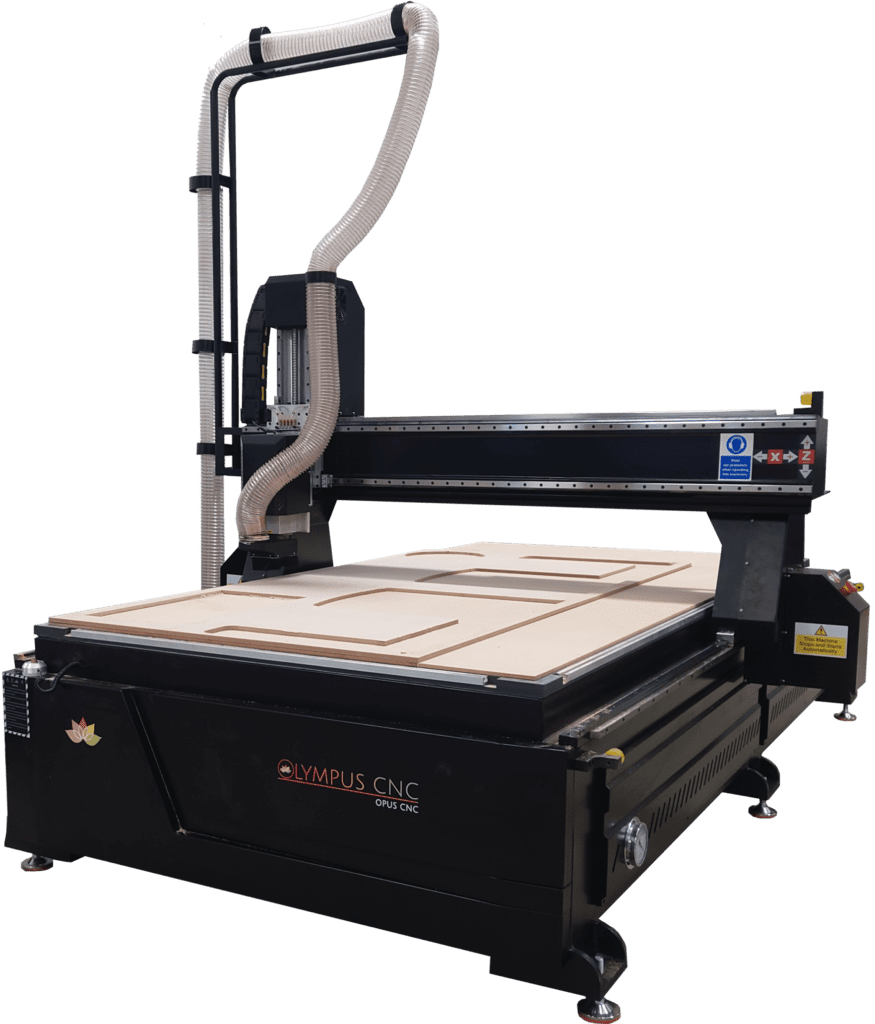

OLYMPUS
CNC ROUTER
Professional Manual Tool Change CNC Router
An affordable, easy-to-use manual tool change CNC router ideal for many industries looking to introduce CNC routing without breaking the bank.
Weighing in at over 2 tons, anything less would be a hobbyist CNC machine.
The Olympus CNC router is available with standard bed sizes or can be manufactured to your requirements.
Why do our customers choose the Olympus CNC machine? Our customers purchase this industrial CNC router due to its price, reliability, and user-friendliness.
OLYMPUS
CNC ROUTER
Professional Manual Tool Change CNC Router
An affordable, easy-to-use manual tool change CNC router ideal for many industries looking to introduce CNC routing without breaking the bank.
Weighing in at over 2 tons, anything less would be a hobbyist CNC machine.
The Olympus CNC router is available with standard bed sizes or can be manufactured to your requirements.
Why do our customers choose the Olympus CNC machine? Our customers purchase this industrial CNC router due to its price, reliability, and user-friendliness.
Overview
Manual Tool Change
Tool changes can be completed in under a minute. The Olympus manual tool change CNC is perfect for users who do not require multiple tool changes within one job.
Drives & Motors
Stepper drives and motors on the Olympus offer high precision, high torque (at low speeds), high reliability, and low power consumption.
6kW Air-cooled Spindle
The Olympus CNC comes with a 6kW air-cooled spindle. The air-cooled spindle offers improved performance compared to a water-cooled spindle.
3.0kW Extraction System
All Olympus CNC routers come equipped with a 3.0 kW extraction system. An Opus engineer will hard-wire the extraction system on installation.
Dual-Stage Vacuums
We include up to 4 x 7.5 kW dual-stage, 3-phase vacuum pumps as standard on all Olympus CNC routers.
Easy-to-use
The simple A11 DSP controller is ideal for those with no previous experience of CNC routers.
Unique Matrix Bed
Designed by Opus CNC, the enhanced zoned bed gives full suction throughout, unlike standard CNC machines.
Separate Control Box
The control box for all Olympus CNC machines is kept separate from the machine itself. Why? Integrated control boxes pose risks such as component failure due to excessive debris contamination.
Warranty
We provide a complete 2-year parts and labour warranty with all Olympus CNC machines. This extensive warranty reflects our strong confidence in the durability and quality of our Olympus CNCs.
Delivery
Depending on the size, your Olympus CNC router will be delivered by a curtain-side lorry, which will require a forklift. Alternatively, delivery can be made by a HIAB with a crane.
Installation
One of the Opus engineers will complete the installation. All Opus engineers are experienced and go through rigorous in-house training programs throughout their Opus careers.
Training
Machine and software training is fully inclusive with the Olympus CNC and is divided into three sections: machine operation, software, and safety. We customise all training to match individual capabilities.
Models
Olympus 1313
CNC Router
Working Area: 1300 x 1300mm
Dimensions: W2222 x L2020
6kW Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW
DSP A11 Control System
Stepper Motors & Drives
3.0kW Extraction System
Weight 1,900kg
Olympus 1325
CNC Router
Working Area: 1300 x 2500mm
Dimensions: W2222 x L3220
6kW Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW
DSP A11 Control System
Stepper Motors & Drives
3.0kW Extraction System
Weight 2,100kg
Olympus 1530
CNC Router
Working Area: 1525 x 3050mm
Dimensions: W2422 x L3720
6kW Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 7.5kW
DSP A11 Control System
Stepper Motors & Drives
3.0kW Extraction System
Weight 2,200kg
Olympus 2030
CNC Router
Working Area: 2100 x 3050mm
Dimensions: W2892 x L3720
6kW Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW x 2
DSP A11 Control System
Stepper Motors & Drives
3.0kW Extraction System
Weight 2,300kg
Olympus 2040
CNC Router
Working Area: 2000 x 4000mm
Dimensions: W2892 x L4720
6kW Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW x 2
DSP A11 Control System
Stepper Motors & Drives
3.0kW Extraction System
Weight 2,400kg
Olympus 2060
CNC Router
Working Area: 2000 x 6000mm
Dimensions: W2892 x L6720
6kW Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW x 2
DSP A11 Control System
Stepper Motors & Drives
3.0kW Extraction System
Weight 2,600kg
Request A Quotation
Want to join our long list of satisfied customers? Then, fill in the form below to receive a no-obligation quotation from one of our experienced engineers.
Don’t worry, we won’t hassle any potential customers! All the Opus team are engineers, not salespeople!
Want to join our long list of satisfied customers? Then, fill in the form below to receive a no-obligation quotation from one of our experienced engineers.
Don’t worry, we won’t hassle any potential customers! All the Opus team are engineers, not salespeople!
Queries & Answers
Is Opus a UK company?
Yes, we are based in the North East of England, and we have an extensive team of engineers who work throughout the UK, including one based in Northern Ireland.
What software is supplied?
VCarve Pro software is supplied as standard with all Olympus CNC machines. VCarve Pro can be upgraded to Aspire for all 3D machining needs.
We are proud partners of Cadspec, which specialises in various suitable CNC software, including Fusion 360 and Autodesk.Â
We can also supply post-processors for Fusion 360 and Rhinocam if required.
Is training included?
Indeed, with a proven track record of transforming individuals into experts, our engineers are a beacon of excellence in CNC technology and skill development. As part of our service, you will receive machine training, safety management and VCarve Pro software training. Our engineers adeptly customise their training approach to align perfectly with your requirements and proficiencies!
Additionally, all Opus engineers are fully trained in Fusion 360 and can supply training in place of VCarve when necessary.
Is tooling supplied?
Understanding that each customer has unique tooling requirements, our provision of tooling is primarily geared towards the training process only. Nevertheless, we work in partnership with the established tooling supplier, LMT Tools, and can assist you with all your tooling needs.Â
Do I need 3-phase electric supply?
Olympus CNC routers come equipped with a 3-phase connectivity setup. We can, however, produce the Olympus CNC machine with a single-phase configuration. It is worth noting that modifying to single-phase will entail replacing specific components with single-phase counterparts, such as the spindle, vacuum pumps, inverter, and extraction system.
What bed sizes are available?
We offer the following standard sizes: 1300x1300mm, 1300x2500mm, 1525x3050mm, 2100x3050mm, 2000x4000mm and 2000x6000mm. We also manufacture bespoke-sized Olympus CNC routers. Please ask one of the team if you need a bed size which isn’t mentioned above.
SPREAD THE COST
We understand the vital importance of cash flow, which is why we work with leading asset finance provider Anglo Scottish Asset Finance, offering competitive business finance across the UK.

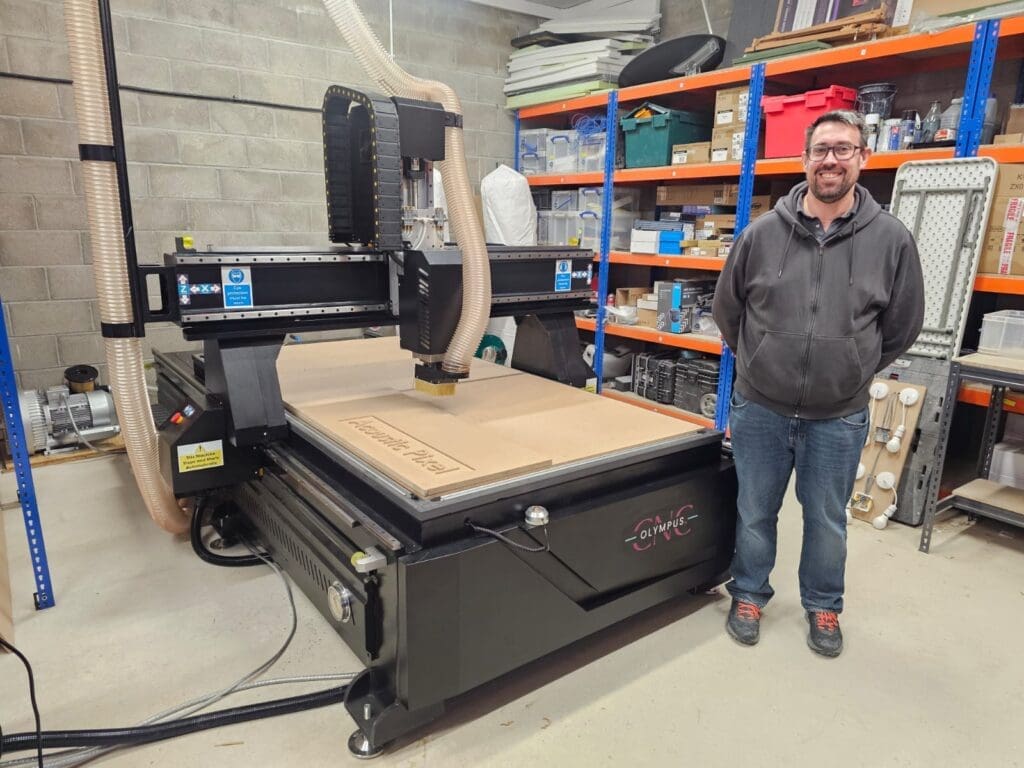

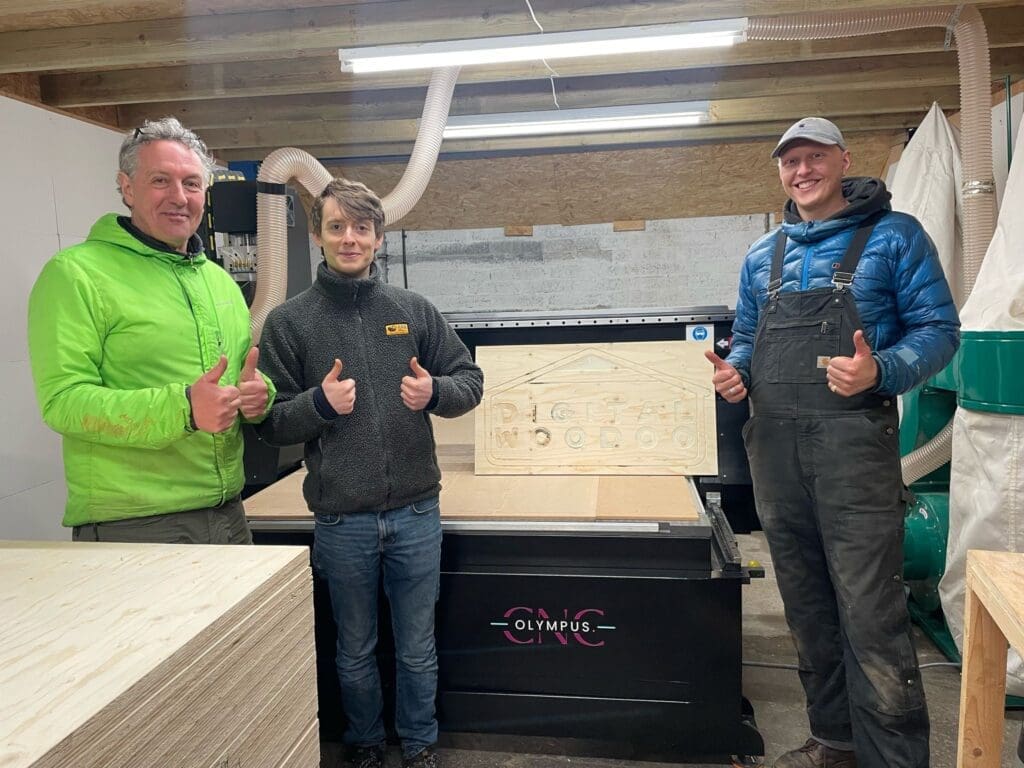

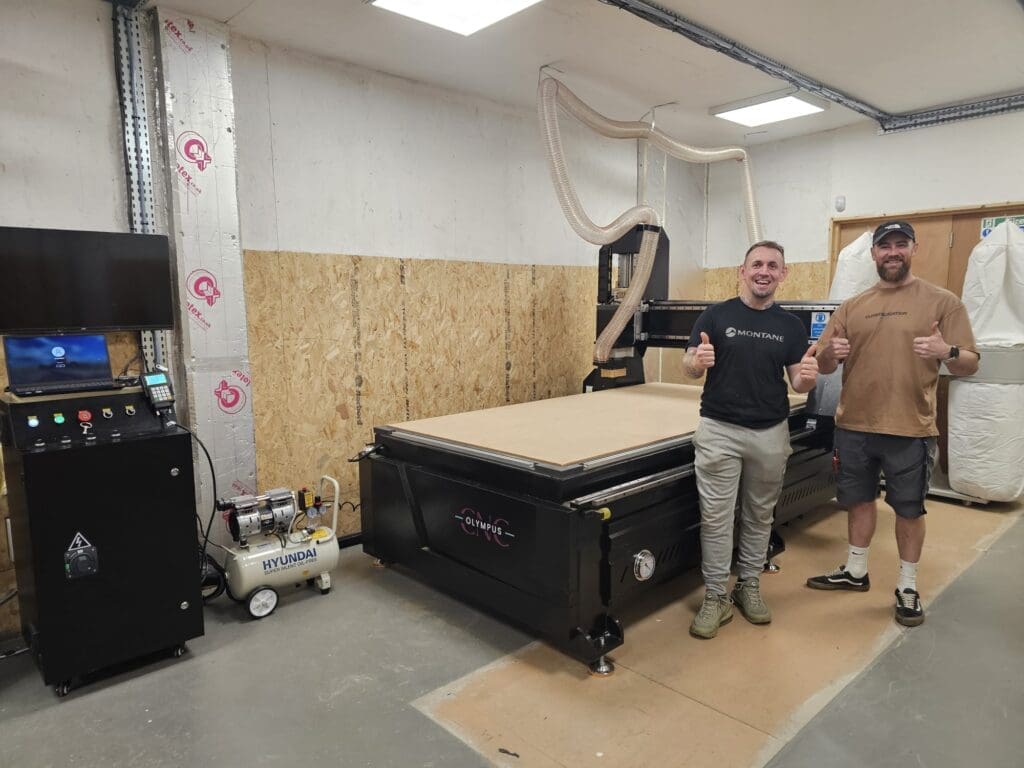

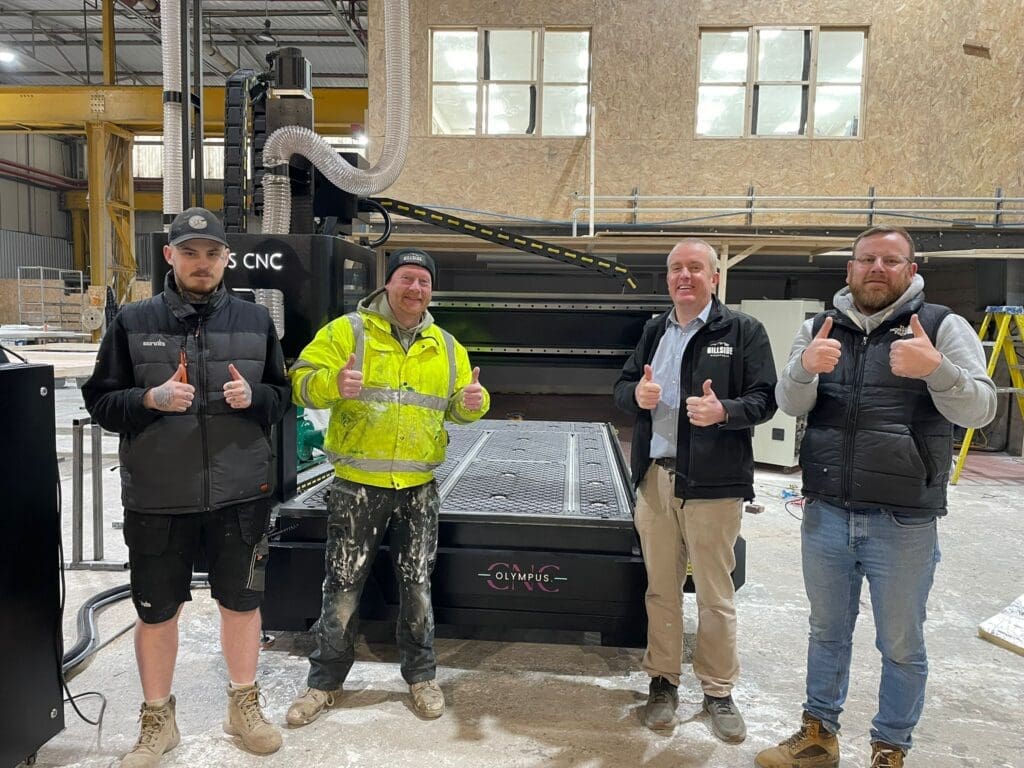

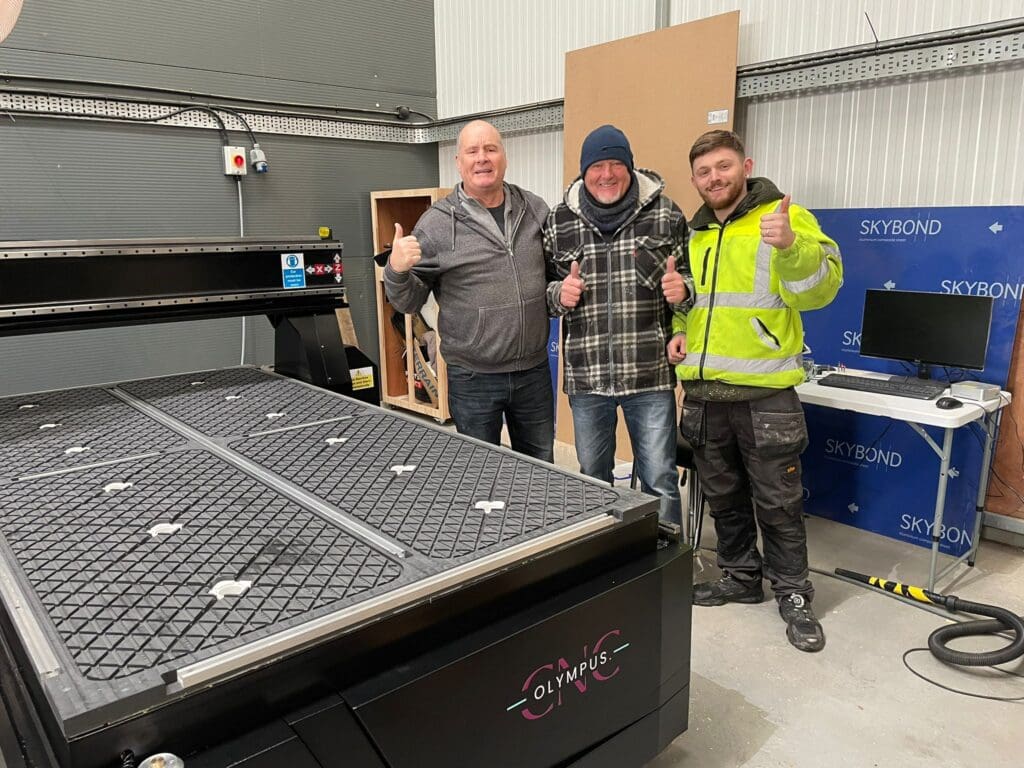

OLYMPUS GALLERY

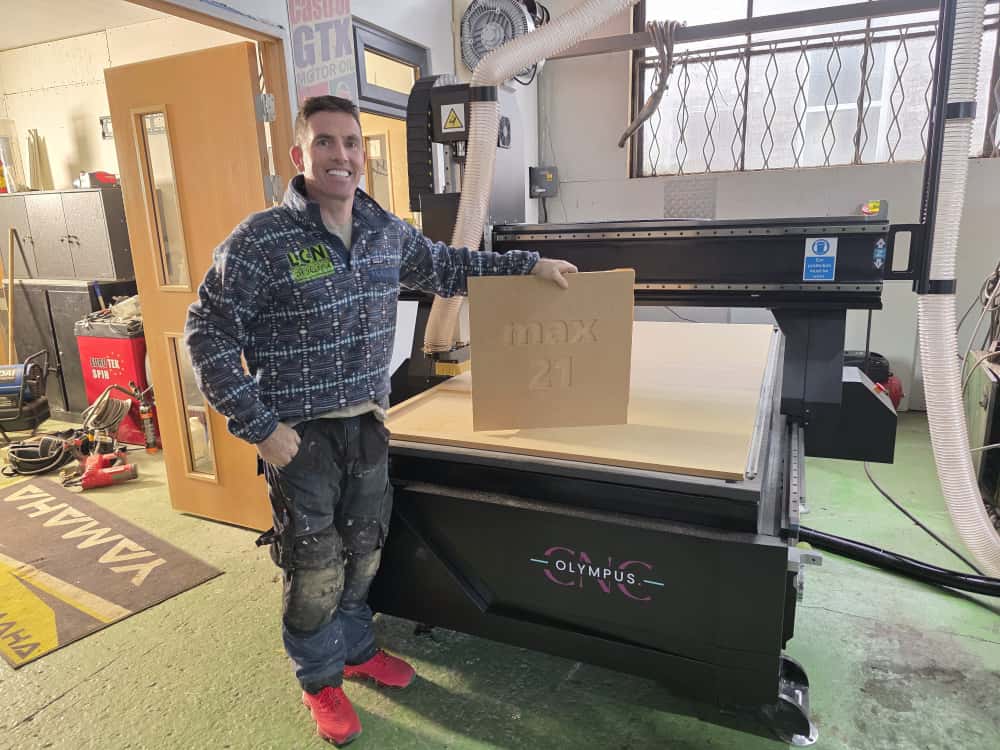

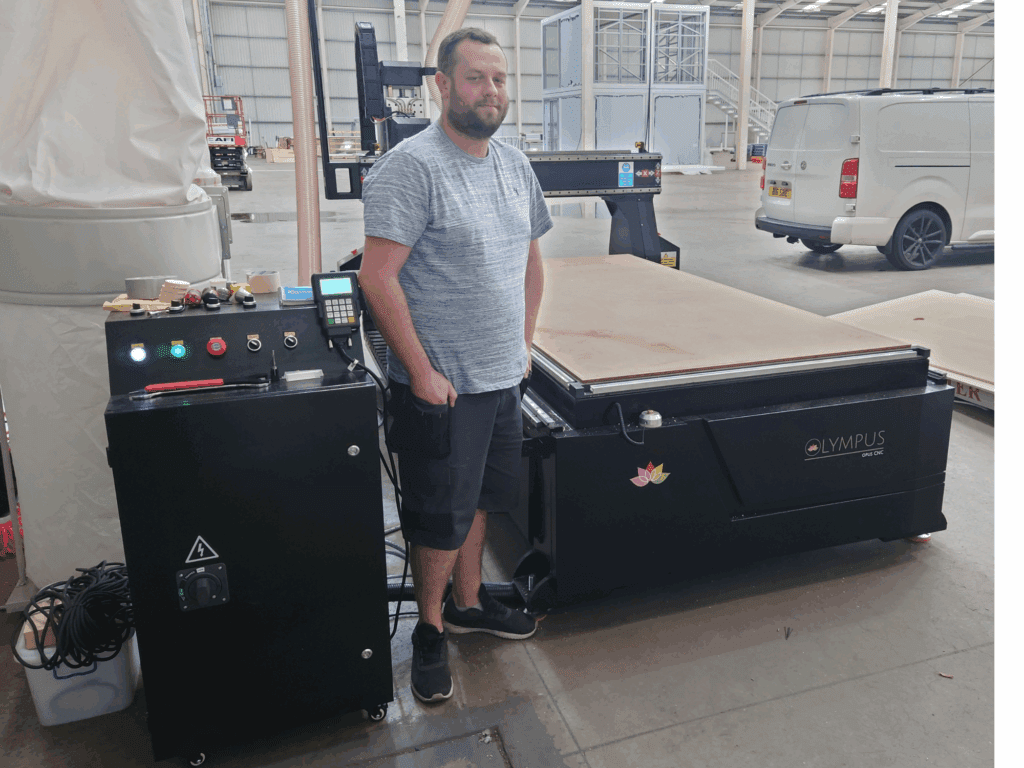

Check out our most recent Olympus CNC Router installations!
RELATED MODELS

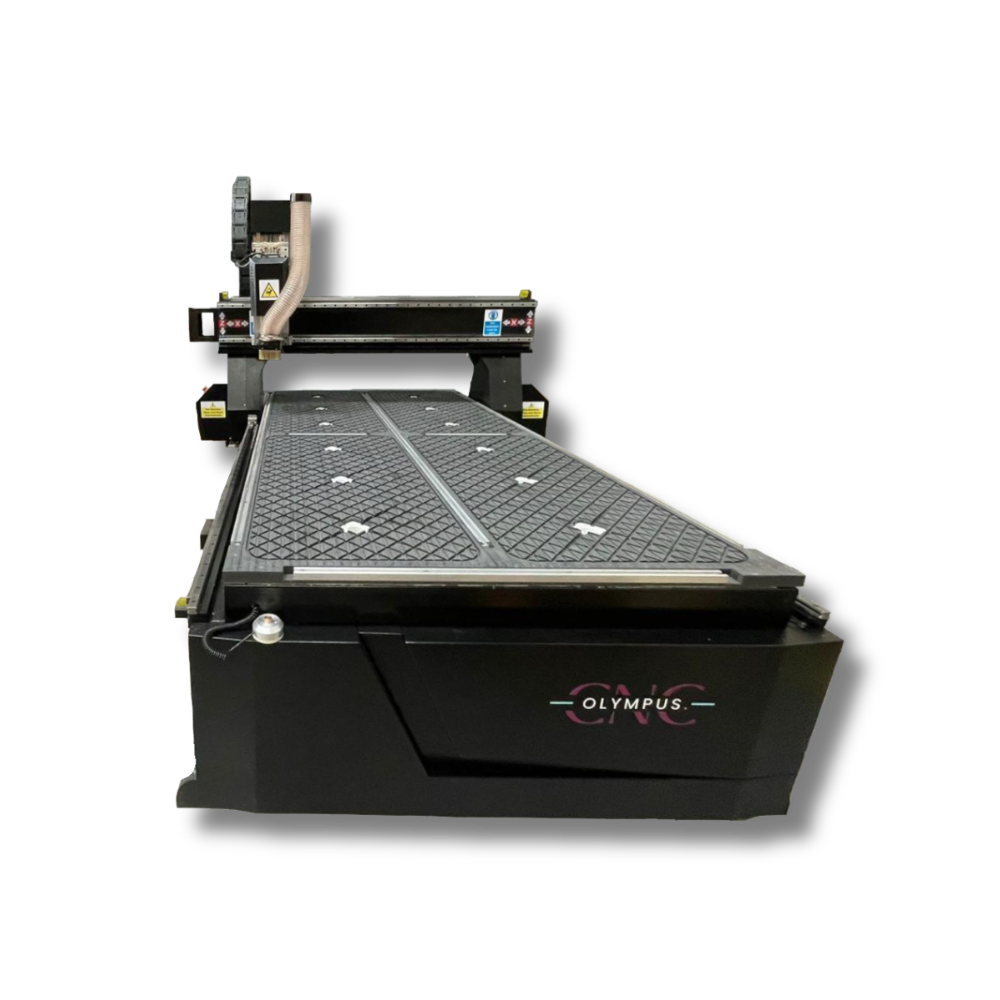

Olympus PRO
CNC Router
Tool Change Type: Manual Tool Change – Can be upgraded to automatic tool change
Spindle: 9kW HQD Air-cooled Quick-release Spindle
Drives: Delta Servo Drives
Motors: Delta Servo Motors
Control System: Opus PROÂ
Locating Pins: Included
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 5.5kW Extraction System Included
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training: Machine and Software Training Included
Upgrades Available: PC Control System
Prices from £15,495 plus VAT
Olympus ATC
CNC Router
Tool Change Type: Linear – Automatic Tool Change with 8 ISO 30 Chucks
Spindle: 9kW HQD Air-cooled Quick-release Spindle
Drives: Delta Servo Drives
Motors: Delta Servo Motors
Control System: Opus PROÂ
Locating Pins: Included
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 5.5kW Extraction System Included
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training: Machine and Software Training Included
Upgrades Available: PC Control System
Prices from £16,995 plus VAT
Pegasus ATC
CNC Router
Tool Change Type: Carousel – Automatic Tool Change with 12 ISO 30 Chucks
Spindle: 9kW Italian HSD Spindle
Drives: Yaksawa Servo Drives
Motors: Yaskawa Servo Motors
Control System: Syntec Control System
Locating Pins: Included
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 7.5kW Extraction System Included
Extras: Bearing Wipers
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training:Â Included
Prices from £25,000 plus VAT
