OLYMPUS PRO
CNC ROUTER
Upgradeable Manual Tool Change CNC Router

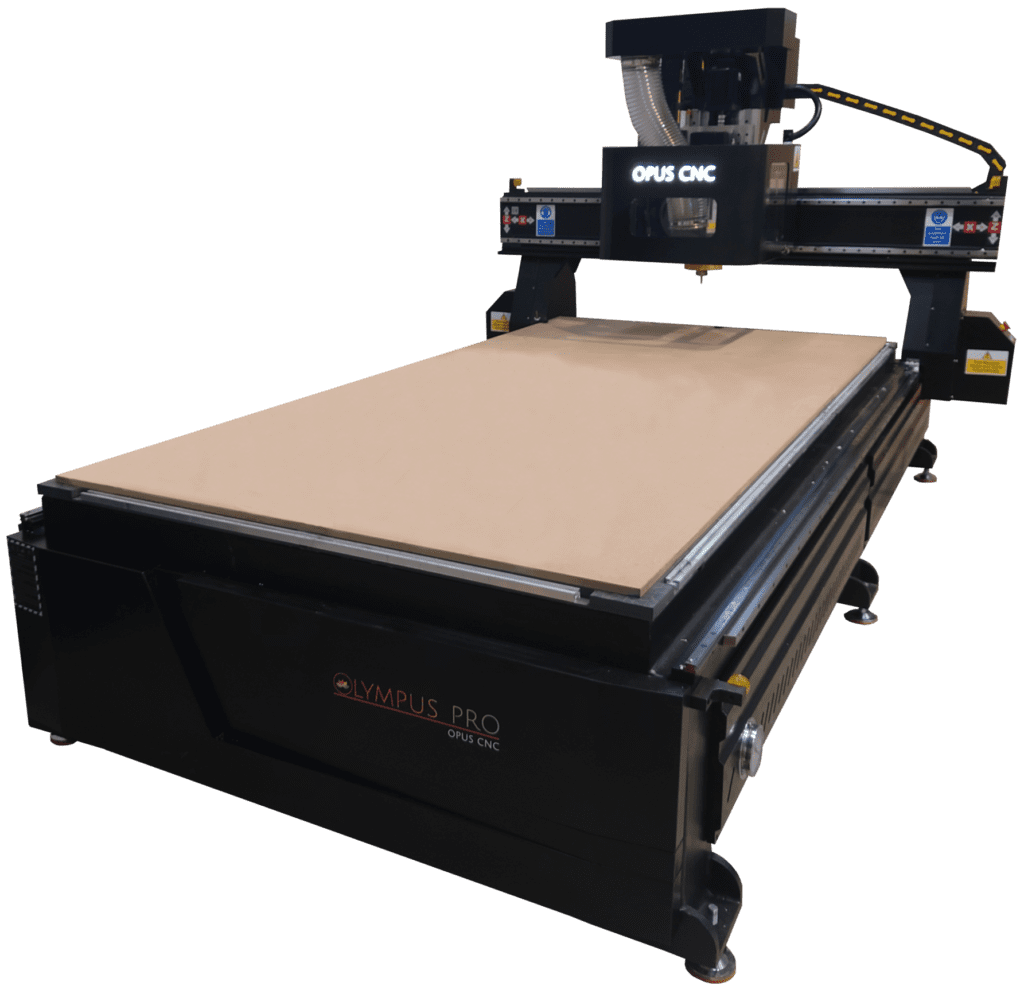

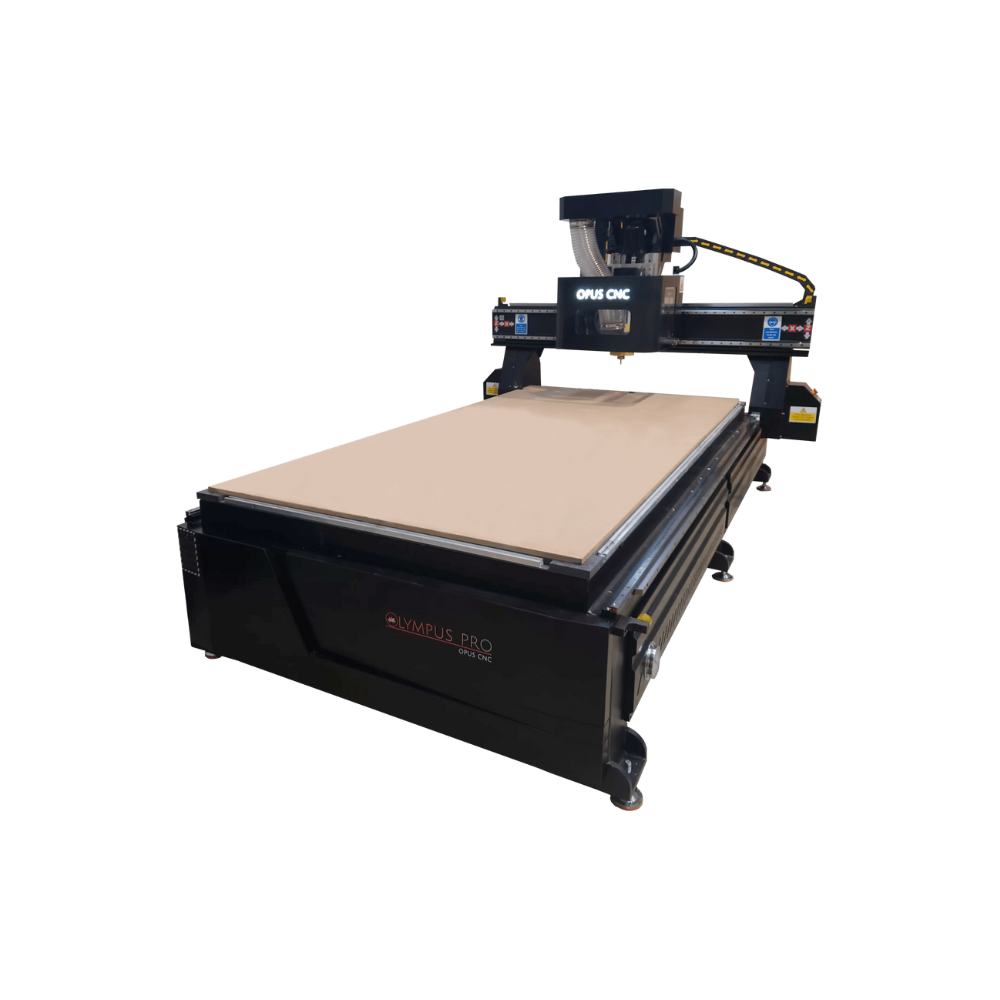

The Olympus PRO CNC router is a step-up from the Olympus CNC model.
It is a powerful manual tool change CNC machine, featuring a 9kW quick-release spindle, servo motors, and drives. Additionally, it offers the option to add the automatic tool change function when needed.
Why choose the Olympus PRO? The Olympus PRO CNC router is ideal for those seeking a future-proof CNC machine that delivers precision and reliability.
Many industries, such as signage, campervan conversions and exhibition builders, are already using the Olympus PRO CNC machine.
OLYMPUS PRO
CNC ROUTER
Upgradeable Manual Tool Change CNC Router
The Olympus PRO CNC router is a step-up from the Olympus CNC model.
It is a powerful manual tool change CNC machine, featuring a 9kW quick-release spindle, servo motors, and drives. Additionally, it offers the option to add the automatic tool change function when needed.
Why choose the Olympus PRO? The Olympus PRO CNC router is ideal for those seeking a future-proof CNC machine that delivers precision and reliability.
Many industries, such as signage, campervan conversions and exhibition builders, are already using the Olympus PRO CNC machine.
OLYMPUS PRO
CNC ROUTER
Upgradeable Manual Tool Change CNC Router
The Olympus PRO CNC router is a step-up from the Olympus CNC model.
It is a powerful manual tool change CNC machine, featuring a 9kW quick-release spindle, servo motors, and drives. Additionally, it offers the option to add the automatic tool change function when needed.
Why choose the Olympus PRO? The Olympus PRO CNC router is ideal for those seeking a future-proof CNC machine that delivers precision and reliability.
Many industries, such as signage, campervan conversions and exhibition builders, are already using the Olympus PRO CNC machine.
OLYMPUS PRO
CNC ROUTER
Upgradeable Manual Tool Change CNC Router
The Olympus PRO CNC router is a step-up from the Olympus CNC model.
It is a powerful manual tool change CNC machine, featuring a 9kW quick-release spindle, servo motors, and drives. Additionally, it offers the option to add the automatic tool change function when needed.
Why choose the Olympus PRO? The Olympus PRO CNC router is ideal for those seeking a future-proof CNC machine that delivers precision and reliability.
Many industries, such as signage, campervan conversions and exhibition builders, are already using the Olympus PRO CNC machine.
OLYMPUS PROÂ KEY FEATURES
Overview
Manual Tool Change
Tool changes can be completed swiftly with the quick-release spindle. The Olympus PRO has the advantage of being upgradeable with the automatic tool change at a later date.Â
Servo Drives & Motors
Typically, servo motors can operate at higher speeds and are more efficient at translating movement due to their design. They offer smoother motion due to their design. This results in less vibration and smoother operation.
9kW Quick-release Spindle
With 9kW of power, the Olympus PRO spindle can handle heavy-duty cutting tasks with ease. This makes it suitable for machining tough materials, including soft metals, hardwoods, and composites.
5.5kW Extraction System
With 5.5kW of power, the extraction system can efficiently remove large volumes of dust, chips, and other particles from the cutting area. This is essential for maintaining a clean workspace and preventing material buildup around the tool and workpiece.
Dual Stage Vacuums
We include up to 4 x 7.5 kW dual-stage, 3-phase vacuum pumps as standard on all Olympus PRO CNC routers.

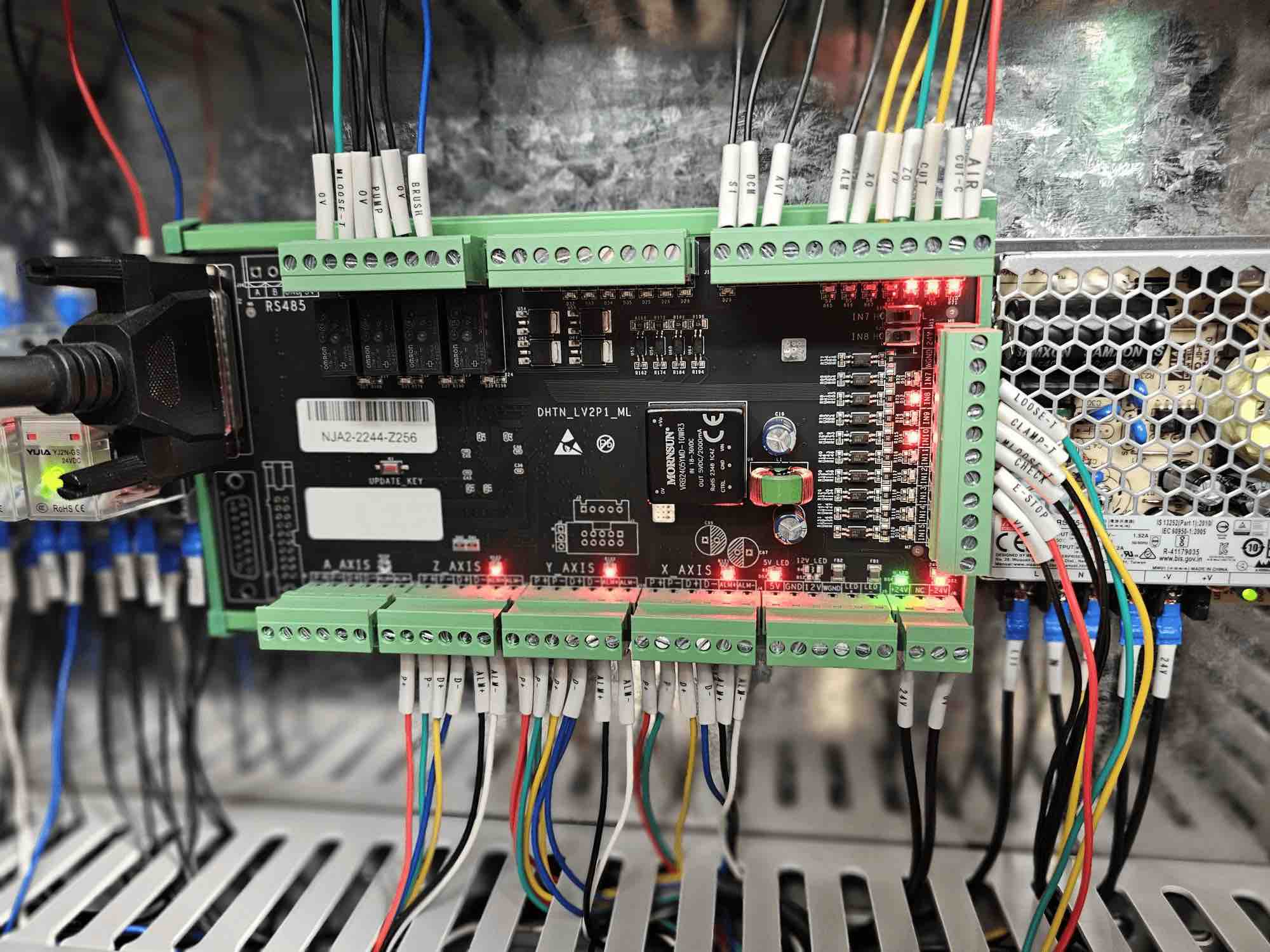

Opus PRO Control
The Opus PRO control system is feature-packed, yet remains easy-to-use. Experienced and novice users will feel confident using the Olympus PRO control system.
Material Locating Pins
The locating pins ensure your material is placed in the exact position on the bed every time, which improves the accuracy and repeatability of cuts. By quickly aligning the material to a fixed position, the locating pins reduce the time needed to position and adjust materials manually, speeding up the overall setup process.
Separate Control Box
The Olympus PRO control box is separate from the CNC machine, making it less susceptible to dust, debris, vibrations, and heat generated during machining. This minimises the risk of electrical component failure.
Warranty
We offer a 2-year complete parts and labour warranty with all Olympus PRO CNC machines. This extended warranty period demonstrates our greater confidence in the durability and quality of our Olympus PRO CNC.
Delivery
Depending on the size, your Olympus PRO CNC router will be delivered by a curtain-side lorry, which will require a forklift. Alternatively, delivery can be made by a HIAB with an offloading crane. Please note that a HIAB will automatically deliver all models with a bed width of more than 2m.
Installation
One of the Opus engineers will complete the installation. All Opus engineers are experienced and go through rigorous in-house training programs throughout their Opus careers.
Training
Machine and software training for the Olympus PRO CNC is fully inclusive and divided into three sections: machine operation, software, and safety. We customise all training to match individual capabilities.
Models
Olympus 1313 PRO
CNC Router
Working Area: 1300 x 1300mm
Dimensions: L2310L x W2222
9kW HQD Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW
Opus PRO Control System
Servo Motors & Drives
5.5kW Extraction System
Weight 2,200kg
Can be upgraded to an automatic tool change
Olympus 1325 PRO
CNC Router
Working Area: 1300 x 2500mm
Dimensions: L3410L x W2222
9kW HQD Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW
Opus PRO Control System
Servo Motors & Drives
5.5kW Extraction System
Weight 2,400kg
Can be upgraded to an automatic tool change
Olympus 1530 PRO
CNC Router
Working Area: 1525 x 3050mm
Dimensions: L3910L x W2422
9kW HQD Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 7.5kW
Opus PRO Control System
Servo Motors & Drives
5.5kW Extraction System
Weight 2,600kg
Can be upgraded to an automatic tool change
Olympus 2030 PRO
CNC Router
Working Area: 2100 x 3050mm
Dimensions: L3910L x W2892
9kW HQD Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW x 2
Opus PRO Control System
Servo Motors & Drives
5.5kW Extraction System
Weight 2,700kg
Can be upgraded to an automatic tool change
Olympus 2040 PRO
CNC Router
Working Area: 2000 x 4000mm
Dimensions: L4910L x W2892
9kW HQD Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW x 2
Opus PRO Control System
Servo Motors & Drives
5.5kW Extraction System
Weight 2,900kg
Can be upgraded to an automatic tool change
Olympus 2060 PRO
CNC Router
Working Area: 2000 x 6000mm
Dimensions: L6910Â x W2892
9kW HQD Air-Cooled Spindle
Manual Tool Change
Gantry Clearance: 300mm
Vacuum Pump: 5.5kW x 2
Opus PRO Control System
Servo Motors & Drives
5.5kW Extraction System
Weight 3,000kg
Can be upgraded to an automatic tool change
Want to see more?
Check Out The Olympus PRO CNC in Action Below!
Request A Quotation
Want to join our long list of satisfied customers? Then, fill in the form below to receive a no-obligation quotation from one of our experienced engineers.
Don’t worry, we won’t hassle any potential customers! All the Opus team are engineers, not salespeople!
Want to join our long list of satisfied customers? Then, fill in the form below to receive a no-obligation quotation from one of our experienced engineers.
Don’t worry, we won’t hassle any potential customers! All the Opus team are engineers, not salespeople!
Queries & Answers
Is Opus a UK company?
Yes, we are based in the North East of England, and we have an extensive team of engineers who work throughout the UK, including one based in Northern Ireland.
What software is supplied?
VCarve Pro software is supplied as standard with all Olympus PRO CNC machines. VCarve Pro can be upgraded to Aspire for all 3D machining needs.
We are proud partners of Cadspec, which specialises in various suitable CNC software, including Fusion 360 and Autodesk.Â
We can also supply post-processors for Fusion 360 and Rhinocam if required.
Is training included?
Indeed, with a proven track record of transforming individuals into experts, our engineers are a beacon of excellence in CNC technology and skill development. As part of our service, you will receive machine training, safety management and VCarve Pro software training. Our engineers adeptly customise their training approach to align perfectly with your requirements and proficiencies!
Additionally, all Opus engineers are fully trained in Fusion 360 and can supply training in place of VCarve when necessary.
Is tooling supplied?
Understanding that each customer has unique tooling requirements, our provision of tooling is primarily geared towards supporting the training process.
Nevertheless, we work in partnership with the established tooling supplier LMT Tools, and we can assist you with all your tooling needs.Â
Do I need 3-phase electric supply?
Olympus CNC PRO routers come equipped with a 3-phase connectivity setup. We can, however, produce the Olympus PRO CNC machine with a single-phase configuration. It is worth noting that modifying to single-phase will entail replacing specific components with single-phase counterparts, such as the spindle, vacuum pumps, inverter, and extraction system.
What bed sizes are available?
We offer the following standard sizes: 1300x1300mm, 1300x2500mm, 1525x3050mm, 2100x3050mm, 2000x4000mm and 2000x6000mm. We also manufacture bespoke-sized Olympus PRO CNC routers. Please ask one of the team if you need a bed size which isn’t mentioned above.
SPREAD THE COST
We understand the vital importance of cash flow, which is why we work with leading asset finance provider Anglo Scottish Asset Finance, offering competitive business finance across the UK.
RELATED MODELS
Olympus
CNC Router
Tool Change Type: Manual Tool Change
Can be Upgraded to an ATC: No
Spindle: 6kW Air-cooled Spindle
Drives: Stepper Drives
Motors: Stepper Motors
Control System: DSP Hand Controller
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 3.0kW Extraction System Included
Software Included: VCarve Pro
Delivery: Included
Installation: Machine and Software Training Included
Training: Included
Upgrades Available: PC Control System
Prices from £10,995 plus VAT
Olympus ATC
CNC Router
Tool Change Type: Linear 8 x ISO 30 Automatic Tool Change
Spindle: 9kW HQD Air-cooled Quick-release Spindle
Drives: Delta Servo Drives
Motors: Delta Servo Motors
Control System: Opus PRO Hand Controller
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 5.5kW Extraction System Included
Extras:Â Material Locating Pins
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training: Machine and Software Training Included
Upgrades Available: PC Control System
Prices from £16,995 plus VAT
Pegasus
CNC Router
Tool Change Type: Carousel 12 x ISO 30 Tools/Automatic Tool Change
Spindle: 9kW Italian HSD Spindle
Drives: Yaskawa Servo Drives
Motors: Yaskawa Servo Motors
Control: Syntec Control System
Bed: Vacuum Bed with Matrix Zones
Zones: Automatic On/Off Switches
Extraction: 7.5kW Extraction System Included
Extras: Material Locating Pins | Bearing Wipers
Software Included: VCarve Pro
Delivery: Included
Installation: Included
Training: Machine and Software Training Included
Prices from £25,000 plus VAT
